RH4936XWS1 02 – SECTION

Products

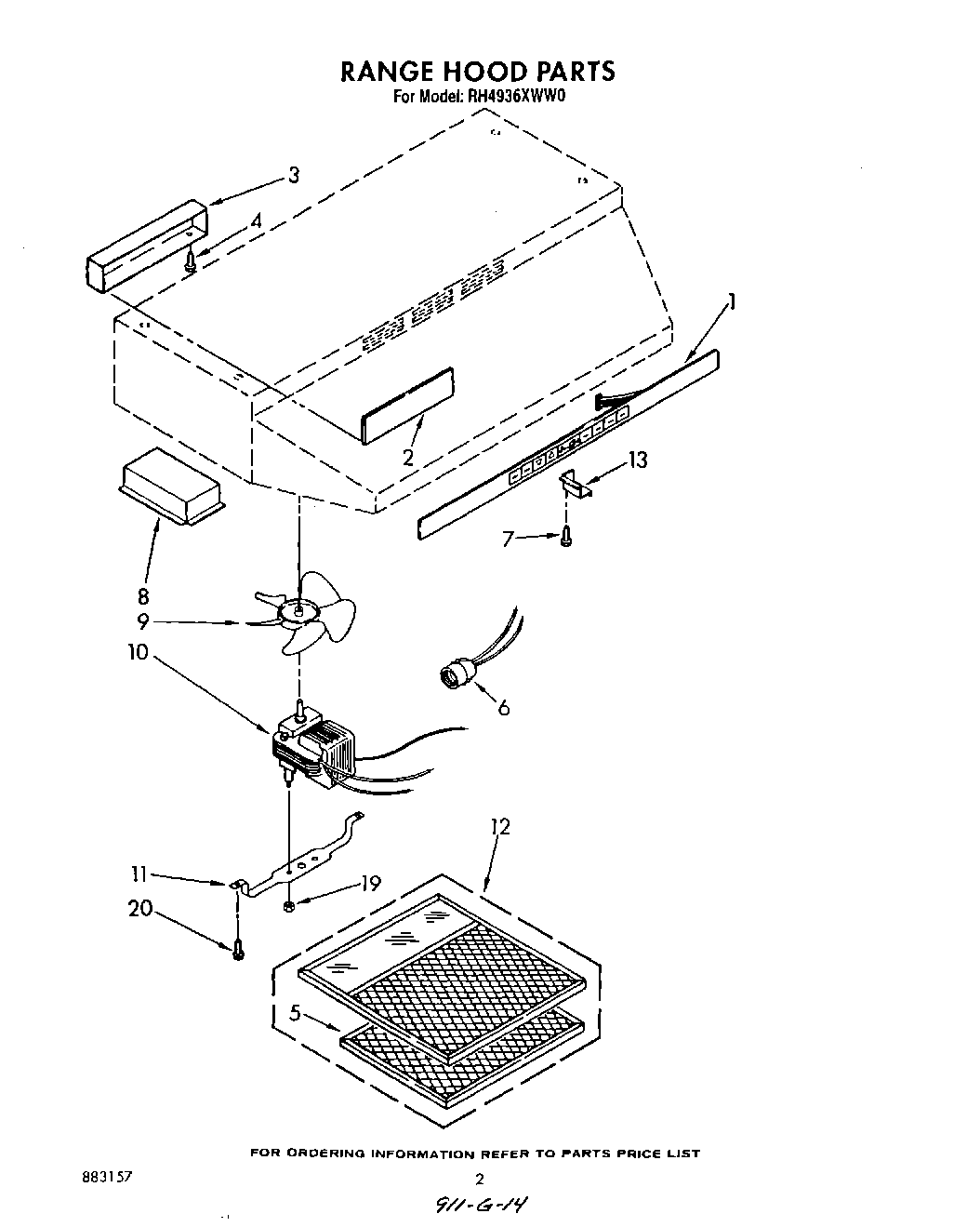

PositionProduct
Repair Parts List
Instructions Installation
Order Blank, Filter
1Switch Membrane
2Microcomputer
3Cover, (Stainless Microcomputer)
3Cover, Switch (Almond)
3Cover, Switch (White)
4WP486579 Whirlpool Air Conditioner Screw
5Pad, Charcoal (Replacement, Package Of 3)
6Receptacle, Light
7WP489069 Whirlpool Compactor Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, Wiring (Stainless Steel)
13Cover, wiring (White)
13Cover, Wiring (Almond)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
