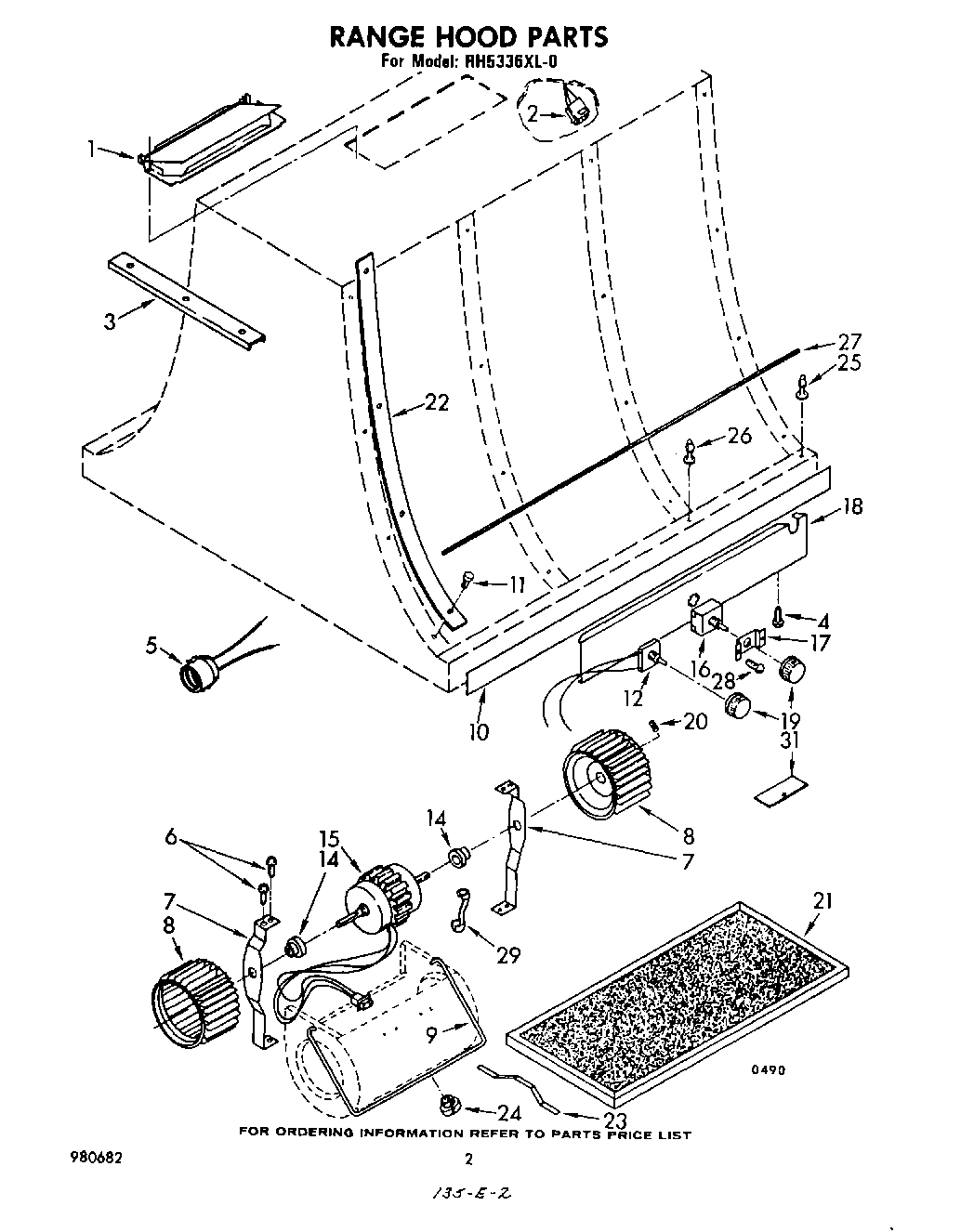

RH5336XL0 02 – SECTION

Products

PositionProduct
1Damper
2Receptacle, Motor Wire
3Bracket, Mounting (2)
3Washer
3Screw, 10 x 3/4 (6)
4Screw, 8 x 1/2 (4)
5Receptacle, Light
6WP90767 Whirlpool Screw
7Motor Bracket (2)
8Blower Wheel, R.S. (Includes Illus. 20)
8Vent Cover, Ductless
9Rod, Retaining
10Nameplate, Whirlpool (2)
11Rivet (40)
12Switch, Light (Includes 98754 Hex Nut)
14Motor Mount, Rubber (2)
15Motor, Blower
16Switch, Fan Motor
17Bracket, Switch
18Cover, Wiring Box
19Knob, Control (2)
20Setscrew
21Filter, Aluminum
22Trim, Stainless Steel (8)
23Spring, Filter
24Bushing, Split
25Post, Corner (4)
26Post, Through (4)
26Screw, 8-32 x 3/8 (8)
27Rod, Trim (2)
28WP489069 Whirlpool Compactor Screw
29Bushing
31List, Parts
31Plate, Switch Cover
31Instructions, Installation & Operating
31WPW10339879 Whirlpool Wire Tie
