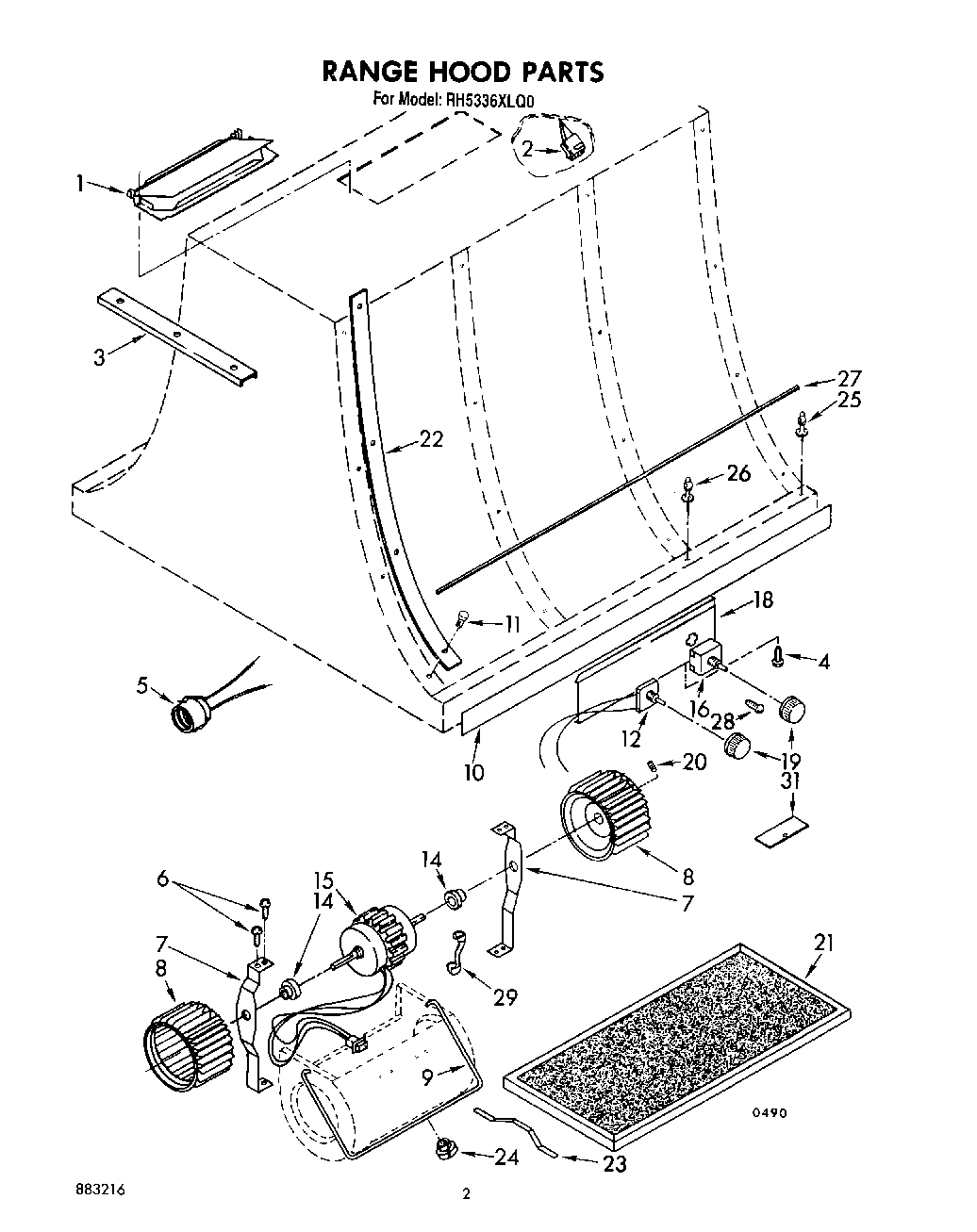

RH5336XLQ0 02 – SECTION

Products

Position	Product
1	Damper
2	Receptacle, Motor Wire
3	Washer
3	Screw, 10 x 3/4 (6)
3	Bracket, Mounting (2)
4	Screw, 8 x 1/2 (4)
5	Receptacle, Light
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Vent Cover, Ductless
8	Blower Wheel, R.S. (Includes Illus. 20)
9	Rod, Retaining
10	Nameplate (2) (White Model)
11	Rivet (40) (White Model)
12	Switch, Light (Includes 98754 Hex Nut)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
18	Cover, Wiring Box
19	Knob, Control (2)
20	Setscrew
21	Filter, Aluminum
22	Trim, Stainless Steel (8)
23	Spring, Filter
24	Bushing, Split
25	Post, Corner (4)
26	Post, Through (4)
26	Screw, 8-32 x 3/8 (8)
27	Rod, Trim (2)
28	WP489069 Whirlpool Compactor Screw
29	Bushing
31	Plate, Switch Cover
31	Instructions, Installation & Operating
31	WPW10339879 Whirlpool Wire Tie
31	Repair Parts List
