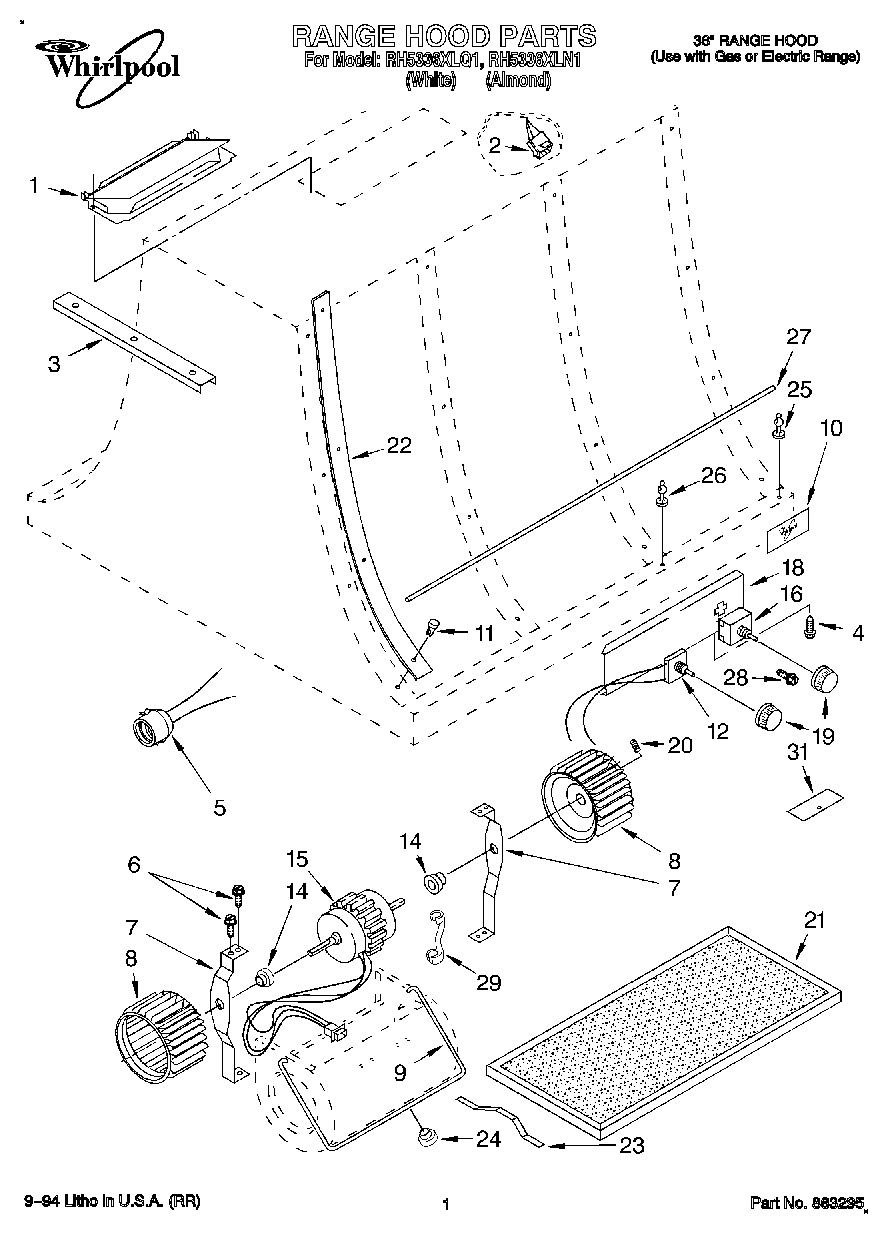

RH5336XLQ1 01 – SECTION

Products

Position	Product
1	Damper
2	Receptacle & Wires (Motor to Switches)
3	Screw, 10 x 3/4 (6)
3	Bracket, Mounting (2)
3	Washer
4	Screw, 8 x 1/2 (4)
5	Receptacle, Light
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Blower Wheel, R.S. (Includes Illus. 20)
8	Vent Cover, Ductless
9	Rod, Retaining
10	Nameplate (2) (White Model)
10	Nameplate, Whirlpool (2)
11	Rivet (40) (White Model)
11	Rivet (40)
12	Switch, Light (Includes 98754 Hex Nut)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
18	Cover, Wiring Box
19	Knob, Control (2)
19	Knob, Control (2) (Almond Model)
20	Setscrew
21	Filter, Aluminum
22	Trim, Stainless Steel (8)
23	Spring, Filter
24	Bushing, Split
25	Post, Corner (4)
26	Post, Through (4)
26	Screw, 8-32 x 3/8 (8)
27	Rod, Trim (2)
28	WP489069 Whirlpool Compactor Screw
29	Bushing
31	Plate, Switch Cover
31	Instructions, Installation & Operating
31	RANGE ONLY 40W 120V APPL BULB
31	WPW10339879 Whirlpool Wire Tie
