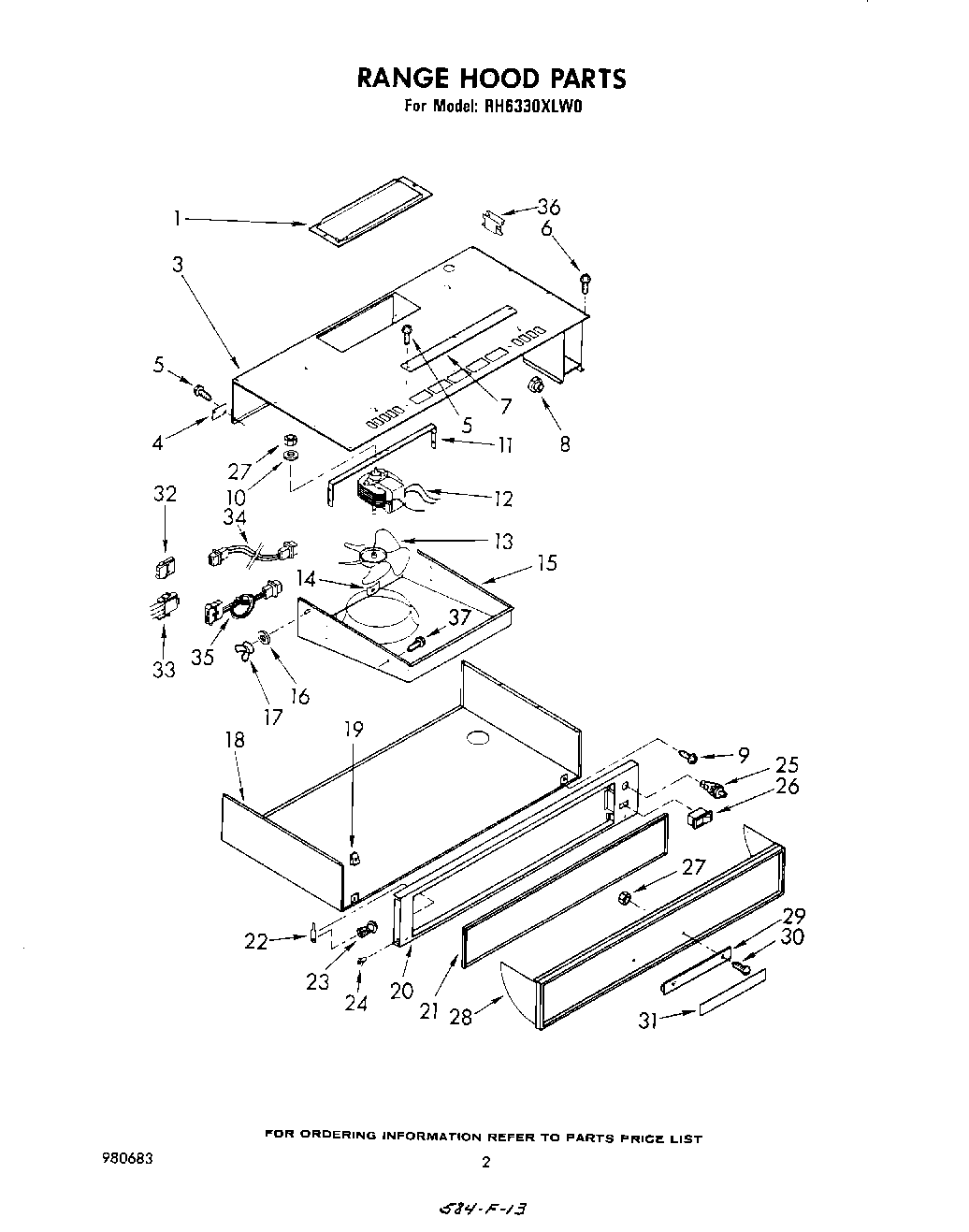

| Repair Parts List |
| Instructions, Installation & Operating |
| Order Blank, Filter |
| 1 | Damper Assembly |
| 3 | Top Assembly (Not Serviceable) |
| 4 | Bracket, Hood Mounting |
| 5 | WP487353 Whirlpool Refrigerator Screw |
| 6 | WP489069 Whirlpool Compactor Screw |
| 7 | Vent Cover, Ductless |
| 8 | Bushing |
| 9 | Screw, 10-24 x 3/8 (2) |
| 10 | Washer, No. 8 (2) |
| 11 | Bracket, Motor Mounting |
| 12 | Motor, 2-Speed |
| 13 | Blade, Fan |
| 14 | Retainer (1) |
| 15 | Fan Box Assembly (Includes Illus. 11) |
| 16 | Washer |
| 17 | W10080180 Whirlpool Nut |
| 18 | Bottom Assembly (Toast) |
| 18 | Bottom Assembly (New Avocado) |
| 18 | Bottom Assembly (Coffee) |
| 18 | Bottom Assembly (Almond) |
| 18 | Bottom Assembly (Golden Harvest) |
| 18 | Bottom Assembly (White) |
| 18 | Receptacle, Light |
| 19 | Nut, Spring (10-24) |
| 20 | Front Assembly (Includes Illus. 22, 23 & 24) |
| 21 | Filter, Aluminum |
| 22 | Spring |
| 23 | Rivet, Nylon |
| 24 | Rivet, Pop (8) |
| 25 | Switch, Pushbutton |
| 26 | W10673703 Whirlpool Rocker Switch |
| 27 | WP486255 Whirlpool Air Conditioner Nut |
| 28 | Panel, Face (Includes Illus. 29) |
| 29 | Handle Assembly (Includes Illus. 27, 30 & 31) |
| 30 | Screw, 8-32 x 1/2 (4) |
| 31 | Nameplate, Whirlpool |
| 32 | Receptacle, Motor Wire |
| 33 | Plug Assembly |
| 34 | Dual Plug Assembly |
| 35 | Plug & Receptacle Assembly |
| 36 | Clip, ``U`` |
| 37 | Duct Kit (Model RCH6600) |
| 37 | WP965173 Whirlpool Dishwasher Screw |
