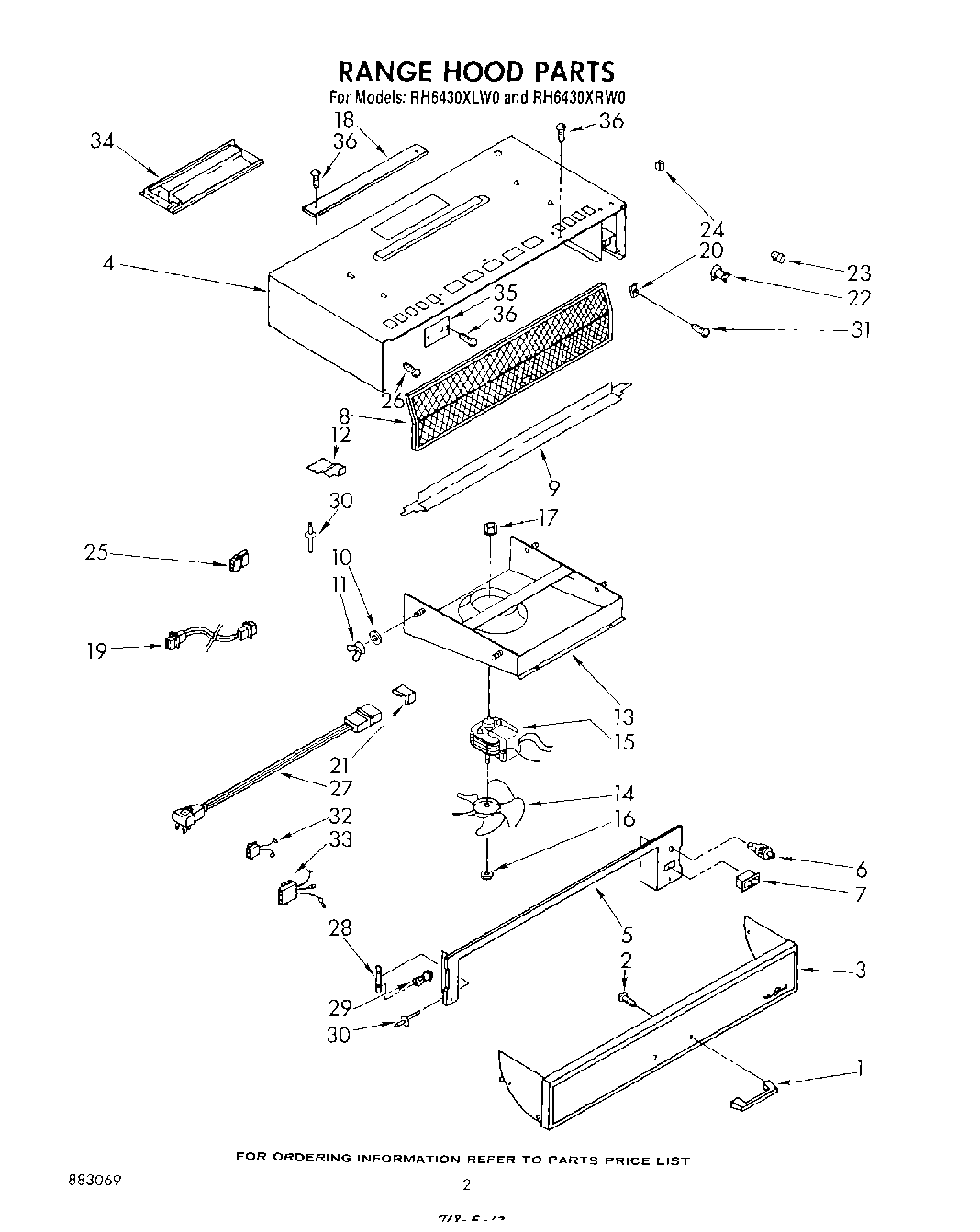

RH6430XLW0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation & Operating
	Order Blank, Filter
1	Handle Assembly (Includes Illus. 27, 30 & 31)
2	WP486579 Whirlpool Air Conditioner Screw
3	Panel, Face (Includes Illus. 29)
4	Top Assembly (Not Serviceable)
5	Front Assembly (Includes Illus. 28, 29 & 30)
6	Switch, Pushbutton
7	W10673703 Whirlpool Rocker Switch
8	Filter
9	Support, Filter
10	Washer
11	W10080180 Whirlpool Nut
12	Bracket, Front Support
13	Fan Box Assembly
14	Blade, Fan
15	Motor, 2-Speed
16	Retainer, 3/16
17	WP488130 Whirlpool Air Conditioner Nut
18	Vent Cover, Ductless
19	Dual Plug Assembly
20	Nut, Spring (10-24)
21	Clip, Wire Retaining (3)
22	Switch, Thermal
23	Bushing, Strain Relief
24	Clip, “U“
25	Receptacle, Motor Wire
26	Screw, Ground
27	Power Cord
28	Spring
29	Rivet, Nylon
30	Rivet, Pop (8)
31	Screw, Thumb 6-32 (2)
32	Receptacle Assembly
33	Receptacle Assembly
34	Damper Assembly
35	Cover, Wiring Box
36	WP489069 Whirlpool Compactor Screw
