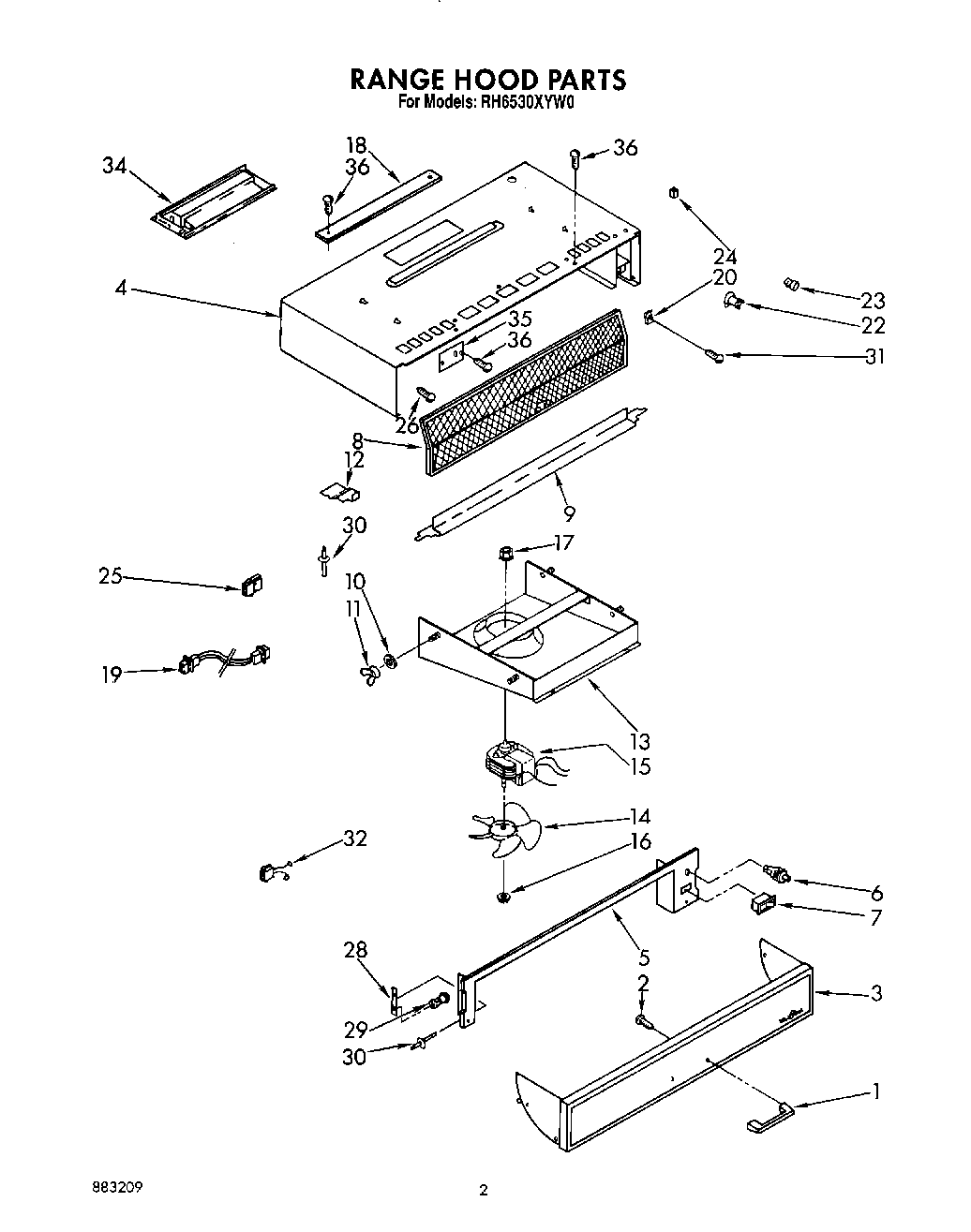

RH6530XYW0 02 – SECTION

Products

Position	Product
	Instructions, Installation & Operating
	Repair Parts List
	Order Blank, Filter
1	Handle Assembly (Includes Illus. 27, 30 & 31)
2	WP486579 Whirlpool Air Conditioner Screw
3	Panel, Face (Includes Illus. 1)
4	Top Assembly (Not Serviceable)
5	Front Assembly (Includes Illus. 28, 29 & 30)
6	Switch, Pushbutton
7	W10673703 Whirlpool Rocker Switch
8	Filter
9	Support, Filter
10	Washer
11	W10080180 Whirlpool Nut
12	Bracket, Front Support
13	Fan Box Assembly
14	Blade, Fan
15	Motor, 2-Speed
16	Retainer, 3/16
17	WP488130 Whirlpool Air Conditioner Nut
18	Vent Cover, Ductless
19	Dual Plug Assembly
20	Nut, Spring (10-24)
22	Switch, Thermal
23	Bushing, Strain Relief
24	Clip, “U“
25	Receptacle, Motor Wire
26	Screw, Ground
28	Spring
29	Rivet, Nylon
30	Rivet, Pop (8)
31	Screw, Thumb 6-32 (2)
32	Receptacle Assembly
34	Damper Assembly
35	Cover, Wiring Box
36	WP489069 Whirlpool Compactor Screw
36	Connector, Wire
36	Clip, `T` (4)
