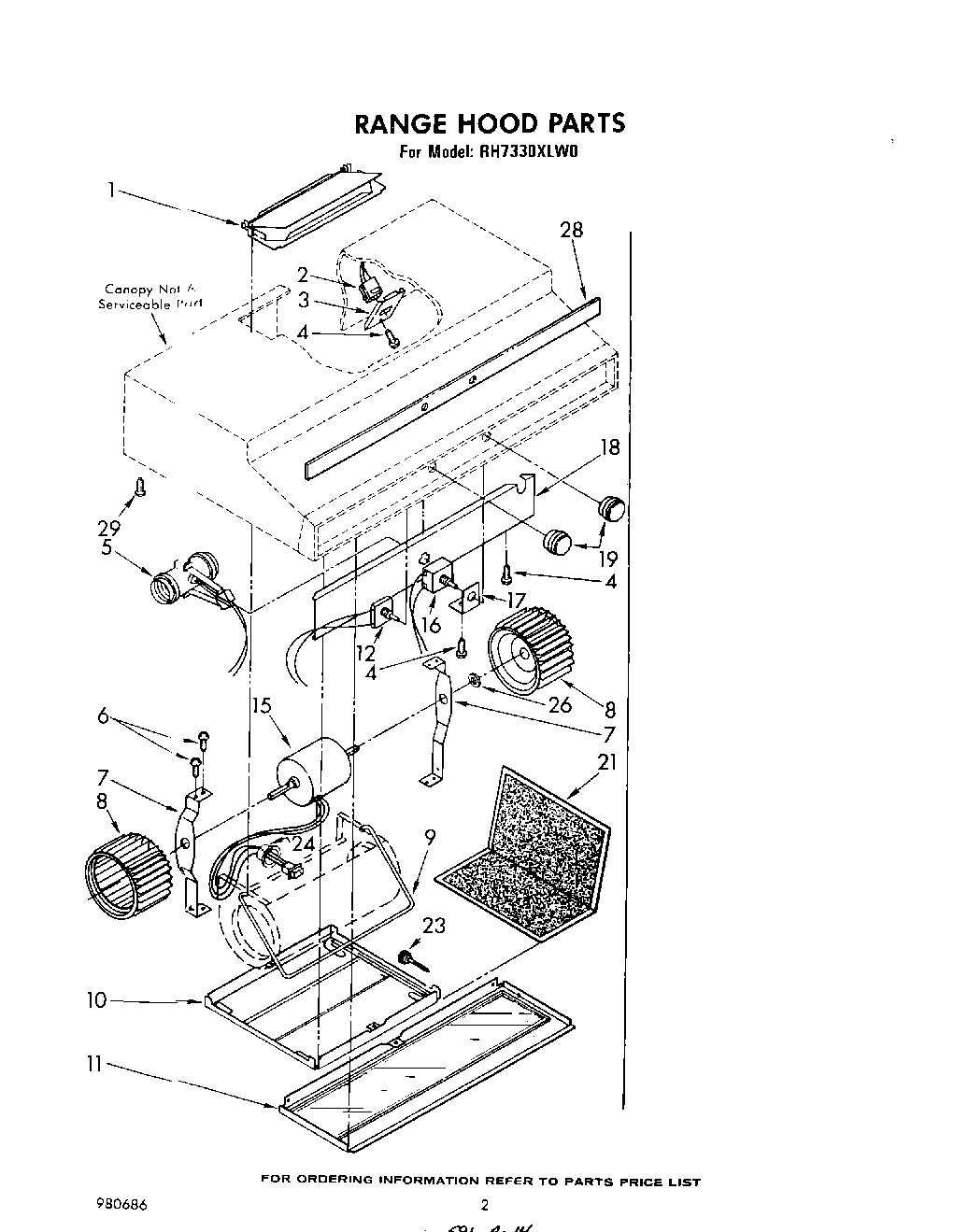

RH7330XLW0 02 – SECTION

Products

Position	Product
	WPL LIT980686
	WPL LIT830872
	Order Blank, Filter
1	Damper Assembly
2	Receptacle, Motor Wire
3	Cover, Switch Box
4	WP489069 Whirlpool Compactor Screw
5	Lampholder, Snap-In
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Blower Wheel, R.S.
8	Blower Wheel, L.S.
9	Rod, Retaining
10	Cover, Blower (Includes Illus. 23) (Platinum)
10	Cover, Blower (Includes Illus. 23) (Stainless Steel)
10	Cover, Blower (Includes Illus. 23) (Toast)
10	Cover, Blower (Includes Illus. 23) (Coffee)
10	Cover, Blower (Includes Illus. 23) (White)
10	Cover, Blower (Includes Illus. 23) (New Avocado)
10	Cover, Blower (Includes Illus. 23) (Almond)
10	Cover, Blower (Includes Illus. 23) (Golden Harvest)
11	Glass & Frame Assembly (Platinum)
11	Glass & Frame Assembly (Stainless Steel)
11	Glass & Frame Assembly (Toast)
11	Glass & Frame Assembly (New Avocado)
11	Glass & Frame Assembly (Golden Harvest)
11	Glass & Frame Assembly (Coffee)
11	Glass & Frame Assembly (Almond)
11	Glass & Frame Assembly (White)
12	Switch, Rotary (Light)
15	Motor, Blower
16	Switch, Fan Motor
17	Bracket, Speed Control
18	Cover, Wiring Box
19	Knob (2)
21	WP830865 Whirlpool Filter
23	Screw, Thumb (3)
24	Bushing, Split
26	Washer, No. 8 (2)
28	WPL 830898
29	Screw, 10-32 x 3/8
