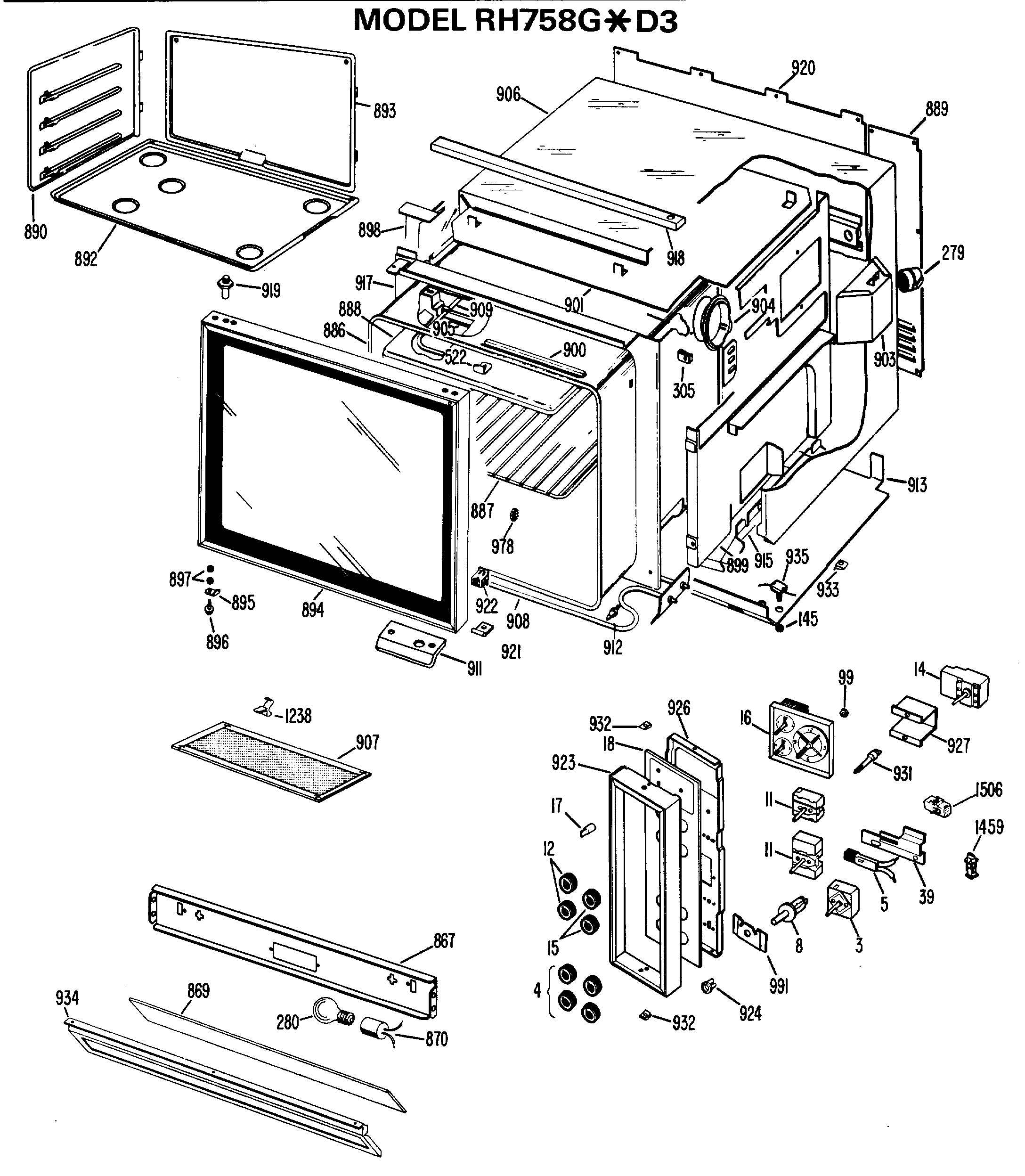

RH758G*D3

Products

Position	Product
1	COOKTOP AD
1	COOKTOP HA
1	COOKTOP WH
4	GEN WB03X5558
5	GEN WB02X3468
5	NEON LAMP 118V
8	SWITCH, LATCH RELEASE
9	GEN WB07X6677
9	GEN WB07X6676
11	GEN WB22X5076
11	GEN WB22X5090
12	GEN WB03X5559
12	GEN WB03X5512
14	GEN WB21X5208
14	GEN WB24X0184
14	GEN WB02X6274
15	KNOB THERMOSTAT L.O.
15	KNOB THERMSOTAT U.O.
16	GEN WB19X0123
18	GEN WB36X5490
18	GEN WB02X3232
18	GEN WB02X6240
21	COVER BACK
22	GEN WB07X6779
26	TRIM COOKTOP LH
26	TRIM COOKTOP RH
39	LAMP BRACKET
45	NUT
113	CLIP TRIM
145	NUT SWITCH
150	WB30X218 GE Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB32X5051
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30X219 GE Range Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
160	RR122 Supco Receptacle WB17X5051
160	SCREW RECEPT TERMINAL
161	GEN WB02X6171
162	CLIP INSULATOR
164	GEN WB31X5012
250	GEN WB02X3229
251	GEN WB56X5861
252	GEN WB02X6768
253	GEN WB49X5149
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5516
258	GUIDE DRAWER RH
258	GUIDE DRAWER LH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5090
261	GEN WB10X5091
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	SPRING DOOR
268	GEN WB29X5012
274	BRACKET KNOCKOUT
275	GEN WB02X6655
276	GEN WB49X5161
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
281	GEN WB02X3466
282	GEN WB24X5138
282	CLAMP HARNESS
283	GEN WB02X3163
283	GEN WB02X3164
305	GEN WB02X6653
309	GEN WB02X6767
311	GEN WB02X6187
312	GEN WB49X5221
312	GEN WB49X5222
348	PLATE GROUND
350	UNKNOWN
350	INSULATION DOOR
351	SPACER DOOR
352	WB2X6547 GE Oven Door Gasket
353	GEN WB02X6573
354	GEN WB09X0154
355	GEN WB55X5244
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5379
358	GEN WB02X7189
359	GEN WB07X5625
360	GEN WB55X5218
361	HANDLE SCREW
362	WB1X119D GE Oven Range Washer
363	SPACER PANEL
364	GROMMET HANDLE
373	WINDOW
374	GASKET WINDOW
385	GEN WB07X5631
386	HANDLE DRAWER
387	GEN WB02X6575
389	GEN WB07X5623
390	GEN WB07X5624
391	GEN WB02X3052
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X5630
395	GEN WB02X3053
396	GEN WB56X5678
403	GEN WB02X7188
404	GEN WB36X5477
406	BRACKET DOOR
407	GEN WB07X0722
451	GEN WB02X6740
451	DRAWER ASM
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X230D GE Screw Package 12
457	GEN WB56X5799
458	GEN WB07X5659
520	GEN WB02X3471
520	GEN WB02X6496
520	GEN WB53
522	TRIM CLIP
763	GEN WB02X1665
782	WB17X5060 GE Oven Block Assembly
788	GEN WB17X5064
827	ANGLE BRACE
829	CLIP SPRING
867	PANEL-LAMP
869	GEN WB36X0433
886	GEN WB02X1511
886	GEN WB53X5078
887	OVEN RACK-UPPER
888	REFLECTOR BROIL
889	INSTRUMENT COVER
890	GEN WB56X1282
890	GEN WB56X1046
892	GEN WB56X1049
893	GEN WB56X1048
894	GEN WB56X5874
895	GEN WB02X1658
897	WASHER
898	GEN WB49X0179
899	INSULATION GUARD
900	GASKET SILICONE UP OVEN
901	GEN WB02X1561
901	GUARD TOP INSULATION
904	OV LAMP LENS
905	BROIL SUPPORT
906	CASE SIDE-RT WHITE
906	CASE SIDE LH HA
906	CASE SIDE-LT WHITE
906	CASE SIDE RH HA
906	CASE SIDE-RT-
906	GEN WB56X1465
907	GEN WB02X1666
908	WB44X195 GE Oven Bake Unit
909	BROIL UNIT-UPPER OVEN
911	GEN WB15X0126
912	DOOR STRIKE
913	GEN WB55X0422
915	INSULATION GUARD-LOWER
917	FRONT FRAME
918	GEN WB07X0776
919	HINGE PIN
920	COVER BACK
921	DOOR GUIDE
922	SPRING CATCH
923	CONTROL TRIM
924	GEN WB02X6497
926	GEN WB02X6457
927	THERMOSTAT BRACKET-UPP
927	THERMOSTAT BRACKET-LOWER
931	SHAFT EXTENSION-LOWER OV
931	SHAFT EXTENSION-UPPER OV
932	SPEEDNUT
933	CLIP
934	HOUSING LAMP
935	GEN WB24X0201
978	GEN WB02X1126
991	GEN WB02X6343
32767	GEN WB56X6001
32767	GEN WB56X5999
32767	GEN WB56X6000
32767	GEN WB56X5998
