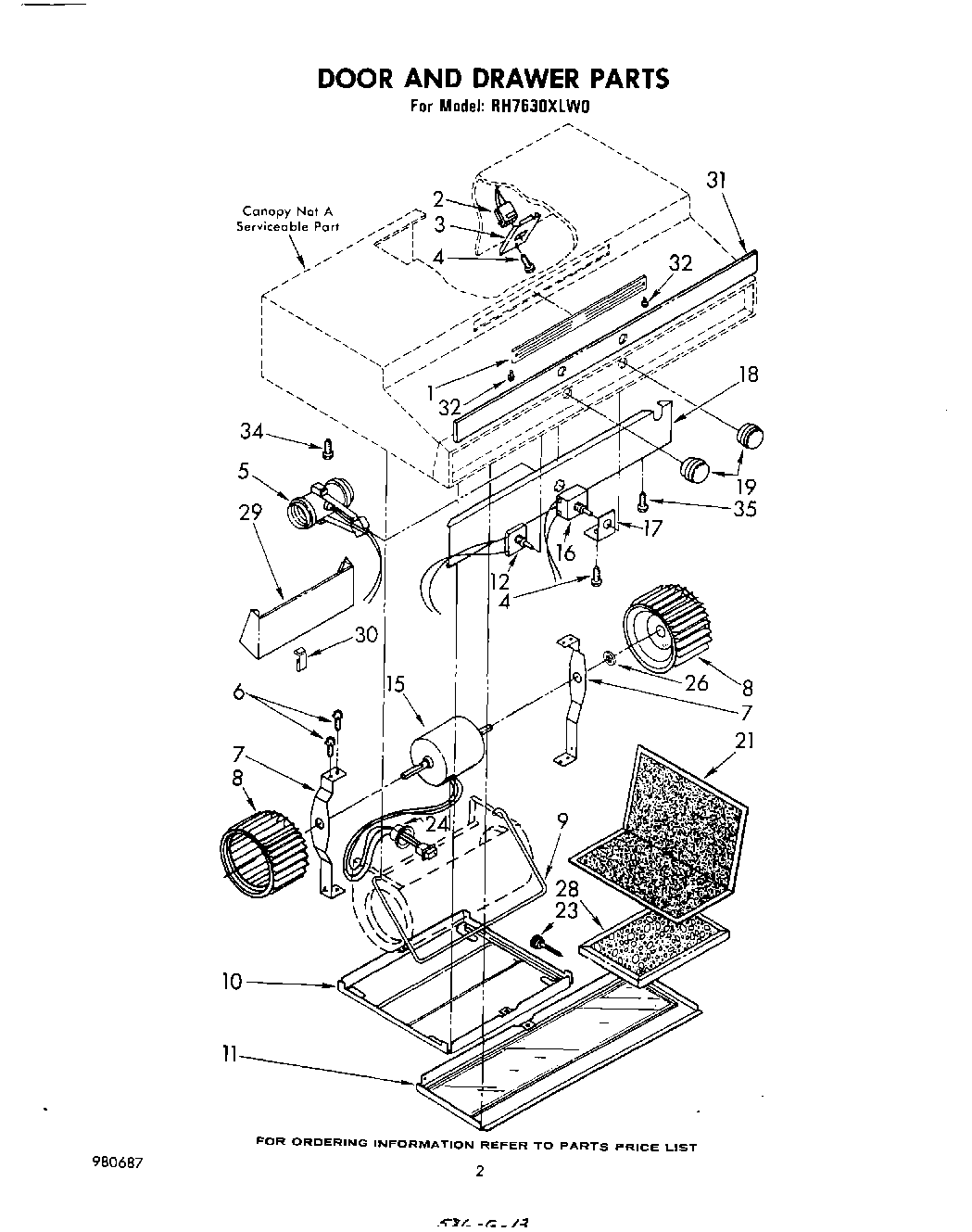

RH7630XLW0 02 – SECTION

Products

PositionProduct
WPL LIT830873
Order Blank, Filter
WPL LIT980687
1Vent, Louvered (Coffee)
1Vent, Louvered (White)
1Vent, Louvered (New Avocado)
1Vent, Louvered (Golden Harvest)
1Vent, Louvered (Stainless Steel)
1Vent, Louvered (Toast)
1Vent, Louvered (Platinum)
1Vent, Louvered (Almond)
2Receptacle, Motor Wire
3Cover, Switch Box
4WP489069 Whirlpool Compactor Screw
5Lampholder, Snap-In
6WP90767 Whirlpool Screw
7Motor Bracket (2)
8Blower Wheel, R.S.
8Blower Wheel, L.S.
9Rod, Retaining
10Cover, Blower (Includes Illus. 23) (Almond)
10Cover, Blower (Includes Illus. 23) (New Avocado)
10Cover, Blower (Includes Illus. 23) (Coffee)
10Cover, Blower (Includes Illus. 23) (Stainless Steel)
10Cover, Blower (Includes Illus. 23) (White)
10Cover, Blower (Includes Illus. 23) (Toast)
10Cover, Blower (Includes Illus. 23) (Platinum)
10Cover, Blower (Includes Illus. 23) (Golden Harvest)
11Glass & Frame Assembly (Platinum)
11Glass & Frame Assembly (Coffee)
11Glass & Frame Assembly (Toast)
11Glass & Frame Assembly (New Avocado)
11Glass & Frame Assembly (Golden Harvest)
11Glass & Frame Assembly (Almond)
11Glass & Frame Assembly (White)
11Glass & Frame Assembly (Stainless Steel)
12Switch, Rotary (Light)
15Motor, Blower
16Switch, Fan Motor
17Bracket, Speed Control
18Cover, Wiring Box
19Knob (2)
21WP830865 Whirlpool Filter
23Screw, Thumb (3)
24Bushing, Split
26Washer
28WPL 830734
29WPL 830787
30Clip, Wire Retaining (3)
31WPL 830898
32Rivet, Black (2)
34Screw, 10-32 x 3/8
35Screw, 8 x 1/2 (4)
