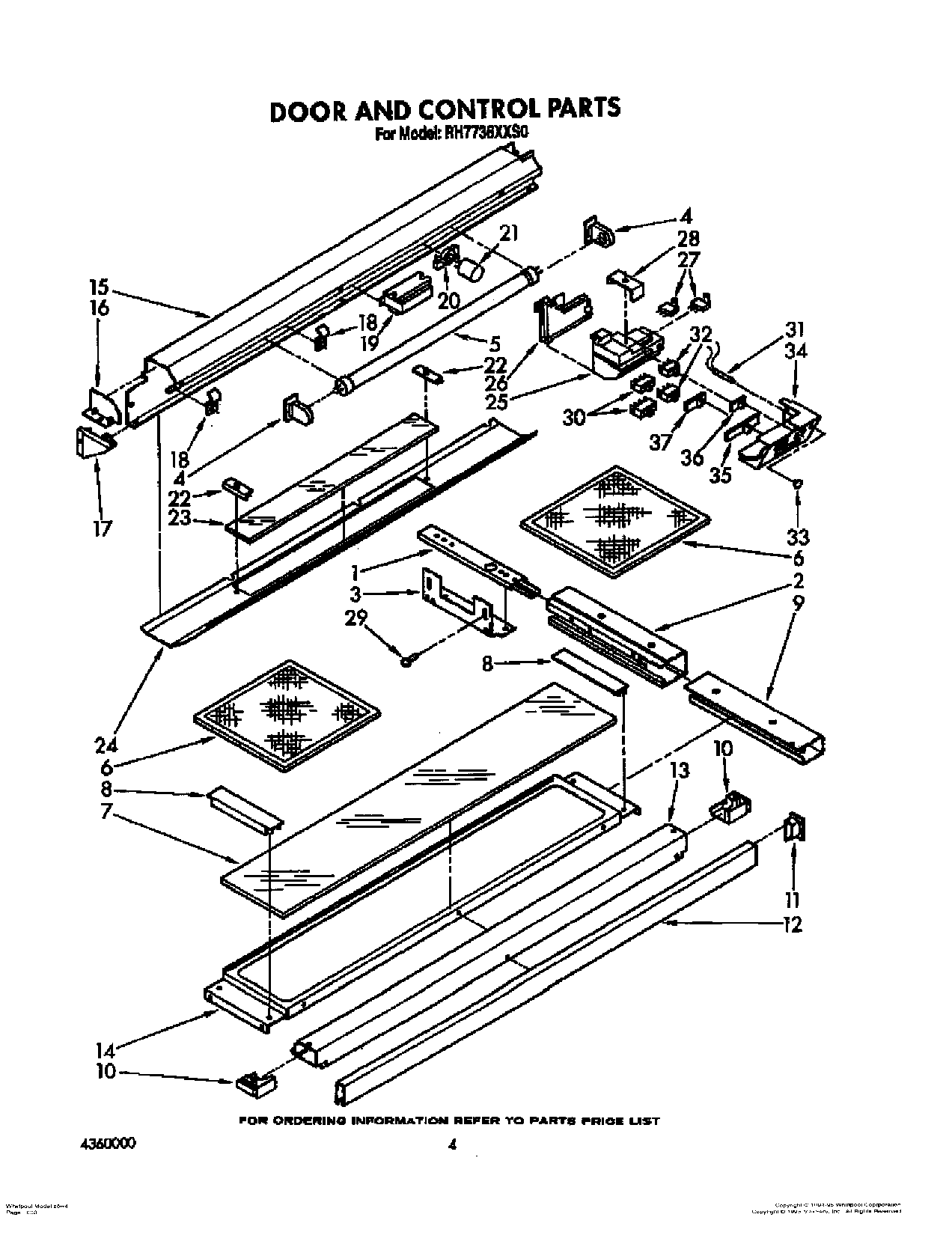

RH7736XXS0 03 – DOOR AND CONTROL PARTSadmin2025-04-26T12:07:16+00:00RH7736XXS0 03 – DOOR AND CONTROL PARTS
Products
| Position | Product |
|---|
| WP883140 Whirlpool Range Hood Filter |
| Wiring Diagram |
| Parts List |
| Front Kit (White) |
| Installation Instructions |
| Front Kit (Black) Front Kit (White) |
| 1 | Guide, Door (2) |
| 2 | Guide, Housing (Left Side) |
| 2 | Guide, Housing (Right Side) |
| 3 | Support Guide |
| 4 | Socket, Lamp (2) |
| 5 | Lamp |
| 6 | WPW10370046 Whirlpool Filter Assembly |
| 7 | Glass, Door |
| 8 | Brace, Glass (2) |
| 9 | Frame, Door (Right Side) |
| 9 | Frame, Door (Left Side) |
| 10 | End Cap, Door (Right Side) |
| 10 | End Cap, Door (Left Side) |
| 11 | End Cap, Handle (Left Side) |
| 11 | End Cap, Handle (Right Side) |
| 12 | Handle |
| 13 | Bracket, Handle |
| 14 | Baffle, Door |
| 15 | Support, Light |
| 16 | End Plate |
| 17 | Bracket, Light |
| 18 | Clamp, Wiring |
| 19 | Ballast |
| 20 | Receptacle |
| 21 | Starter |
| 22 | Brace, Glass (2) |
| 23 | Lens, Light |
| 24 | Frame, Lens |
| 25 | Base, Switch |
| 26 | Cover, Base |
| 27 | WPW10240604 Whirlpool Fan Switch |
| 28 | Cover, Switch |
| 29 | Screw |
| 30 | Switch, Light (2) |
| 31 | Light, Indicator |
| 32 | Switch, Fan (2) |
| 33 | Cover, Lamp |
| 34 | Cover, Switch |
| 35 | Knob, Control |
| 36 | Knob, Fan |
| 37 | Knob, Light |
