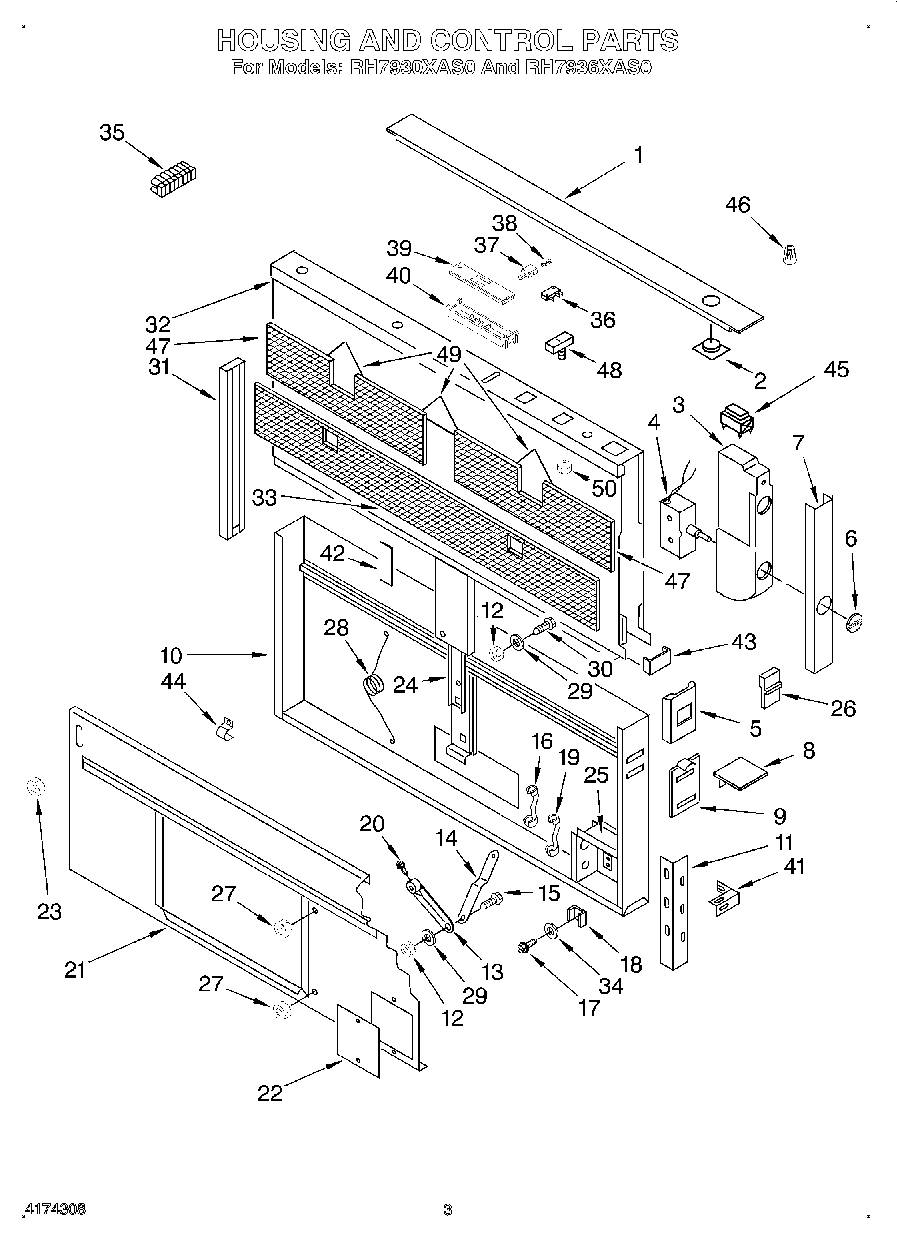

RH7930XAS0 02 – SECTION

Products

Position	Product
	WPL 814380
	WPL 883241
	WPL 883240
	WPL 883242
	WPL LIT0883243
	WPL 883239
1	Cover, Controls (Top) (RH7930XAS0)
1	Cooktop Strip
2	Button, Push
3	Housing, Switch
4	Switch, Fan
5	Bracket, Support (Left Hand)
6	Knob
7	Panel, Control
8	End Cap (2)
9	Plate, Support (Upper) (2)
10	Housing, (Not Serviceable)
11	Bracket, Support (Lower R.H.)
11	Bracket, Support (Lower L.H.)
12	Nut
13	Arm, Gear Motor
14	Arm, Cavity
15	Bolt
16	Relief, Strain
17	Screw
18	Guide, Ground
19	Strain Relief
20	Screw, Set
21	Cover, Housing (Not Serviceable)
22	Cover, Wiring Box
23	Nut In Guide (2)
24	Guide, Housing (Not Serviceable)
25	Box, Wiring
26	Clamp
27	WP776338 Whirlpool Compactor Nut
28	Spring
29	98007193 Whirlpool Oven Washer
30	Bolt
31	Trim, L.H.
32	Filter Frame Grease Not Serviceable
33	Filter, Grease (GZ7930XHS0)
33	Filter, Grease (GZ7936XHS0)
34	Washer
35	Terminal
37	W10235643 Whirlpool Switch
41	Support (L.H.)
41	Support (R.H.)
42	Guide, Housing (Back)
43	Spacer, Cavity (2)
44	Clamp, Wiring
45	Switch
46	Wire Nut
47	Filter, Metal Grease (2) (GZ7930XHS0)
47	Filter, Metal Grease (2) (GZ7936XHS0)
48	Bracket (3)
49	Clamp, Filter (3)
50	Nut, Wing
50	Installation Kit
