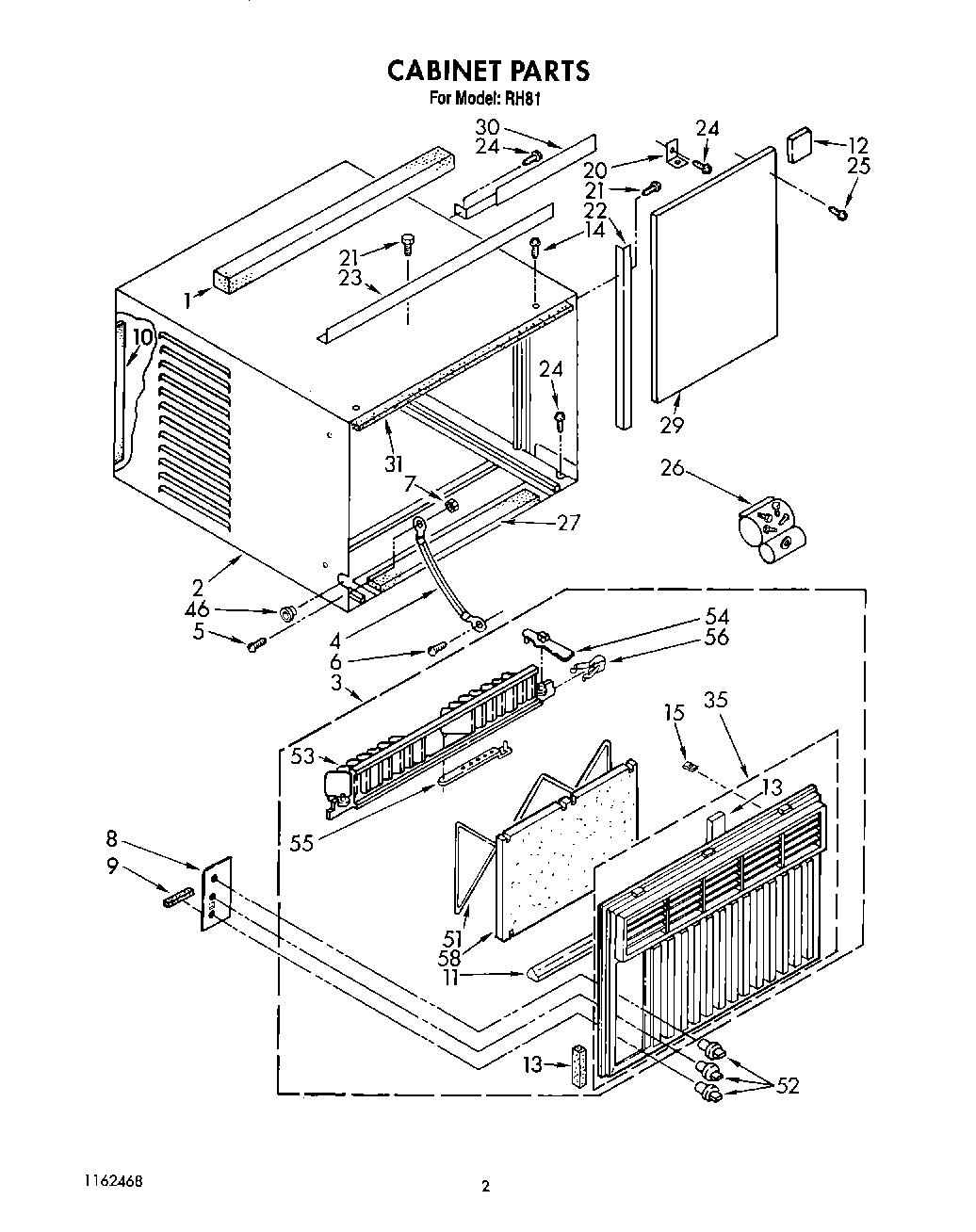

RH81 02 – CABINET

Products

PositionProduct
1Gasket, Meeting Rail
2Cabinet
3Front Assembly, Cabinet (Complete)
4Wire, Ground
5Screw, 8 x 3/8
6Screw, 8 x 3/8
7WP486255 Whirlpool Air Conditioner Nut
8Plate, Escutcheon
9Spacer, Escutcheon Plate (3)
11WP854334 Whirlpool Air Conditioner Sealing Strip
11Seal
12Spacer, Block (4)
13Seal
14Screw (2)
15Clip, Cabinet Front (2)
20Bracket
21WP308685 Whirlpool Microwave Screw
22Angle (2)
23Angle, Top
24Screw, Wood 8-15 x .750
25WP965173 Whirlpool Dishwasher Screw
26Bag, Accessory
27Seal
29Bracket, R.S.
30Bracket, R.S.
30Bracket, L.S.
31WPL 647848
31Insulation, Cabinet (Top)
31WPL 647847
35Front, Cabinet
46Grommet, Appliance Cable
51Retainer, Filter
52Knob, Control (3)
53Louver, Vertical
54Handle, Vertical Louver (2)
55Link, Vertical Louver (2)
56Detent Spring (2)
58Filter
