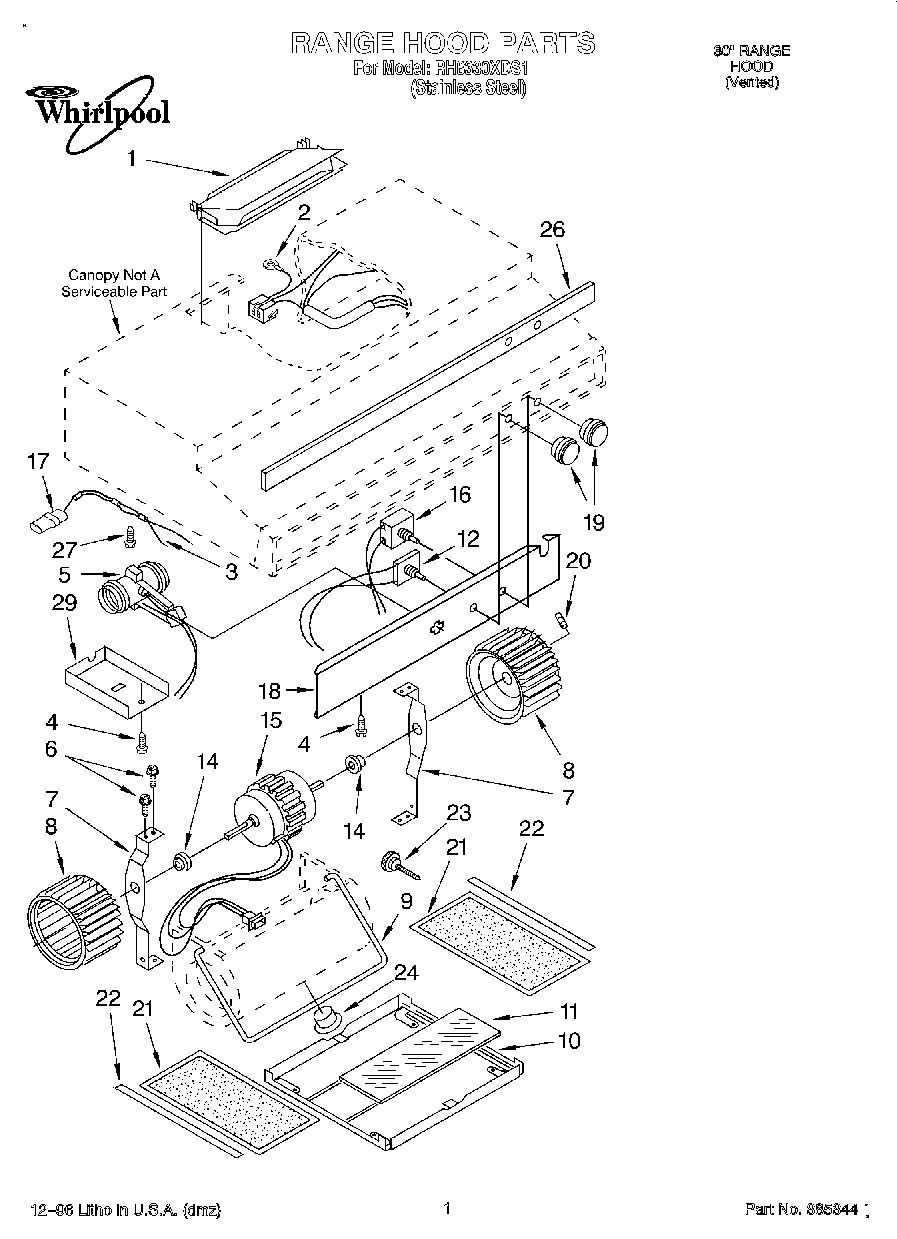

RH8330XDS1 01 – SECTION

Products

Position	Product
	RANGE ONLY 40W 120V APPL BULB
	Order Blank, Filter
	Wiring Diagram
	Instructions, Installation & Operating
1	Damper
2	Wiring Assy.
3	Wire-Diode Assy.
4	WP489069 Whirlpool Compactor Screw
5	Lampholder, Double (Snap-In)
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Blower Wheel, R.S. (Includes Illus. 20)
8	Vent Cover, Ductless
9	Rod, Retaining
10	Cover, Blower (Platinum)
11	Lens Light
12	Switch, Rotary (3 – Speed Fan)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
17	Wire Splice
18	Cover, Switch Box
19	Knob, Control (2) (Black Model)
20	Setscrew
21	Filter, Grease (2)
22	Support, Filter
23	Screw, Thumb (3)
24	Bushing, Split
26	Nameplate, 30“ (Stainless Model)
27	Screw, Ground
29	Cover, Wiring Box
