| Instructions, Installation & Operating |
| RANGE ONLY 40W 120V APPL BULB |
| Wiring Diagram |
| Order Blank, Filter |

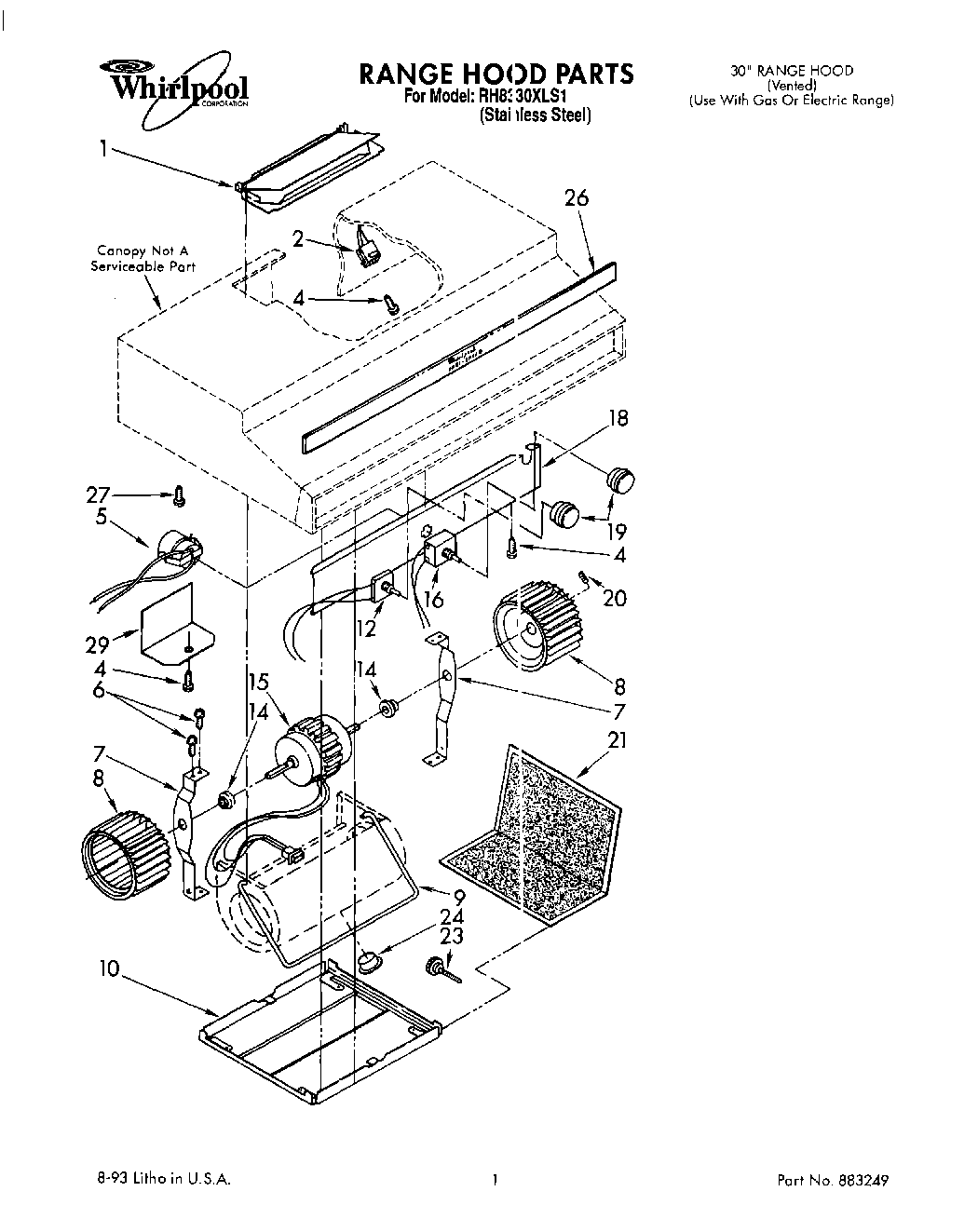

| 1 | Damper |
| 2 | Receptacle, Snap-In |
| 4 | WP489069 Whirlpool Compactor Screw |
| 5 | Receptacle, Light |
| 6 | WP90767 Whirlpool Screw |
| 7 | Motor Bracket (2) |
| 8 | Blower Wheel, R.S. (Includes Illus. 20) |
| 8 | Vent Cover, Ductless |
| 9 | Rod, Retaining |
| 10 | Cover, Blower (2) (Includes Illus. 23) |
| 12 | Switch, Rotary (Light) |
| 14 | Motor Mount, Rubber (2) |
| 15 | Motor, Blower |
| 16 | Switch, Fan Motor |
| 18 | Cover, Wiring Box |
| 19 | Knob (2) |
| 20 | Setscrew |
| 21 | WP830865 Whirlpool Filter |
| 23 | Screw, Thumb (3) |
| 24 | Bushing, Split |
| 26 | Nameplate |
| 27 | Screw, 10-32 x 3/8 |
| 29 | Cover, Switch Box |
