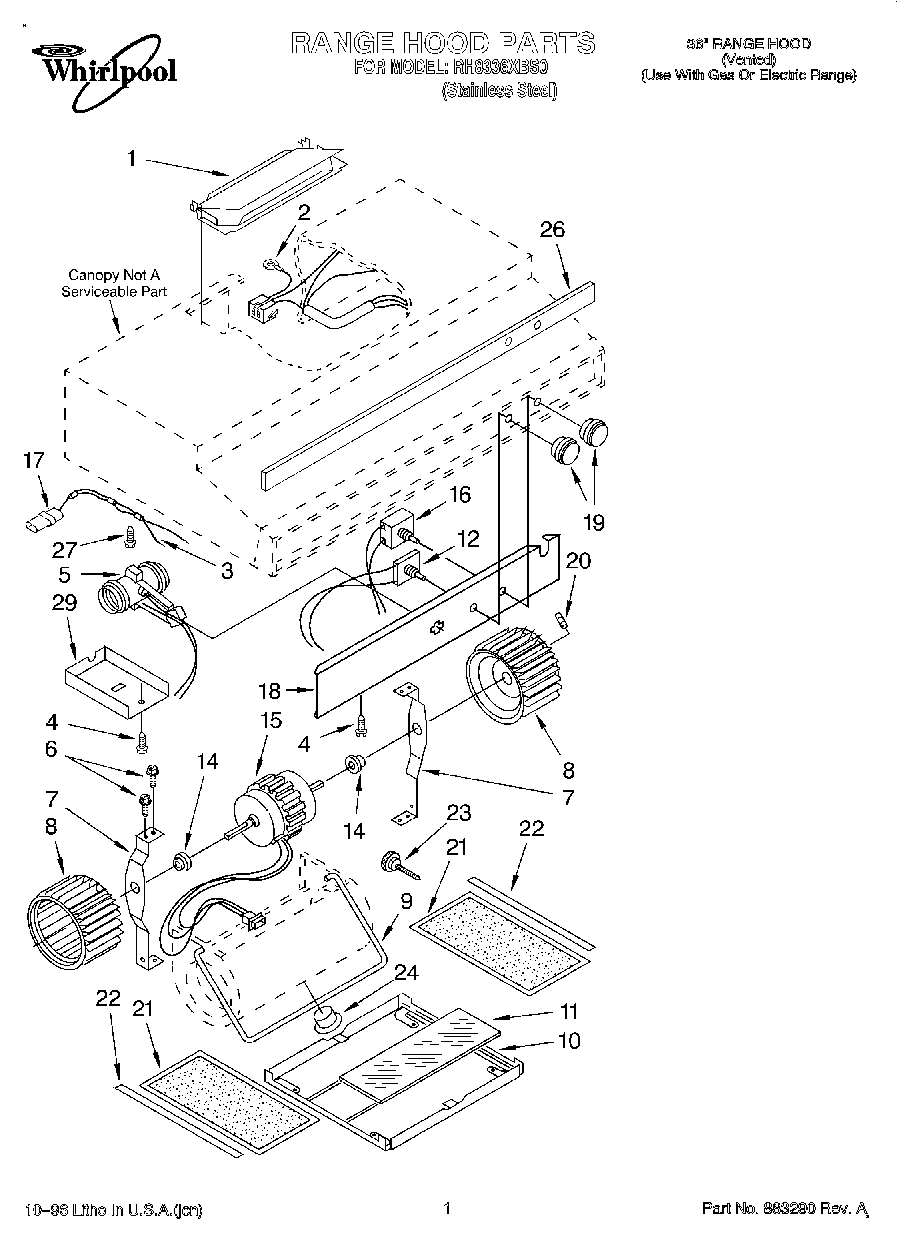

RH8336XBS0 01 – SECTION

Products

Position	Product
	Wiring Diagram
	Instructions, Installation & Operating
	RANGE ONLY 40W 120V APPL BULB
	Order Blank, Filter
1	Damper
2	Wiring Assy.
3	Wire-Diode Assy.
4	WP489069 Whirlpool Compactor Screw
5	Lampholder, Double (Snap-In)
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Blower Wheel, R.S. (Includes Illus. 20)
8	Vent Cover, Ductless
9	Rod, Retaining
11	Lens Light
12	Switch, Light (Includes 90825 Hex Nut)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
17	Wire Splice
18	Cover, Switch Box
19	Knob, Control (2) (Stainless Model)
20	Setscrew
21	Filter, Grease (2)
22	Support, Filter
23	Screw, Thumb (3)
24	Bushing, Split
26	Nameplate, 36“
27	Screw, Ground
29	Cover, Wiring Box
