RH8336XLS1 01 – SECTION

Products

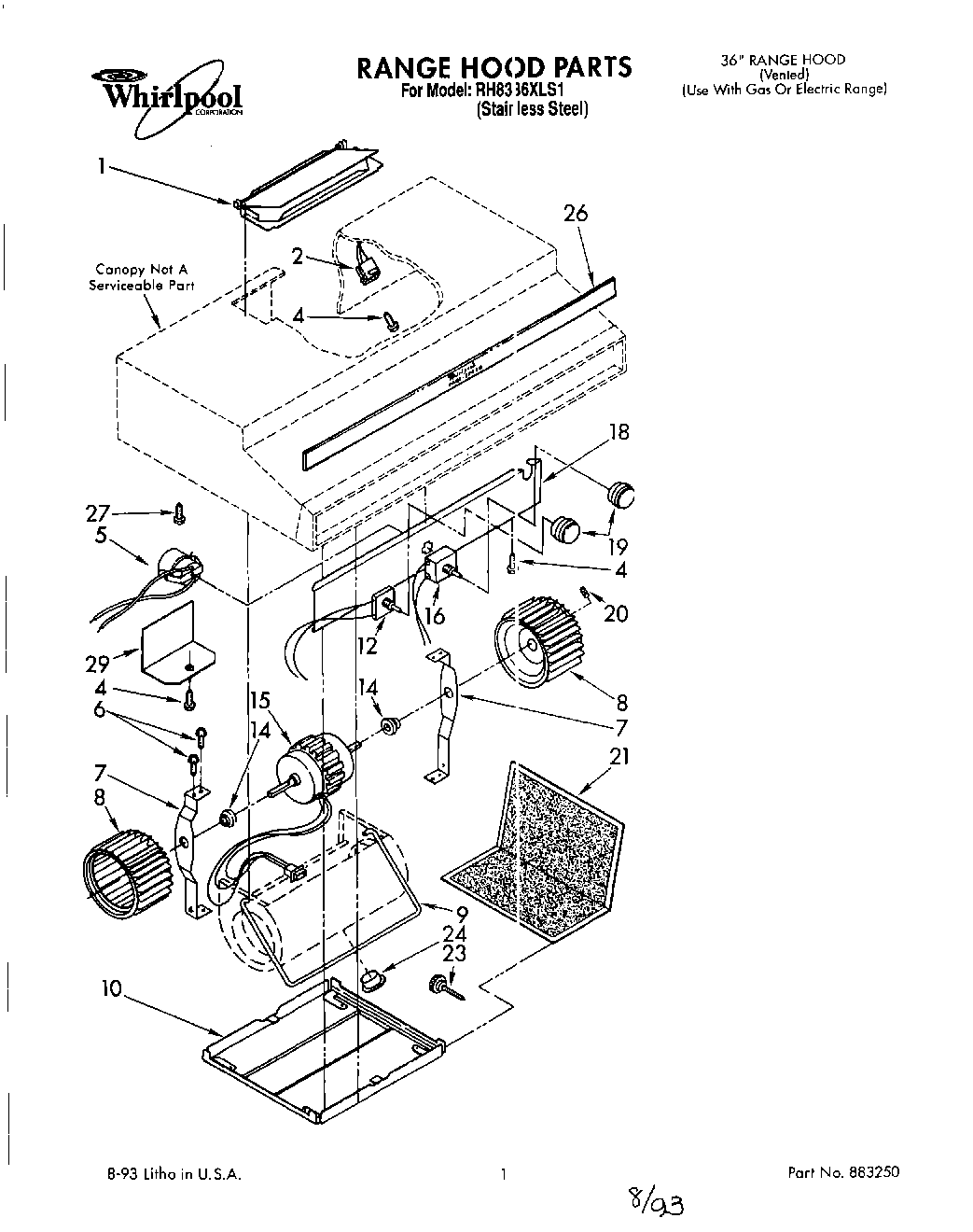

Position	Product
	Instructions, Installation & Operating
	RANGE ONLY 40W 120V APPL BULB
	Wiring Diagram
	Order Blank, Filter
1	Damper
2	Receptacle, Snap-In
4	WP489069 Whirlpool Compactor Screw
5	Receptacle, Light
6	WP90767 Whirlpool Screw
7	Motor Bracket (2)
8	Vent Cover, Ductless
8	Blower Wheel, R.S. (Includes Illus. 20)
9	Rod, Retaining
10	Cover, Blower (2) (Includes Illus. 23)
12	Switch, Rotary (Light)
14	Motor Mount, Rubber (2)
15	Motor, Blower
16	Switch, Fan Motor
18	Cover, Wiring Box
19	Knob (2)
20	Setscrew
21	WP830865 Whirlpool Filter
23	Screw, Thumb (3)
24	Bushing, Split
26	Nameplate
27	Screw, 10-32 x 3/8
29	Cover, Switch Box
