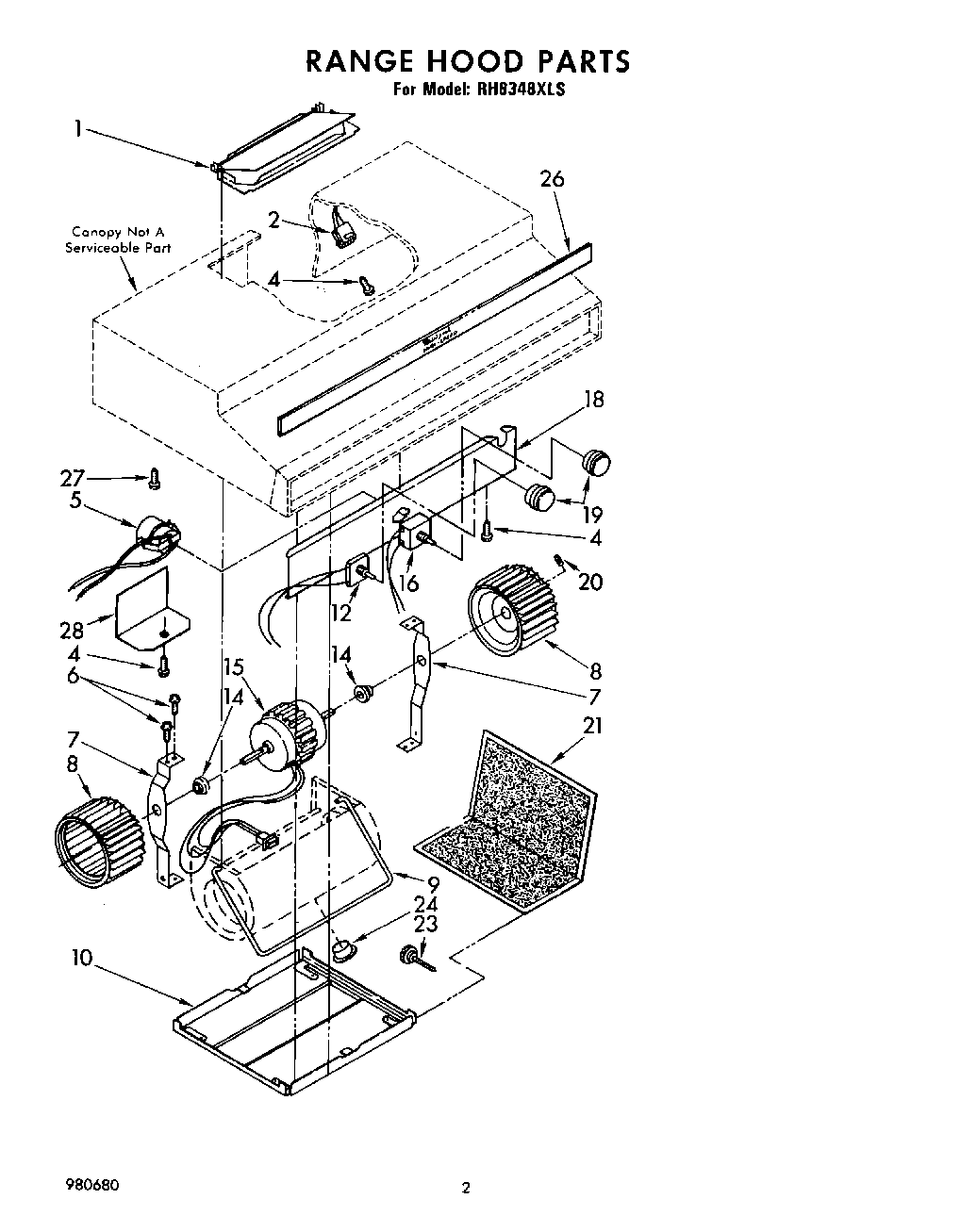

RH8348XLS 02 – SECTION

RH8348XLS 02 – SECTION

Written by

in

RH8348XLS 02 – SECTION

Products

PositionProduct
1Damper
2Receptacle, Motor Wire
4WP489069 Whirlpool Compactor Screw
5Receptacle, Light
6WP90767 Whirlpool Screw
7Motor Bracket (2)
8Vent Cover, Ductless
8Blower Wheel, R.S. (Includes Illus. 20)
9Rod, Retaining
10Cover, Blower (2) (Includes Illus. 23)
12Switch, Rotary (Light)
14Motor Mount, Rubber (2)
15Motor, Blower
16Switch, Fan Motor
18Cover, Wiring Box
19Knob (2)
20Setscrew
21WP830865 Whirlpool Filter
23Screw, Thumb (3)
24Bushing, Split
26Nameplate
27Screw, 10-32 x 3/8
28Instructions, Installation & Operating
28Cover, Switch Box
28Order Blank, Filter
28List, Repair Parts
