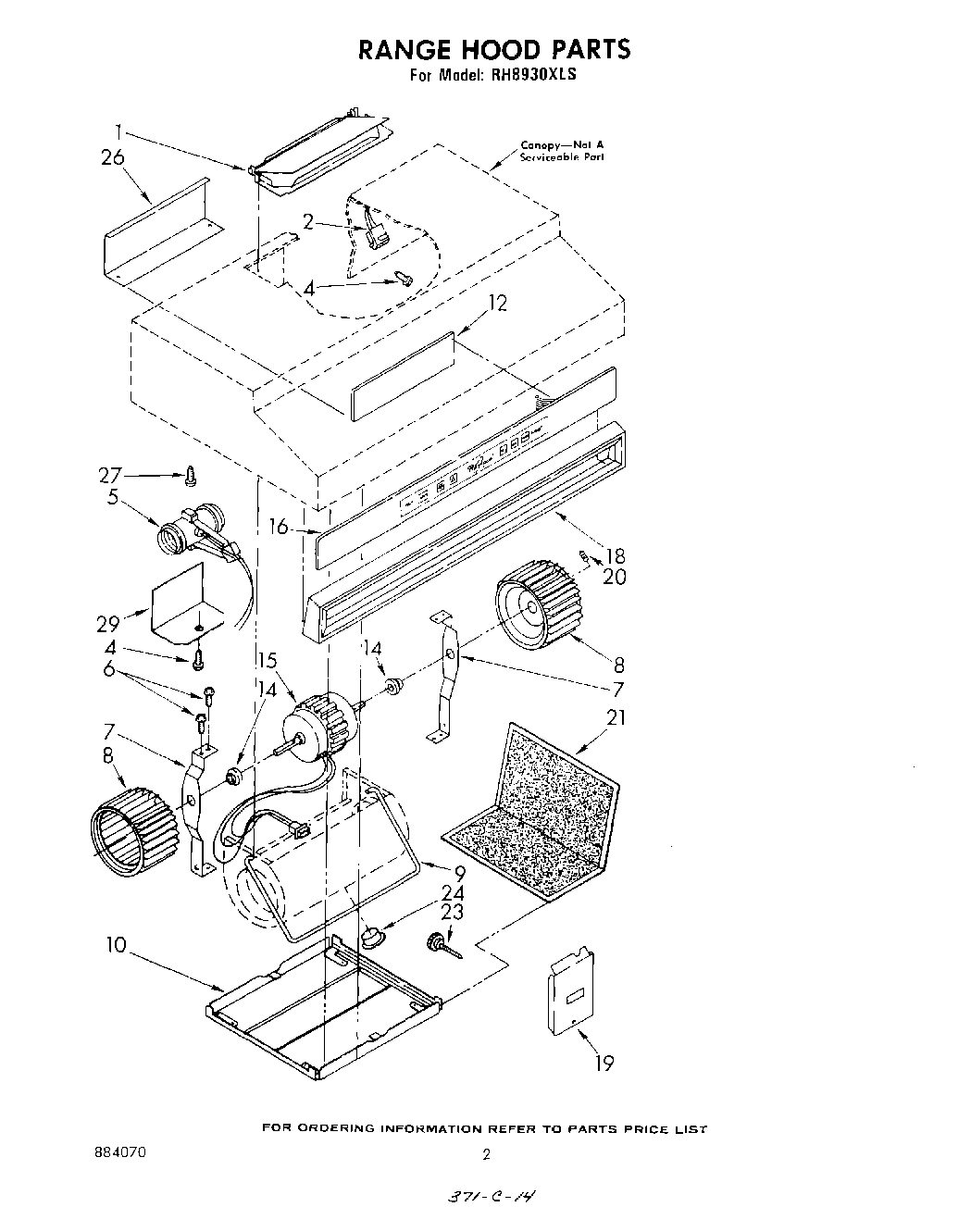

RH8930XLS 02 – SECTION

RH8930XLS 02 – SECTION

Written by

in

RH8930XLS 02 – SECTION

Products

PositionProduct
1Damper
2Receptacle, Motor Wire
4WP489069 Whirlpool Compactor Screw
5Receptacle, Light
6WP90767 Whirlpool Screw
7Motor Bracket (2)
8Vent Cover, Ductless
8Blower Wheel, R.S. (Includes Illus. 20)
9Rod, Retaining
10Cover, Blower (2) (Includes Illus. 23)
12Microcomputer
14Motor Mount, Rubber (2)
15Motor, Blower
16Switch, Membrane
18Trim, Switch Membrane
18WP486579 Whirlpool Air Conditioner Screw
19Cover, Wiring Box
20Setscrew
21WP830865 Whirlpool Filter
23Screw, Thumb (3)
24Bushing, Split
26Cover, P.C. Board
27Screw, 10-32 x 3/8
29Cover, Switch Box
29Instructions, Installation & Operating
29List, Repair Parts
29Order Blank, Filter
