RH962V*K4

RH962V*K4

Written by

in

RH962V*K4

Products

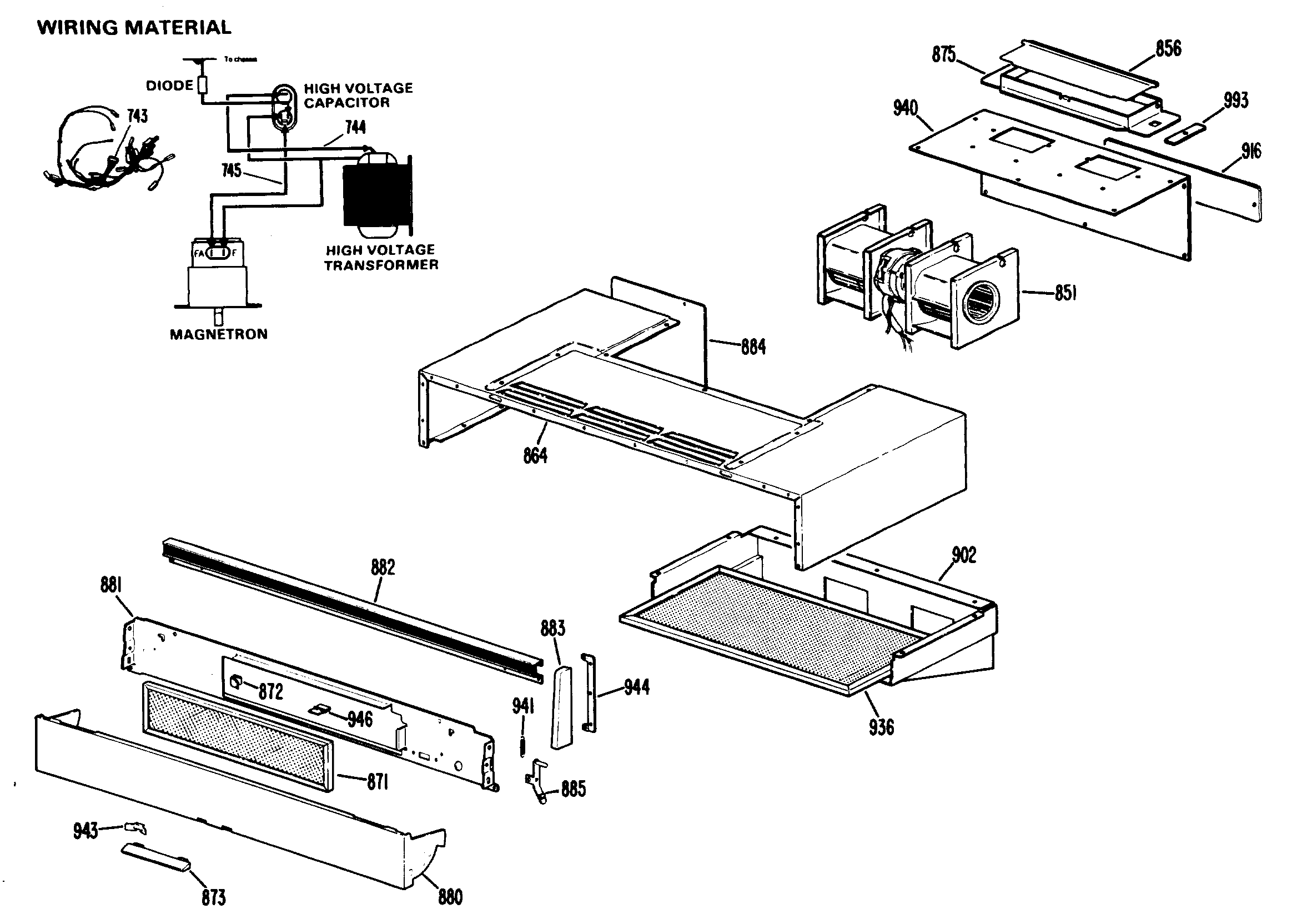

Position	Product
1	GEN WB62X5353
1	GEN WB62X5354
1	GEN WB62X5355
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5697
5	NEON LAMP 118V
5	GEN WB02X3468
6	CLIP MTG LAMP
7	WB25X65 GE Oven Light Indicator
9	GEN WB07X6677
9	GEN WB07X6676
11	GEN WB22X5103
12	GEN WB03X5627
14	GEN WB02X6494
14	GEN WB02X6937
14	GEN WB02X6274
14	GEN WB24X0184
15	GEN WB03X5696
18	GEN WB36X5618
21	GEN WB49X5293
26	GEN WB07X1004
34	OV LAMP SOCKET
35	LAMP 60W
39	SURFACE LIGHT BRACKET
113	CLIP TRIM
136	GEN WB07X6995
137	GEN WB07X6939
138	GEN WB08X0164
145	NUT SWITCH
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
154	GEN WB32X5051
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
164	GEN WB31X5012
180	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
250	OVEN ASSEMBLY
251	GEN WB56X6054
252	GEN WB02X7864
253	GEN WB49X5465
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5516
258	GUIDE DRAWER LH
258	GUIDE DRAWER RH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5090
261	GEN WB10X5091
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
267	SPRING DOOR
268	GEN WB29X5019
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X7774
276	GEN WB49X5398
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
280	LAMP-OVEN-M/W
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5138
283	GEN WB02X3164
283	GEN WB02X3163
291	BALLAST
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
305	GEN WB02X6653
309	GEN WB02X6767
310	GEN WB49X5156
348	PLATE GROUND
350	INSULATION DOOR
350	GEN WB55X5322
352	WB2X6547 GE Oven Door Gasket
355	GEN WB55X5331
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5560
359	GEN WB07X6892
360	GEN WB55X5325
361	GEN WB01X5735
362	WB1X119D GE Oven Range Washer
363	GEN WB02X7616
365	GEN WB15X5175
373	GEN WB36X5634
386	HANDLE DRAWER
391	GEN WB02X3052
392	CAM LINK
393	GEN WB09X5083
394	GEN WB07X6889
397	WB15X5189 GE Oven Endcap 2-Pack
397	GEN WZ04X0384
399	GEN WB02X3285
402	GEN WB01X0591
403	GEN WB02X7188
404	GEN WB36X5477
406	BRACKET DOOR
407	GEN WB07X6913
415	GEN WB02X7608
440	WB01K10093 GE Oven Speednut
441	GEN WB02X7609
441	GEN WB02X7610
442	GEN WB01X5733
451	DRAWER ASM
452	SLIDE TOP
453	SLIDE BOTTOM
454	GEN WB02X6208
456	WZ4X345D GE Screw Package 12 C92
456	GEN WZ04X0365
457	GEN WB56X6088
459	WB1X537 GE Oven Screw
461	WB1X536 GE Oven Screw
520	GEN WB53X5131
520	GEN WB02X6496
522	TRIM CLIP
523	GEN WB02X7693
526	GEN WB02X3165
528	RACK OVEN
530	WB48X10056 GE Broil Pan Set, Large Porcelain
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
700	LATCH
706	GEN WB02X7746
706	PAWL LOCKING
715	GEN WB01X5751
731	GEN WB02X7711
732	SWITCH
733	GEN WB02X7750
733	LOWER TRIM
734	GEN WB02X7755
735	GEN WB24X5093
736	GEN WB24X5245
737	GEN WB02X7766
737	GEN WB27X5407
739	FUSTAT RECEPTACLE-M/W
742	GEN WB27X5405
743	GEN WB18X5098
744	GEN WB18X5096
745	GEN WB18X5097
746	MOUNTING BRACKET
748	GEN WB27X5399
749	GEN WB01X5578
750	FUSTAT BRACKET
751	EXHAUST GUIDE-M/W
752	GEN WB10X5184
753	SPACER-HINGE-M/W
754	GEN WB02X7635
755	GEN WB02X7753
756	FAN MOTOR BRACKET
757	GEN WB02X7734
758	HOLDER PROBE-M/W
759	BULB HOLDER BRACKET
760	GEN WB02X7625
761	GEN WB02X7752
762	GEN WB02X7761
763	GEN WB02X1665
764	GEN WB49X5392
765	CAVITY
766	MOTOR, STIRRER-M/W
767	ANTENNA-M/W
768	GEN WB26X5082
769	WB27X10249 GE Oven Magnetron
770	GEN WB27X5371
771	GEN WB27X5447
772	HV CAPACITOR BRACKET
773	WB27X10073 GE Oven Capacitor
774	WB27X1160 GE Microwave High Voltage Diode
775	GEN WB24X0353
776	GEN WB24X0352
777	PROBE-M/W
778	SHELF-M/W
779	SPACER-M/W
779	GEN WB01X5588
779	RECEPTACLE PROBE-M/W
783	LAMP SHIELD-M/W
785	GEN WB02X7728
786	GEN WB02X4114
787	SUPPORT RACK-M/W
788	GEN WB17X5064
788	GEN WB17X5079
791	OVEN RACK-M/W
792	THERMAL CUTOUT-M/W
793	MICROWAVE DOOR TRIM
794	SPACER-M/W
795	CRYSTAL TRIM
796	GEN WB02X6654
797	GEN WB36X5604
798	BRACKET-TOUCH CONTROL
799	HOLDER-M/W
811	LINER & CHOKE ASM.
812	GEN WB55X5286
813	GEN WB55X5287
814	FILM-LINER & CHOKE ASM.
815	GEN WB02X7642
815	GEN WB02X7643
817	DOOR KEY PACKAGE
818	TRIM HANDLE
819	SPRING DOOR KEY-M/W
820	GEN WB10X5186
821	GEN WB10X5179
822	DOOR SASH LEFT M/W
823	GEN WB36X5603
824	GEN WB02X7559
825	DOOR SASH RUBBER
851	GEN WB26X5083
856	GEN WB02X7764
864	GEN WB56X6076
864	GEN WB56X6074
864	GEN WB56X6075
871	GEN WB02X7758
872	GEN WB02X1583
873	HOOD PANEL HANDLE
875	GEN WB49X5935
880	GEN WB56X5896
881	FILTER PLATE
882	HOOD TRIM
883	END CAP-LT
883	END CAP-RT
884	GEN WB02X2017
885	GEN WB02X7216
891	WR62X51 GE Refrigerator Capacitor
902	GEN WB49X5391
906	GEN WB02X6930
906	GEN WB56X6035
906	GEN WB56X6032
906	GEN WB56X6031
906	GEN WB56X6030
906	GEN WB56X6036
906	GEN WB56X6037
910	BASE-M/W
916	GEN WB02X7759
923	GEN WB07X6949
924	BOTTOM WINDOW-M/W
926	GEN WB02X7778
940	GEN WB02X7760
941	GEN WB09X5099
943	RETAINER CLIP
944	MOUNTING BRACKET
946	FILTER CLIP
952	SIDE DUCT
954	TOP CASE-ALMOND
957	OVEN BRACE
958	GEN WB49
989	GEN WB01X0425
992	PLUG BUTTON
993	GEN WB02X7765
995	GEN WB02X7724
1201	WB1X5364 GE Oven Mounting Screw
32767	GEN 49-4706
32767	GEN 31-0649
32767	GEN 39-4595
