RHE396PP 05 – SURFACE UNITadmin2025-04-26T12:07:07+00:00RHE396PP 05 – SURFACE UNIT
Products

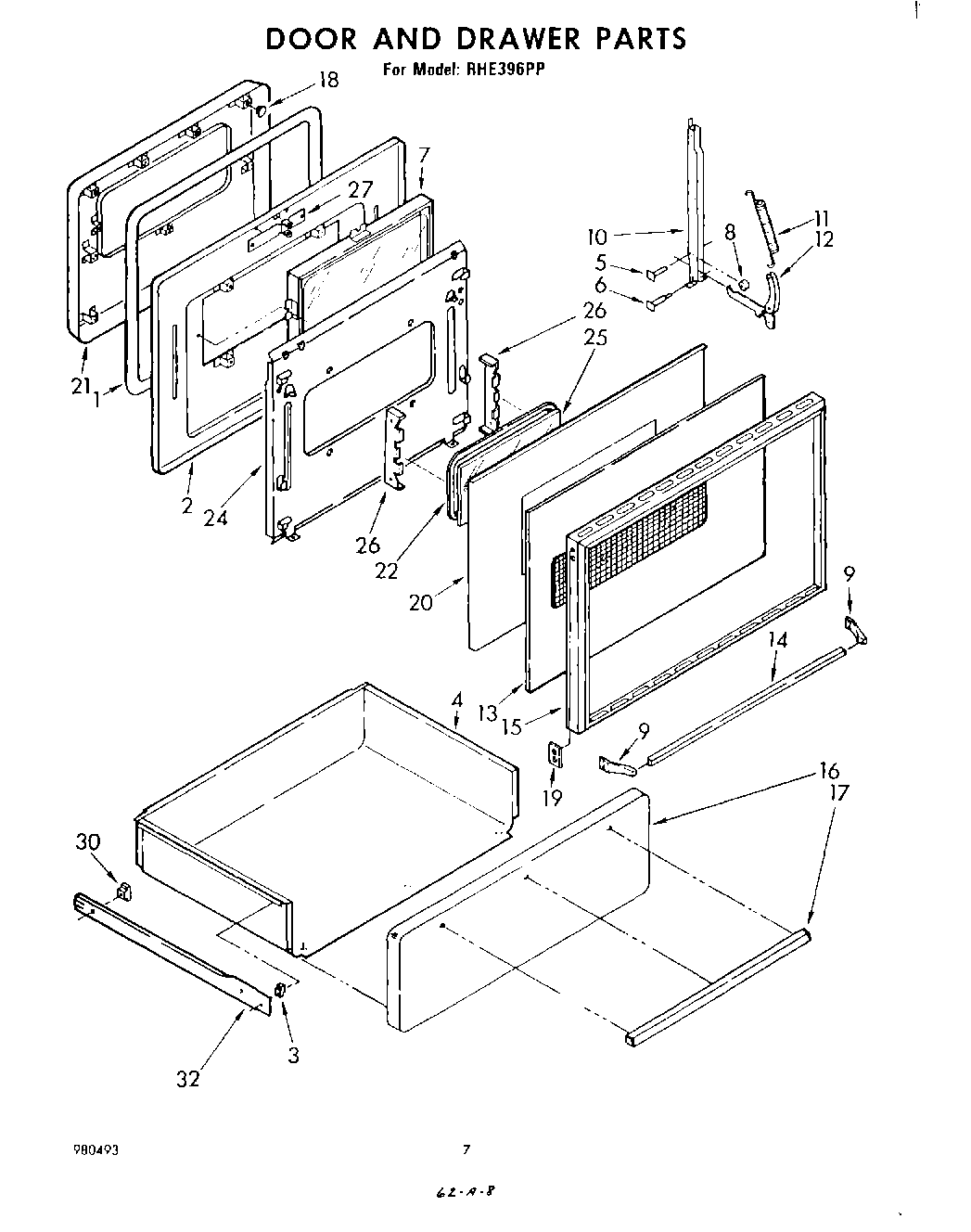

| Position | Product |
|---|
| 1 | Seal, Oven Door |
| 2 | Liner, Oven Door |
| 3 | Guide, Drawer (Front) |
| 3 | WPL 834649 |
| 4 | Drawer Assembly |
| 5 | Rivet (2) |
| 5 | Nut, Speed |
| 6 | Pin, Hinge (2) |
| 6 | Nut, Speed |
| 7 | Window |
| 8 | Roller, Stop (2) |
| 9 | Stanchion, Handle (2) |
| 10 | Channel Assembly |
| 10 | Washer (2) |
| 10 | Screw |
| 11 | Spring, Door (2) |
| 12 | Arm Assembly (2) |
| 13 | Washer (2) |
| 13 | Glass, Outer (Black) |
| 14 | Handle, Door (Includes Illus. 9) |
| 15 | WPL 595119 |
| 15 | Frame, Oven Door |
| 16 | Panel, Drawer (Black) |
| 16 | Nut, 10-24 (2) |
| 16 | Screw, 10-24 x 3/8 |
| 17 | Screw, 10-24 x 3/8 |
| 17 | Handle, Drawer |
| 18 | Plug Button 3/16`` (2) |
| 19 | Screw, 6-32 x 3/8 (4) |
| 19 | Nut |
| 19 | Trim, Frame (2) |
| 20 | Panel, Heat Reflector |
| 21 | Baffle |
| 22 | ``J`` Moulding |
| 24 | Panel, Airwash |
| 25 | Glass, Inner |
| 26 | Retainer, Glass |
| 27 | W10080180 Whirlpool Nut |
| 27 | Washer (4) |
| 27 | Strike Assy (Door) |
| 27 | Screw, 10-24 x 1/2 |
| 30 | Guide, Drawer (Back) |
| 32 | Rail, Drawer (L.H.) |
| 32 | rail, drawer (R.H.) |
| 32 | Screw, 10-24 x 1/2 (3) |
