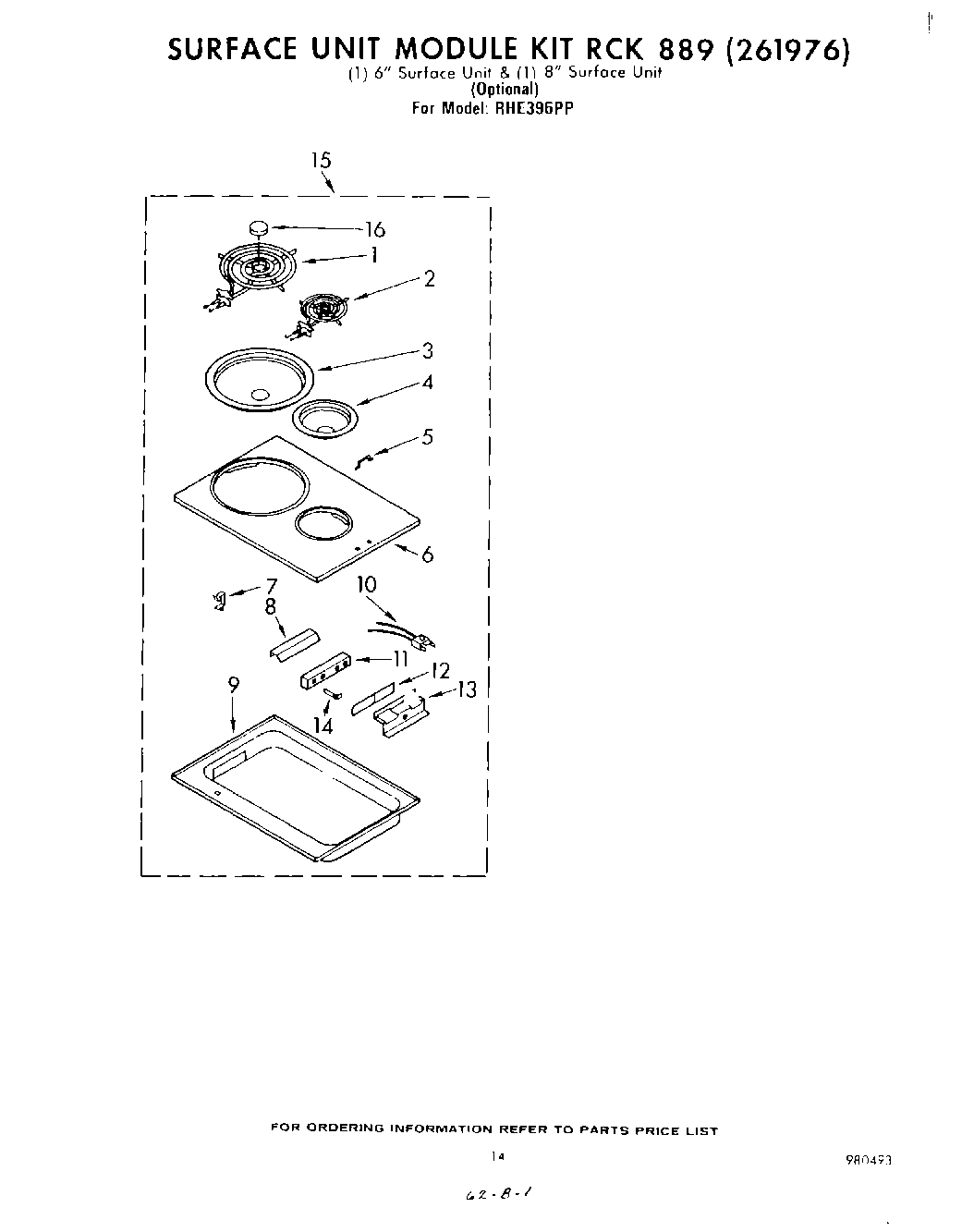

RHE396PP 11 – SECTION

Products

Position	Product
1	WP660533 Whirlpool Oven 8" Surface Element
2	WP660532 Whirlpool Oven Surface Element
3	DRIP BOWL 8" W/HOLE CHROME
4	Bowl, Surface Unit (6“) (2)
5	Handle, Cooktop
6	Cooktop (6“/8“)
7	Clamp, Wire
8	Shield, Wire
9	Pan, Surface Unit
10	BURNER RECEPTACLE KIT
11	WPL 486525
11	Receptacle, Male
12	Insulator, Receptacle
13	Bracket, Ground
13	Pushnut, 1/8
13	WP486754 Whirlpool Compactor Screw
14	Terminal, Male (4)
15	Kit, Surface Unit Module (6“/8“)
16	WPL 868522
