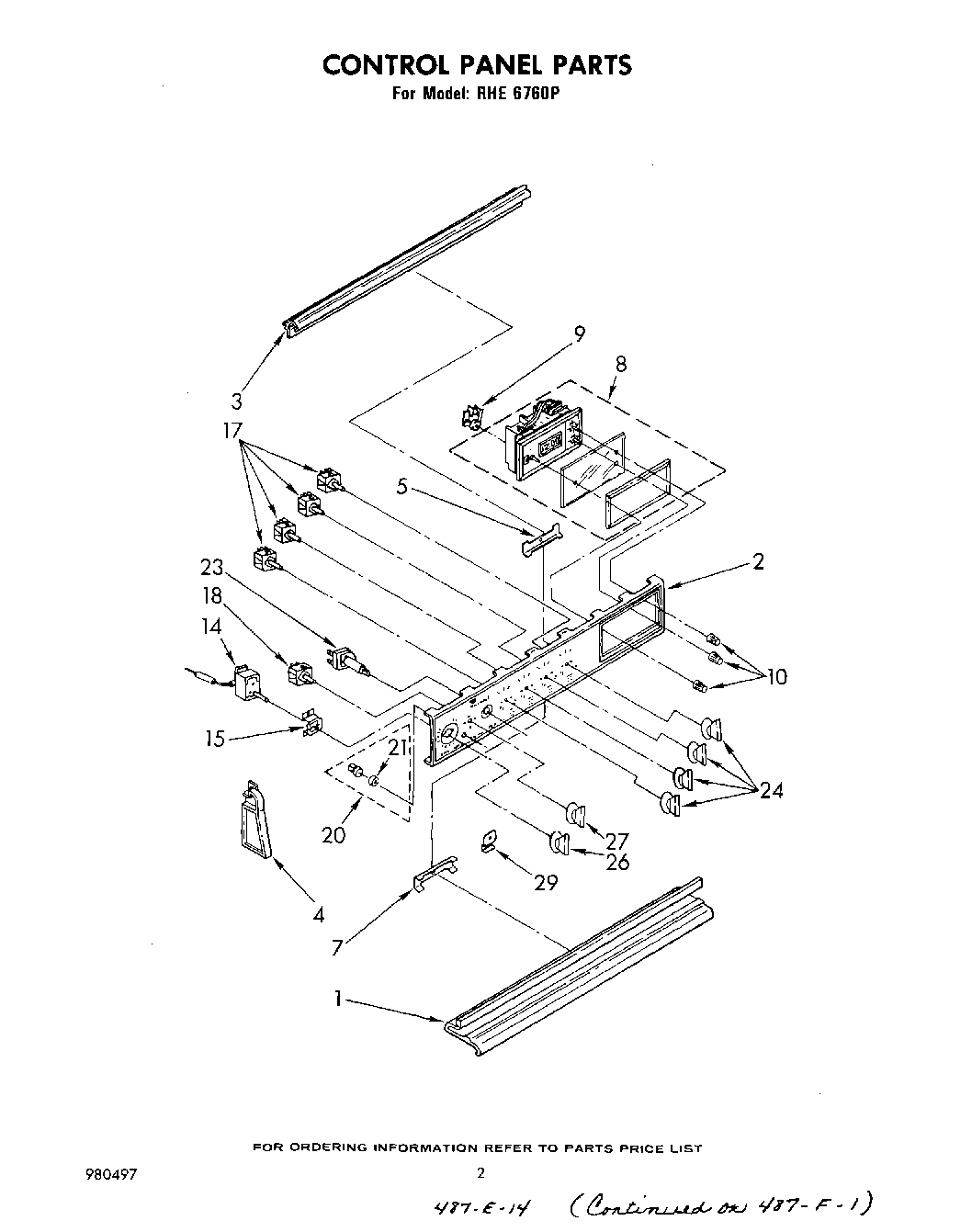

RHE6760P 02 – CONTROL PANEL

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Grille, Bottom
2	Panel, Control
3	Rail, Control Panel (Bottom)
3	Rail, Control Panel (Top)
4	End Cap L.H.
4	End Cap R.H.
5	Bracket, Control Panel (Upper)
7	Screw, 8-32 x 3/8 (2)
7	Bracket, Control Panel (Lower)
8	Timer Digital (Includes Illus. 9 & 10)
9	WPL 866403
10	WPL 241383
14	Thermostat
15	Bracket, Thermostat Mounting
17	W10900107 Whirlpool Oven Surface Element Switch
18	WPL 486525
18	Switch, Oven Selector
20	Light Indicator (Oven)
21	Lens, Signal (Red)
23	WPL 98754
23	Nut, 3/8-27
23	Switch, Oven Light
27	Knob, Control (2) (Oven Selector & Thermostat)
29	Bracket, Control Panel
29	Screw, 10-24 x 1/2 (3)
