RHE6760P 03 – OVEN

RHE6760P 03 – OVEN

Written by

in

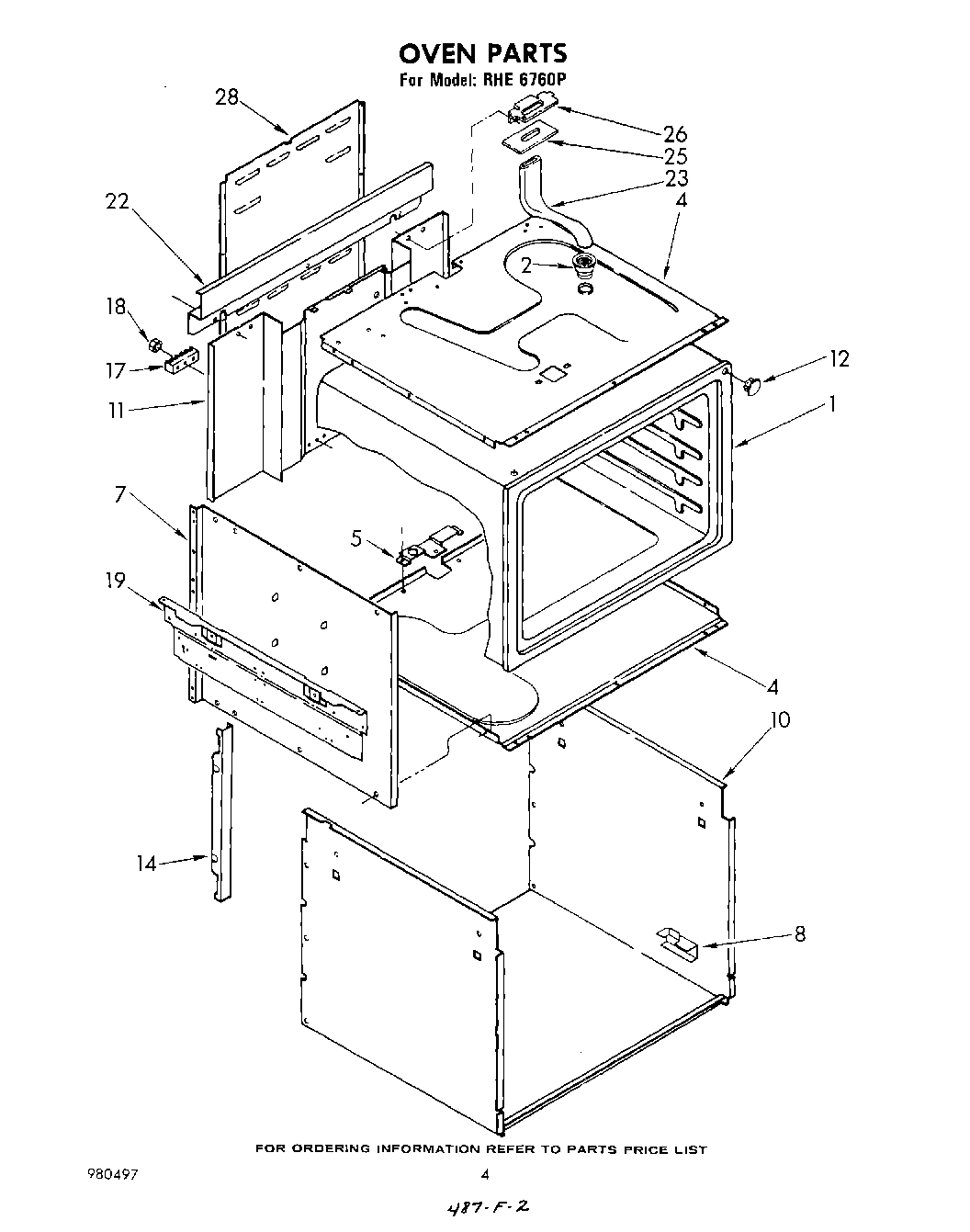

RHE6760P 03 – OVEN

Products

PositionProduct
1Oven, Self-Clean
2Vent Tube (Alternate)
2Vent Tube (Alternate)
2Screw, 10-24 x 3/8 (2)
4Retainer Insulation (Bottom & Top)
5Bracket, Conduit
7Retainer Insulation Side (2)
8Bracket, Wrapper Support (L.H. (2))
8Bracket, Wrapper Support (R.H. (2))
10Wrapper Range
11WPL 865797
11Screw,10-24 x 1/2
11Back Range Lower
12Button, Plug
14Trim, Oven Front (2)
17WP8203546 Whirlpool Terminal Block
17WPL 834649
18Hex Nut, 10-32 (6)
19Panel, Side (Upper) (2)
22Back, Range
23Tube, Oven Vent (Upper)
25Gasket, Vent Tube
26Bracket, Vent Tube
28Screw, 10-24 x 1/2 (3)
28Cover Wiring, Low
28Washer (3)
