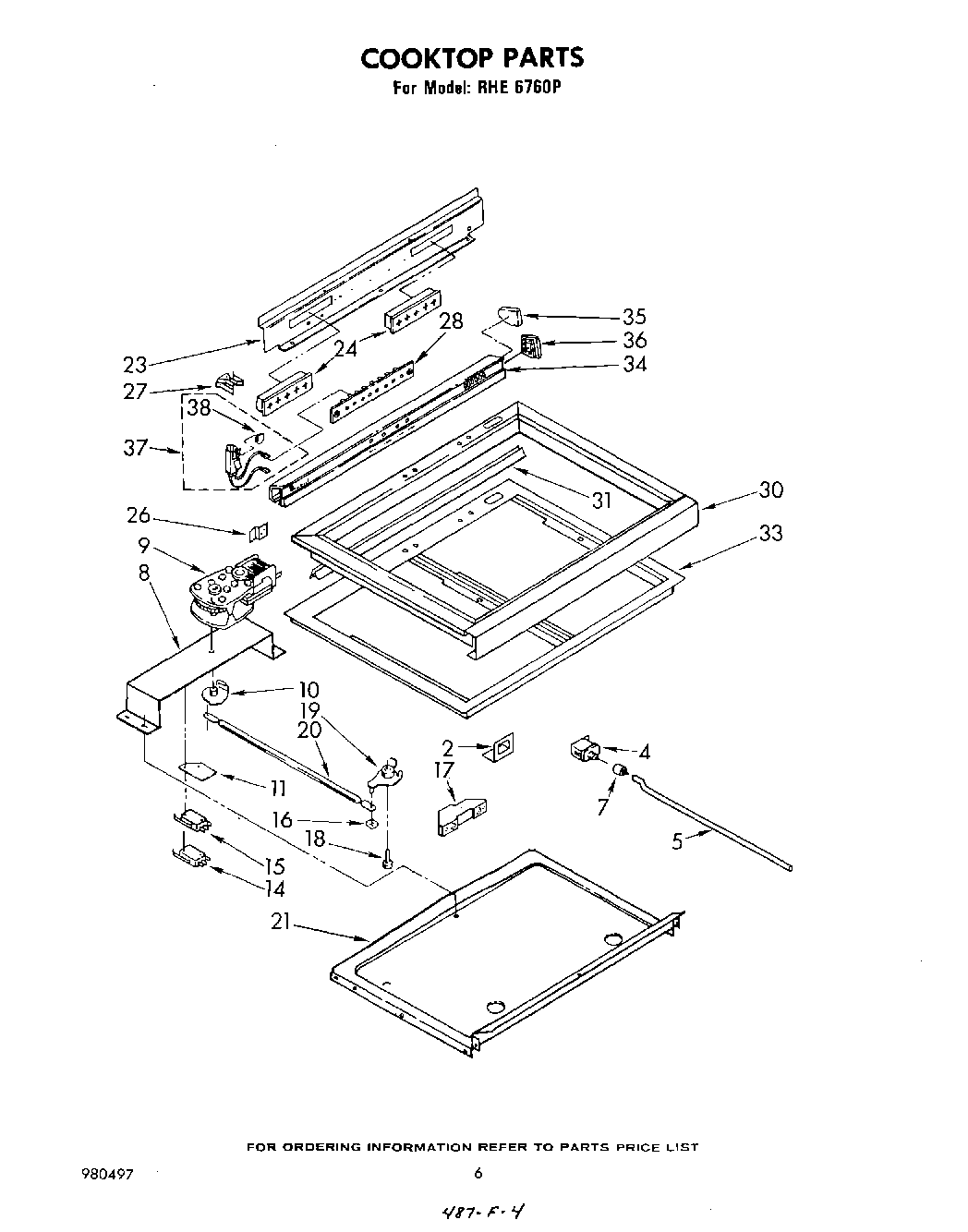

| 2 | Bracket, Door Switch |
| 4 | WP8283288 Whirlpool Door Switch |
| 5 | Push Rod, Switch |
| 7 | Rod End, Switch |
| 8 | Support Latch Motor |
| 9 | Motor (Alternate) |
| 9 | motor, door latch (alternate) |
| 9 | WPL 273225 |
| 9 | Motor (Alternate) |
| 10 | Cam, Door Latch (Alternate) |
| 10 | cam, door latch (alternate) |
| 10 | Cam, Door Latch (Pin, Spring) |
| 11 | Insulator, Limit Switch (3) |
| 14 | Switch, Lower Limit (2) (Alternate) |
| 14 | Switch, Lower Limit (2) (Alternate) |
| 14 | Switch, Lower Limit (2) (Alternate) |
| 15 | Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2)) |
| 15 | Switch, Upper Limit (Alternate) |
| 15 | Switch, Upper Limit (Alternate) |
| 15 | Switch, Upper Limit (Alternate) |
| 16 | Pushnut, 1/4 |
| 17 | Housing, Latch |
| 17 | Washer (2) |
| 18 | Axle, Latch |
| 19 | Latch, Door |
| 19 | alternate |
| 20 | Tie Bar |
| 20 | Cam, Door Latch (Pushnut, 3/16``) |
| 21 | Panel, Subtop |
| 23 | Shield, Wire |
| 23 | WP486579 Whirlpool Air Conditioner Screw |
| 23 | Screw, 10-24 x 1/2 (3) |
| 24 | Receptacle, Female (2) |
| 26 | Bracket, Thermo Bulb |
| 26 | Clip, Receptacle (4) |
| 27 | Terminal, Female (10) |
| 28 | Screw,10-24 x 1/2 |
| 28 | Block, Terminal (Signal Light) |
| 30 | Frame, Cooktop |
| 31 | WPL 866454 |
| 33 | Screw 10-24 x 1/2 |
| 33 | Cooktop (Chrome) |
| 34 | WPL 868836 |
| 35 | WPL 868837 |
| 36 | WPL 868838 |
| 36 | WPL 868839 |
| 37 | WPL 868840 |
| 38 | WPL 868841 |
