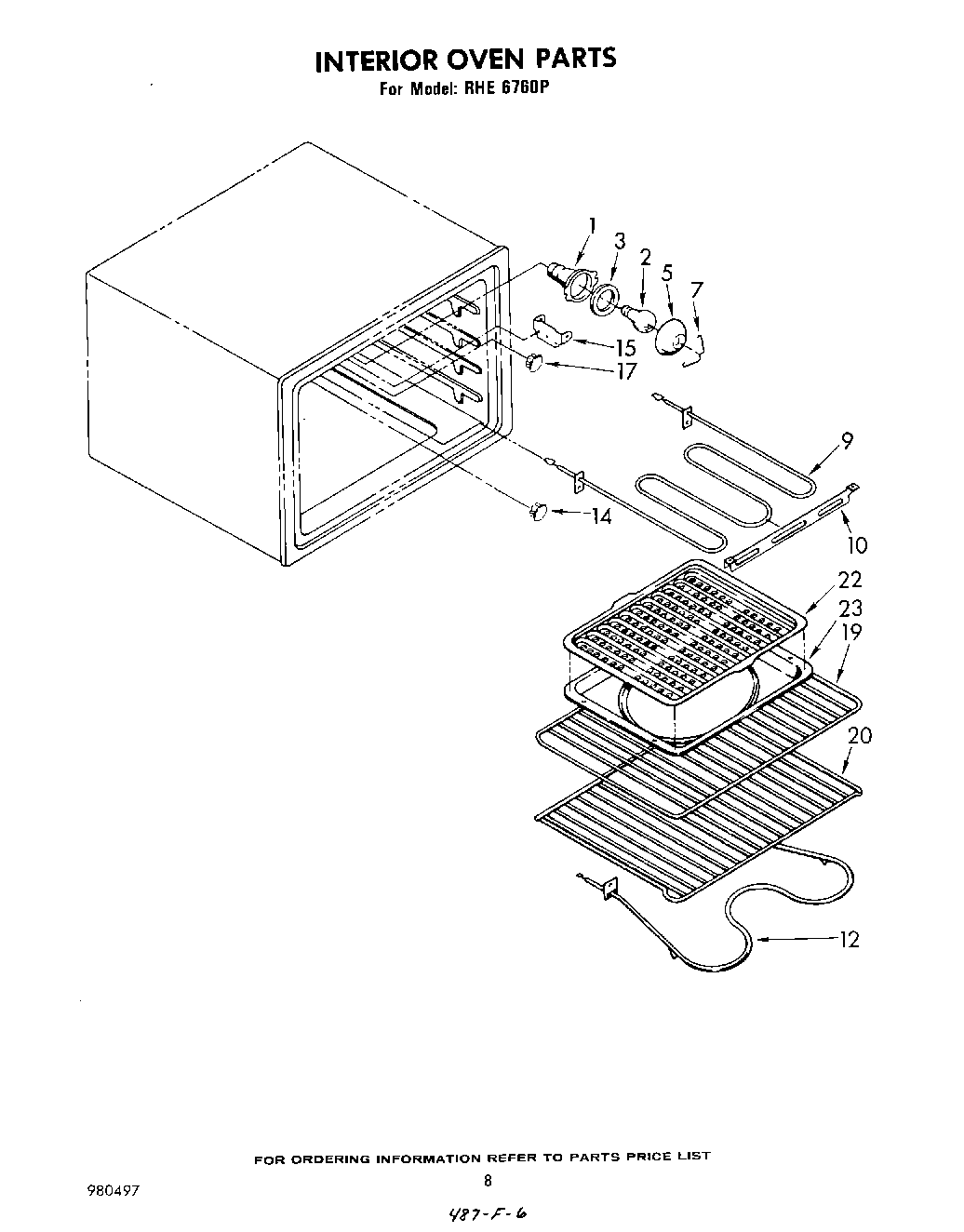

| 1 | WPL 834649 |
| 1 | Socket, Light |
| 1 | Washer (2) |
| 2 | RANGE ONLY 40W 120V APPL BULB |
| 3 | Gasket, Light |
| 5 | Cover, Light |
| 7 | retainer, oven light |
| 9 | Unit, Broil |
| 10 | Hanger, Broil Unit |
| 12 | WP865940 Whirlpool Bake Element |
| 14 | Button, Plug |
| 15 | Unit Bake (Screw, 10-24 x 1/2 (2)) |
| 15 | Bracket, Thermo Bulb |
| 17 | Plug, Button |
| 19 | WPL 865983 |
| 20 | Rack, Oven Offset |
| 22 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 23 | Pan, Broiler |
