RHE6760P 06 – DOOR

RHE6760P 06 – DOOR

Written by

in

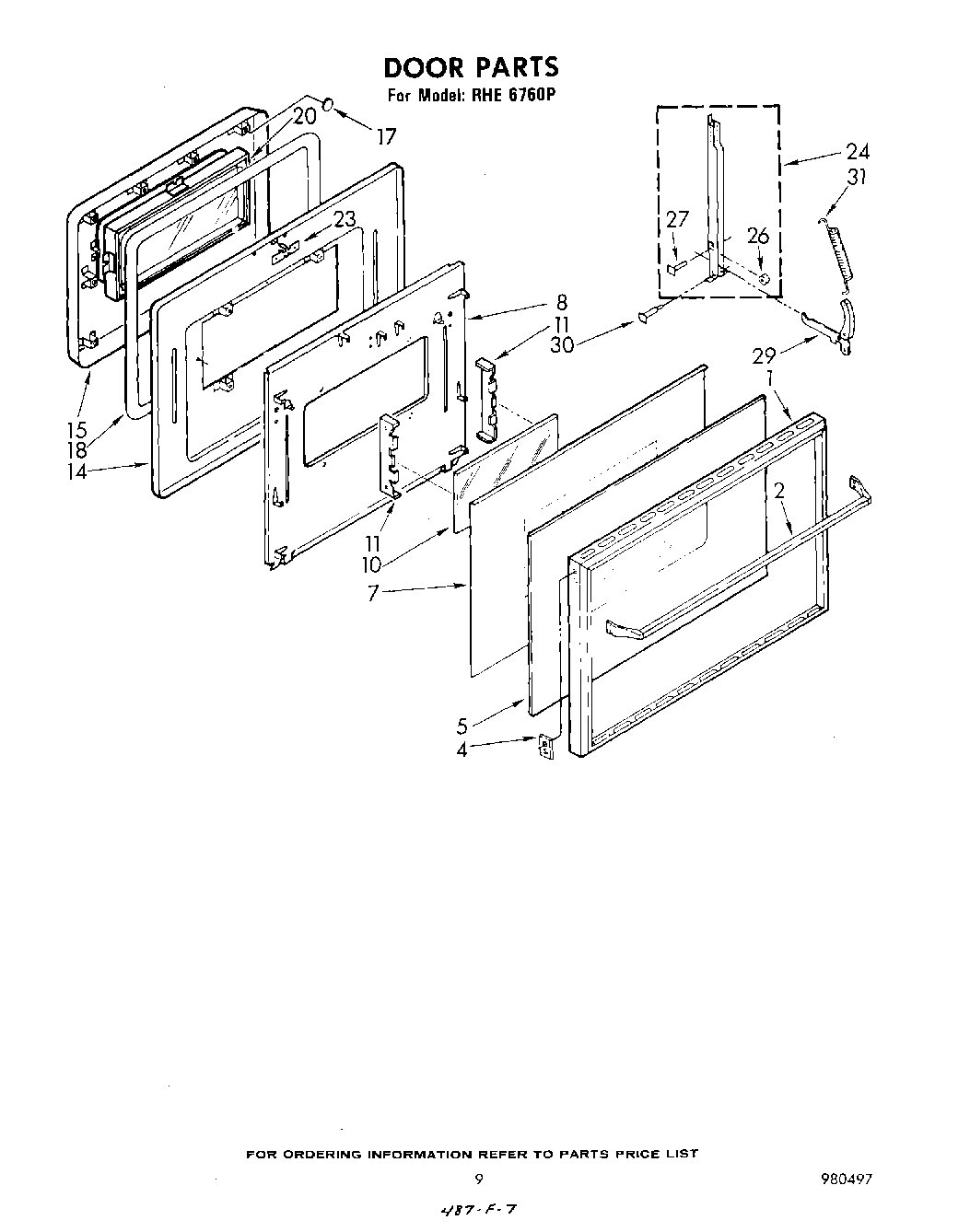

RHE6760P 06 – DOOR

Products

PositionProduct
1Frame, Oven Door
2Handle, Door (Includes Illus. 9)
4Screw, 6-32 x 3/8 (4)
4Nut
4Trim, Frame (2)
5Glass, Outer (Black)
7Panel, Heat Reflector
8Panel, Airwash
8340184 Whirlpool Screw
10Glass, Inner
11Retainer, Glass
14Liner, Oven Door
15Baffle
17Plug Button 3/16“ (2)
18Seal, Oven Door
20Window
20Screw, 10-24 x 1/2 (3)
23Strike
23Screw 10-24 x 1/2
24Screw
24Channel Assembly
26Washer (2)
26Roller, Stop (2)
27Rivet (2)
29Arm Assembly (2)
30Pin, Hinge (2)
31Spring, Door (2)
