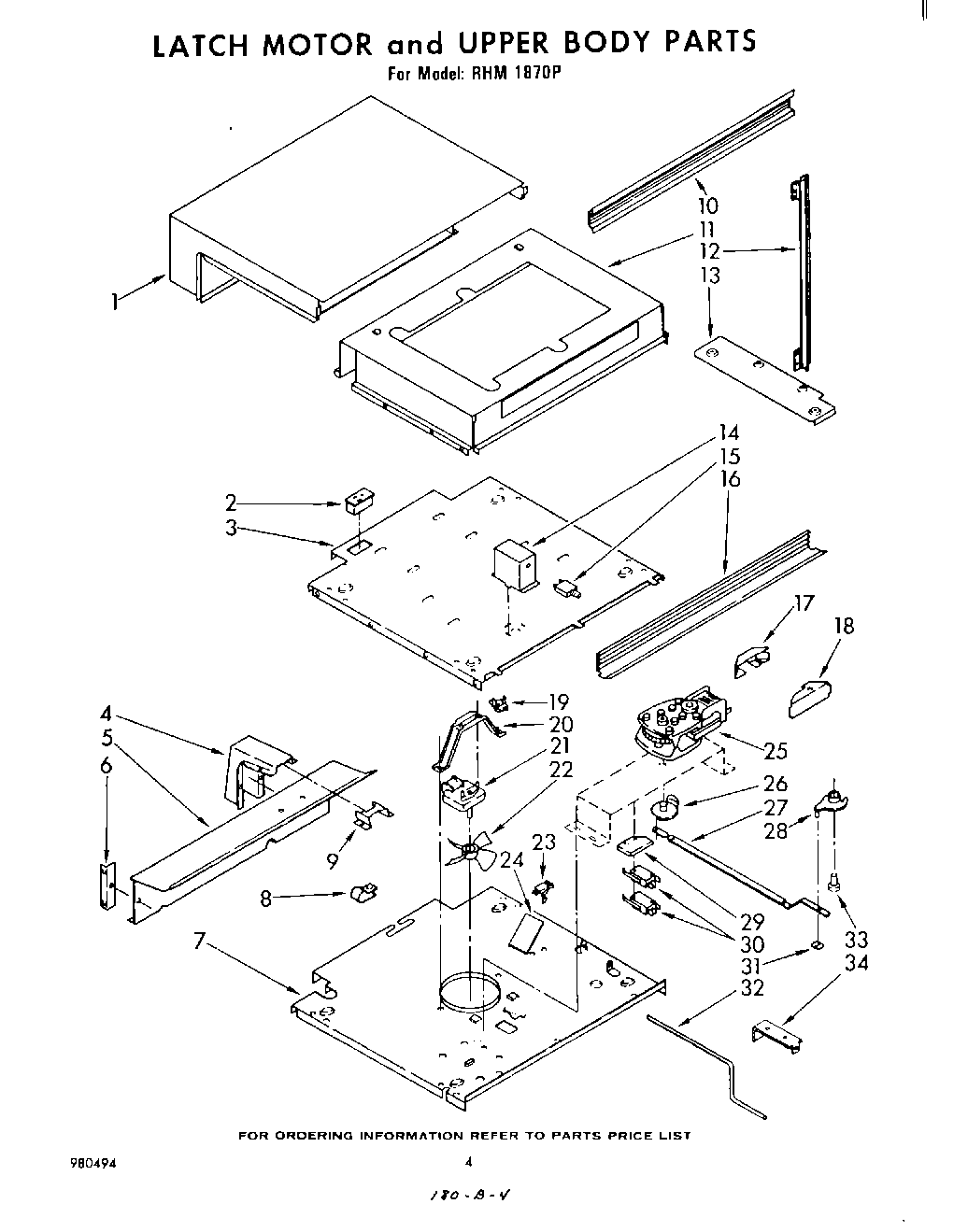

RHM1870P 03 – LATCH MOTOR AND UPPER BODY

Products

Position	Product
1	Duct, Top
2	Outlet, Grounded
3	Top Casing
4	WPL 866412
5	WPL 866411
6	Bracket, Housing (2)
7	Casing, Fan
8	WPL 865797
9	WPL 868222
10	Trim, Top Vent
11	Base, Support
12	Screw, 6-32 x 5/16 (10)
12	Trim, R.H. (Vertical)
12	Trim, L.H. (Vertical)
13	Rail, Mounting R.H.
13	Screw, 5/16-18 x 1/2
13	Rail, Mounting L.H.
14	Box, Circuit Breaker
15	WPL 98754
15	Plate, Reset
15	Circuit Breaker (20 Amp)
16	Trim, Bottom Vent
17	Cover, Latch Housing
18	Housing, Latch
19	279080 Whirlpool Thermostat
19	Washer (3)
19	WP486754 Whirlpool Compactor Screw
20	Screw, 10-24 x 1/2 (3)
20	Bracket, Fan Motor
21	Nut
21	Motor, Fan
22	Fan Blade
22	WPL 866392
23	Switch, Limit
23	Screw (2)
24	Insulator, Switch
25	Motor (Alternate)
25	WPL 273225
26	Cam, Door Latch (Pin, Spring)
26	cam, door latch (alternate)
27	Tie Bar
28	WPL 595119
28	Washer (2)
28	Latch, Door
29	Insulator, Limit Switch (3)
30	Switch, Lower Limit (2) (Alternate)
30	Switch, Upper Limit (Alternate)
30	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
31	Cam, Door Latch (Pushnut, 3/16``)
32	Rod Switch Interlock
33	Pushnut, 1/4
33	Axle, Latch
34	WPL 868799
