RHM1870P 05 – DOOR

RHM1870P 05 – DOOR

Written by

in

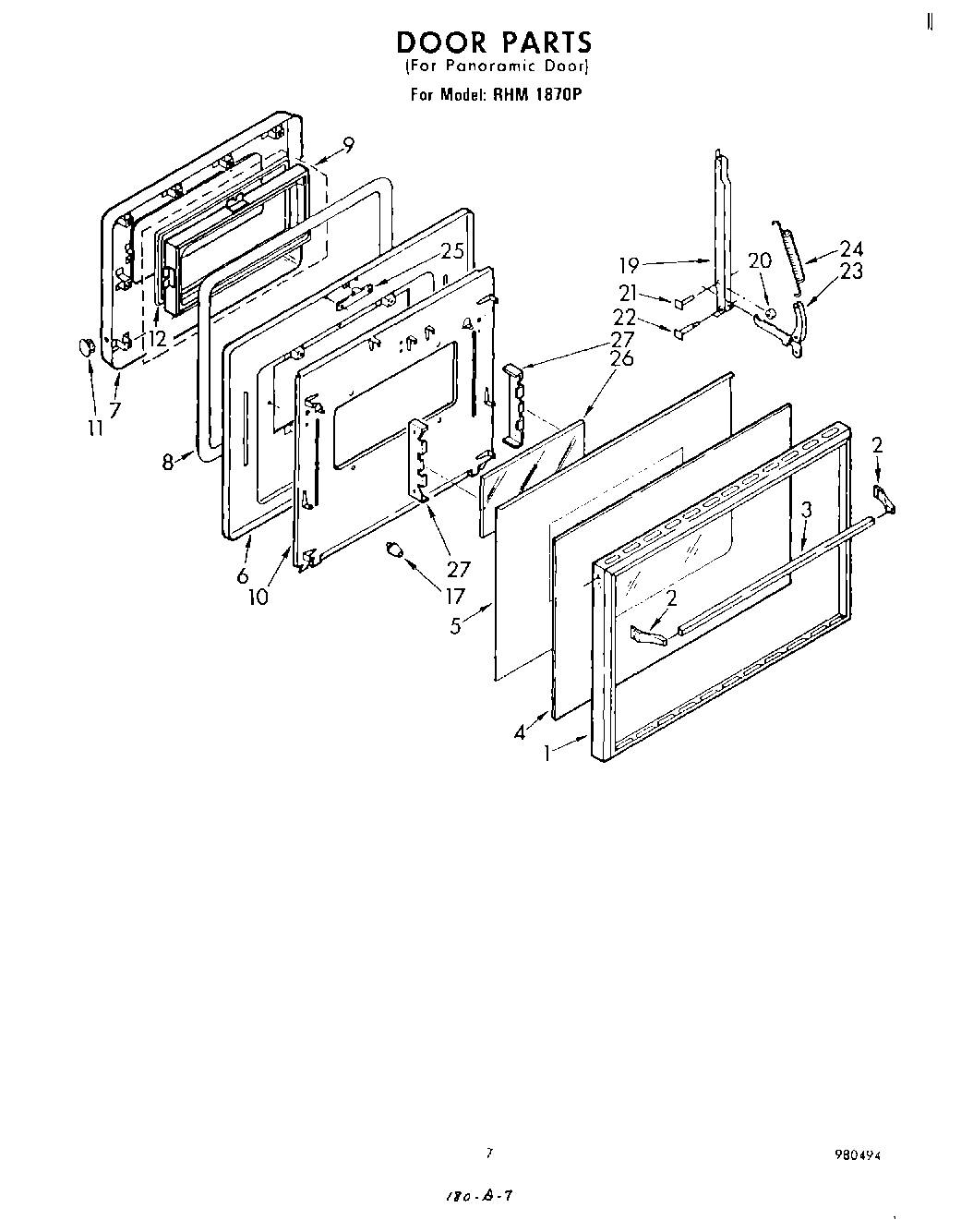

RHM1870P 05 – DOOR

Products

Position	Product
1	Frame, Oven Door
2	Stanchion, Handle (2)
2	Screw, 6-32 x 3/8 (4)
2	Nut
3	Grip, Handle
4	Glass, Outer
5	Panel, Heat Reflector
6	Liner, Oven Door
7	Baffle
8	Seal, Door
9	Window
10	Panel, Air Wash
11	Plug Button 3/16“ (2)
12	“J“ Moulding
17	Bumper (Black) (3)
17	Bumper (Red) (3)
19	Channel Assembly (2)
19	Screw
19	Washer (2)
19	WPL 595119
20	Roller, Stop (2)
21	Nut, Speed
21	Rivet (2)
22	Pin, Hinge (2)
23	Arm, Hinge (2)
24	Spring, Door (2)
25	Strike Assy (Door)
25	Screw, 10-24 x 1/2
25	Washer (4)
25	W10080180 Whirlpool Nut
26	Glass, Inner
27	Retainer, Glass
27	Screw, 10-24 x 1/2 (3)
