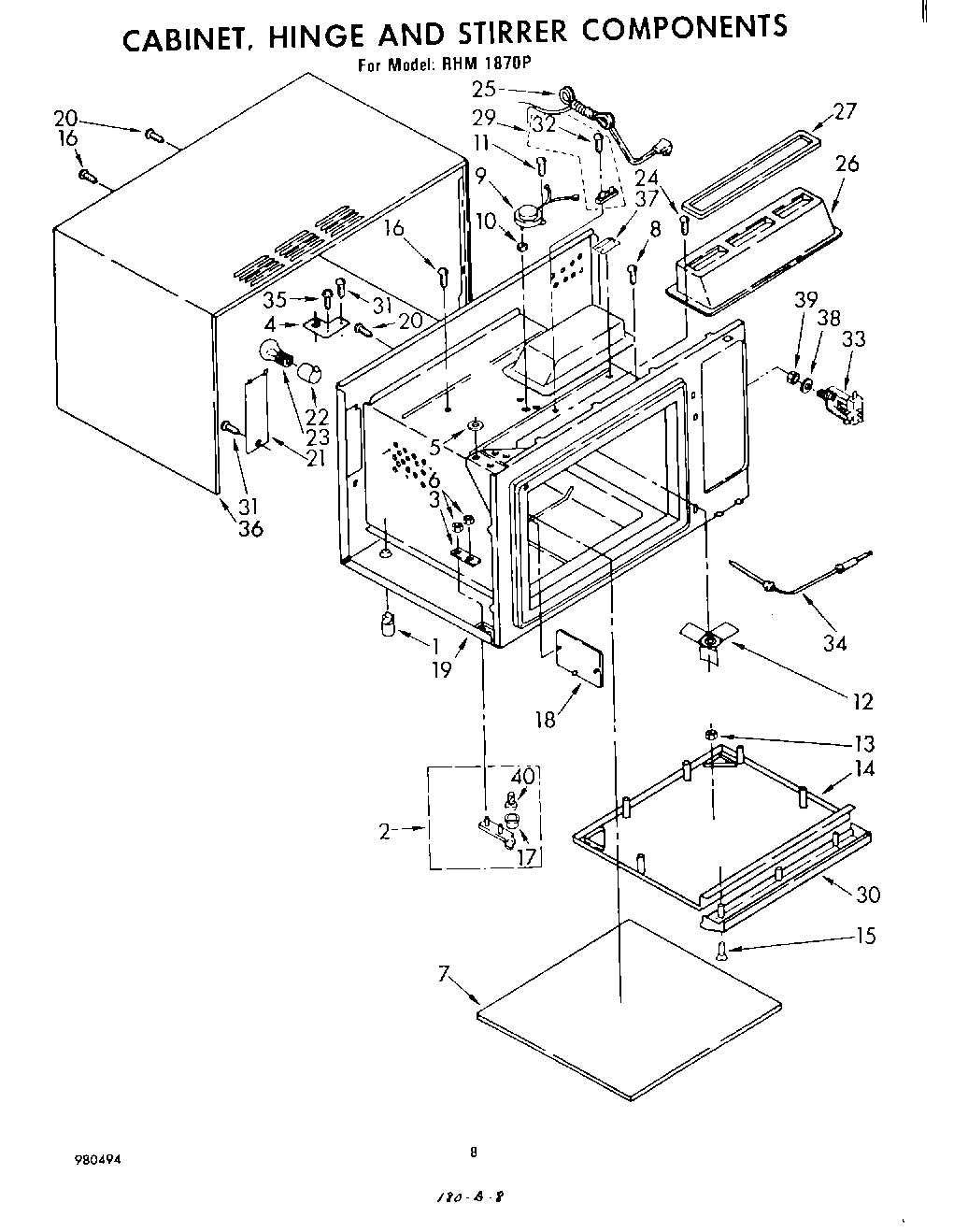

RHM1870P 06 – CABINET, HINGE AND STIRRER

Products

Position	Product
1	Foot, Mounting
2	WPL 328127
2	Hinge, Door (Top)
3	Plate, Hinge
4	Oven Burner Support
5	Washer
7	Base, Ceramic (Install W/Silastic No. 482338)
9	Motor, Stirrer
10	Gasket, Stirrer Motor
11	Screw
12	Stirrer, 3-Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
15	Screw, 10 x 2
16	WP308685 Whirlpool Microwave Screw
17	Bushing
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Screw, 10A x 1/2 (2) (Black)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
24	WP487353 Whirlpool Refrigerator Screw
25	Cord, Power
26	Baffle, Air Exhaust
27	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Fuse, Thermal
30	Cover, Front
31	panel, top (screw, 10a x 3/8 (3))
32	WP965173 Whirlpool Dishwasher Screw
33	Jack, Probe
34	Meat Probe
35	Screw, 10-32 x 1/2
36	Wrapper, Cabinet
37	Fastener, Slide
38	Washer
39	Nut
40	WPL 253893
40	WPL 253886
40	WPL 253883
40	WPL 253901
40	WPL 591014
40	WP261869 Whirlpool Microwave Paint
40	WP482338 Whirlpool Refrigerator Adhesive
40	WPL 253904
40	WPL 253894
40	WPL 253895
40	WPL 253897
40	WPL 253906
40	Wire, 18 Ga. (White) (25 Ft.)
40	WPL 307843
40	WPL 309597
40	WPL 309600
40	WPL 309981
40	Wire, 18 Ga. (Red) (25 Ft.)
40	Wire, 14 Ga. (White) (25 Ft.)
40	Pin, Hinge
40	WPL 253900
40	WPL 310847
40	WPL 980494
