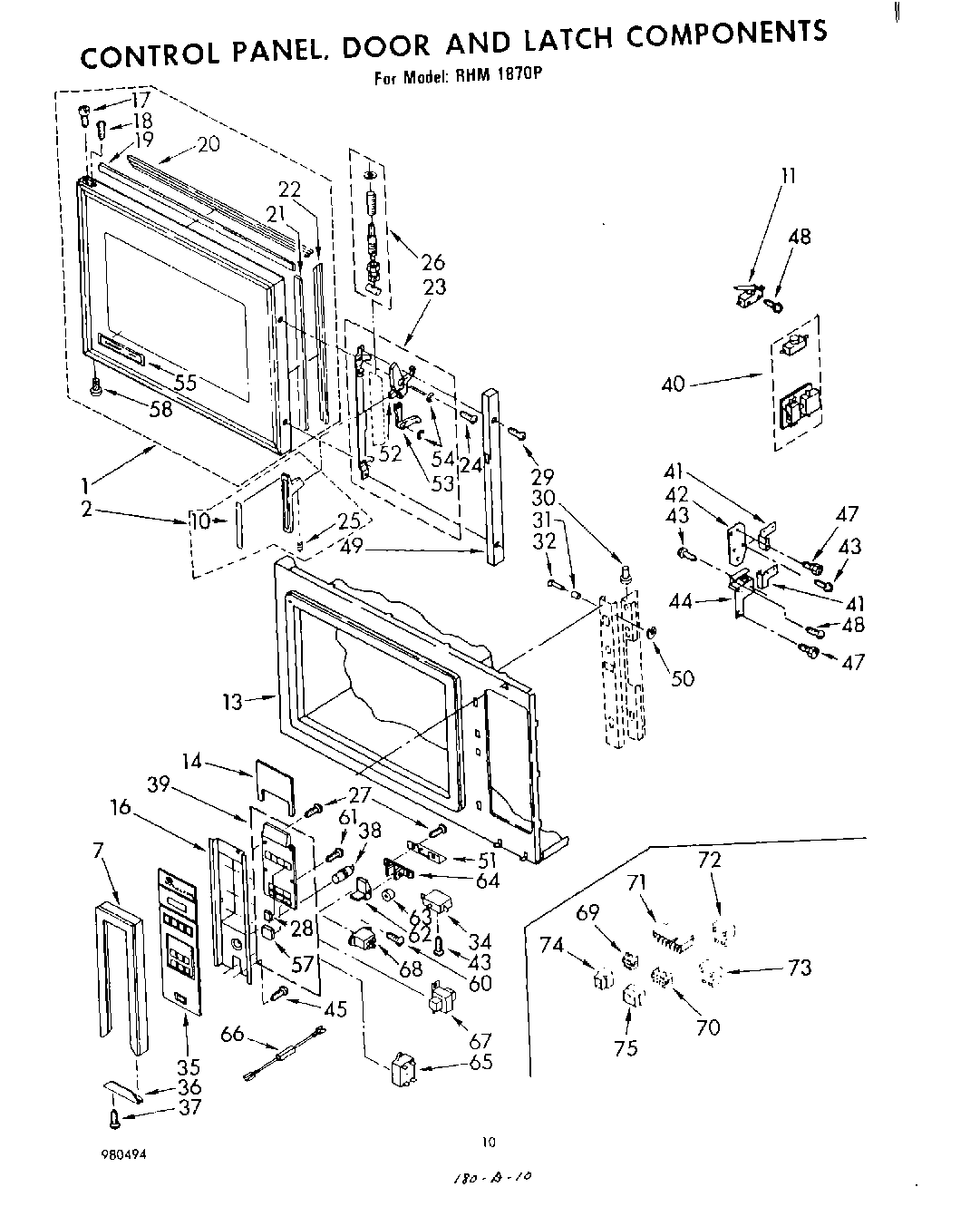

RHM1870P 07 – CONTROL PANEL, DOOR AND LATCH

RHM1870P 07 – CONTROL PANEL, DOOR AND LATCH

Written by

in

RHM1870P 07 – CONTROL PANEL, DOOR AND LATCH

Products

PositionProduct
WPL LIT868547
WPL LIT980494
WPL LIT868855
1Door, Complete
2Handle, Door
7Frame, Control Panel
10Insert, Handle
11Switch, Secondary
13Cabinet (Not A Serviceable Part)
14Barrier
16Bracket, Control
17Screw, 8D x .312 (2)
18Panel, Drawer (Screw, 8-32 (3))
19Seal, Top & Bottom (2)
20Retainer, Top & Bottom Seal (2)
21Seal, Side (2)
22Retainer, Side Seal (2)
232065B0A Models
24WPL 309080
25Setscrew, 8-32
26Plunger, Latch
27Screw, Tapping
28Button, Small
29Screw, 8D x 5/16 (2)
30Bumper
31Roller, Latch
32Pin, Roller (2)
34Switch, Start
35Panel, Control
36End Panel
37Screw, 8-18BT x .88 (2)
38Light, Pilot (On Light)
39Control & Button Assembly
40Switch Kit, Door (Kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails.) (Note: Fuse
41Insulator, Switch (Top)
42Plate, Top Switch Mounting
43Screw
44Bracket, Switch
45WP488627 Whirlpool Refrigerator Screw
47WP250830 Whirlpool Refrigerator Screw
48Screw, 80 x 5/16
49End Cap, Door
50Ring, Retaining (2)
51Bracket, Switch
52Handle, Cam
53Latch, Concealed
54Ring, “E“
55Label, Door
57Button, Large
58Pin, Hinge
60WP486754 Whirlpool Compactor Screw
61Screw
62Lever
63Spacer
64Pivot, Lever
65Relay, Latching
66Resistor, 30HM
67Transformer, Control
68Relay, Door & Control (2
69Plug, Male
70Disconnect Block
71WPL 309606
72WPL 309123
73WPL 308568
74Cap, Female
75WPW10208653 Whirlpool Insulation
75350942 Whirlpool Spray Paint
7572017 Whirlpool Appliance Touch-Up Paint White
75350930 Whirlpool White Spray Paint
75Leveler (Thinner) (2oz.)
75WPL 253882
75WPL 240133
75WPL 253900
75WPL 253622
75FOIL, ALUMINUM OVEN (18“ X 25 )
75285006 Whirlpool Spray
7572032 Whirlpool Touch Up Paint Black
75WPL 253906
75WPL 253904
75WPL 253901
75WPL 309771
75WPL 253897
75WPL 253895
75WPL 253894
75WPL 253893
75Wire, 18 Ga. (Red) (25 Ft.)
75WPL 253886
75WPL 253883
75Wire, 14 Ga. (White) (25 Ft.)
75WPL 866454
75Disconnect Block
75Touch-Up, Oven
75Wire, 18 Ga. (White) (25 Ft.)
