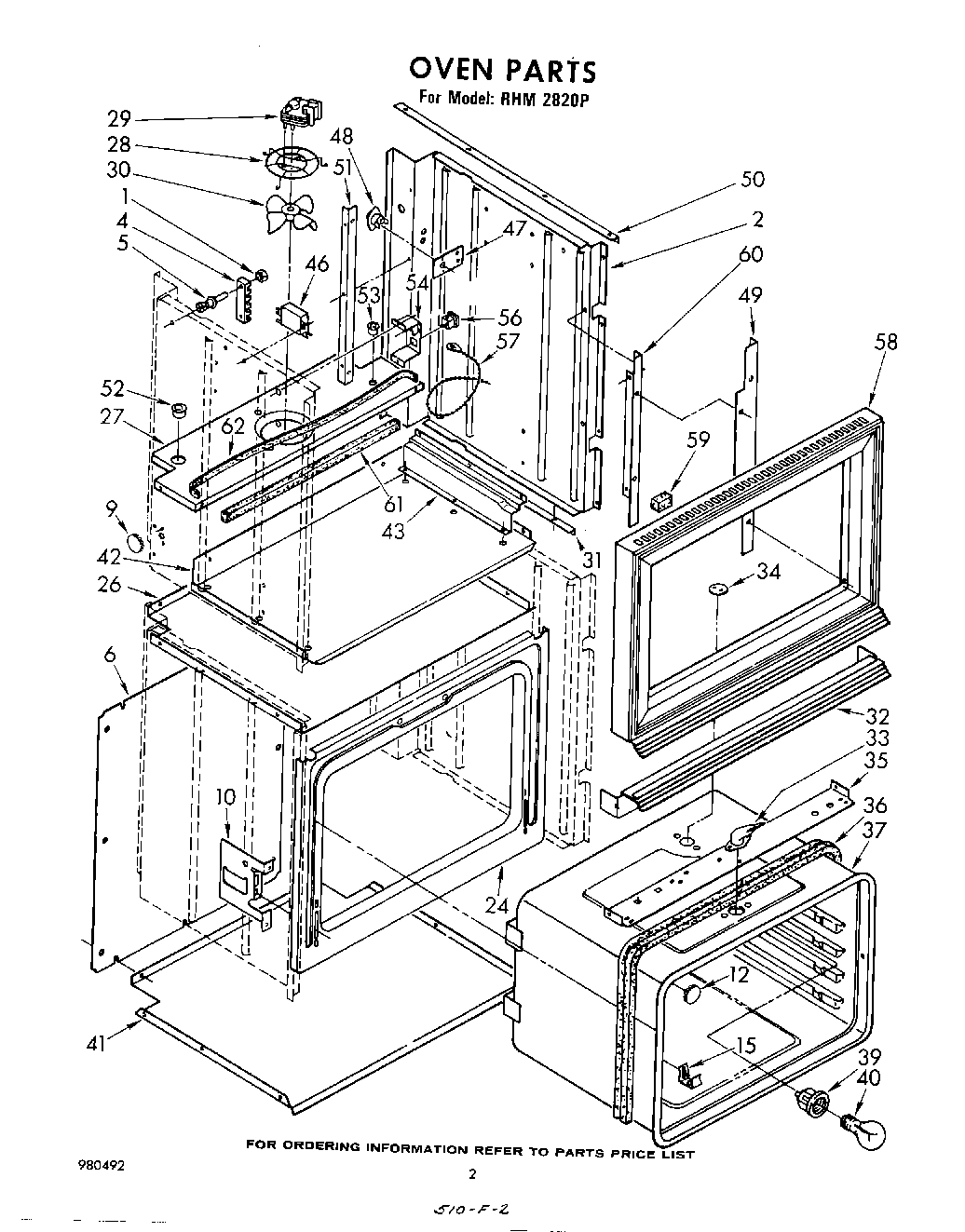

RHM2820P 02 – OVEN

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	SCREW
2	Wrapper Side (L.H.)
2	Wrapper Side (R.H.)
2	Wrapper, Side (2)
4	Terminal, 1/4
4	WP8203546 Whirlpool Terminal Block
5	Rivet, Plastic (2)
6	Cover, Rear
6	(Lower)
9	Plug Button (2)
10	Plate, Hinge (2)
10	Main Chassis (Screw, 10-32 x 1/2)
12	Plug Button
15	98005642 Whirlpool Clip
24	Frame, Front
24	WP486754 Whirlpool Compactor Screw
26	Baffle, Bottom
27	Baffle, Fan
28	Mount, Fan Motor
29	Nut, Hex 6-32 (2)
29	Motor, Fan
30	Blade, Fan
31	Support, Angle (2)
32	Vent, Hood (30“)
33	Vent Tube (Lower Oven)
34	Plate, Cover
35	Screw, 10-32 x 5/8 (4)
35	Baffle, Top Insulation
36	Unit, Surface 6“ (240V) (2) (Alt.)
37	Screw, 10A x 1/2
37	Oven
39	Screw (10-12 x .875)
39	Socket, Oven Light (Alt.)
40	RANGE ONLY 40W 120V APPL BULB
41	WPL 246134
41	Cover, Bottom (2)
42	Panel, Divider
43	Bracket, Support
46	Screw, 80 x 5/16
46	Ballast
47	Bracket, Thermostat
48	Screw
48	Thermostat
49	Angle
49	Angle, R.S.
49	WP488627 Whirlpool Refrigerator Screw
50	WPL 308401
51	Support Angle (2)
52	Bushing, Wire
53	WPL 308526
54	WPL 308199
54	WP308685 Whirlpool Microwave Screw
56	WPL 308237
57	WPL 308241
58	Screw, 10A x 1/2 (2) (Black)
58	WPL 309197
58	WPL 328066
59	WPL 308396
60	WPL 308496
61	WP854334 Whirlpool Air Conditioner Sealing Strip
