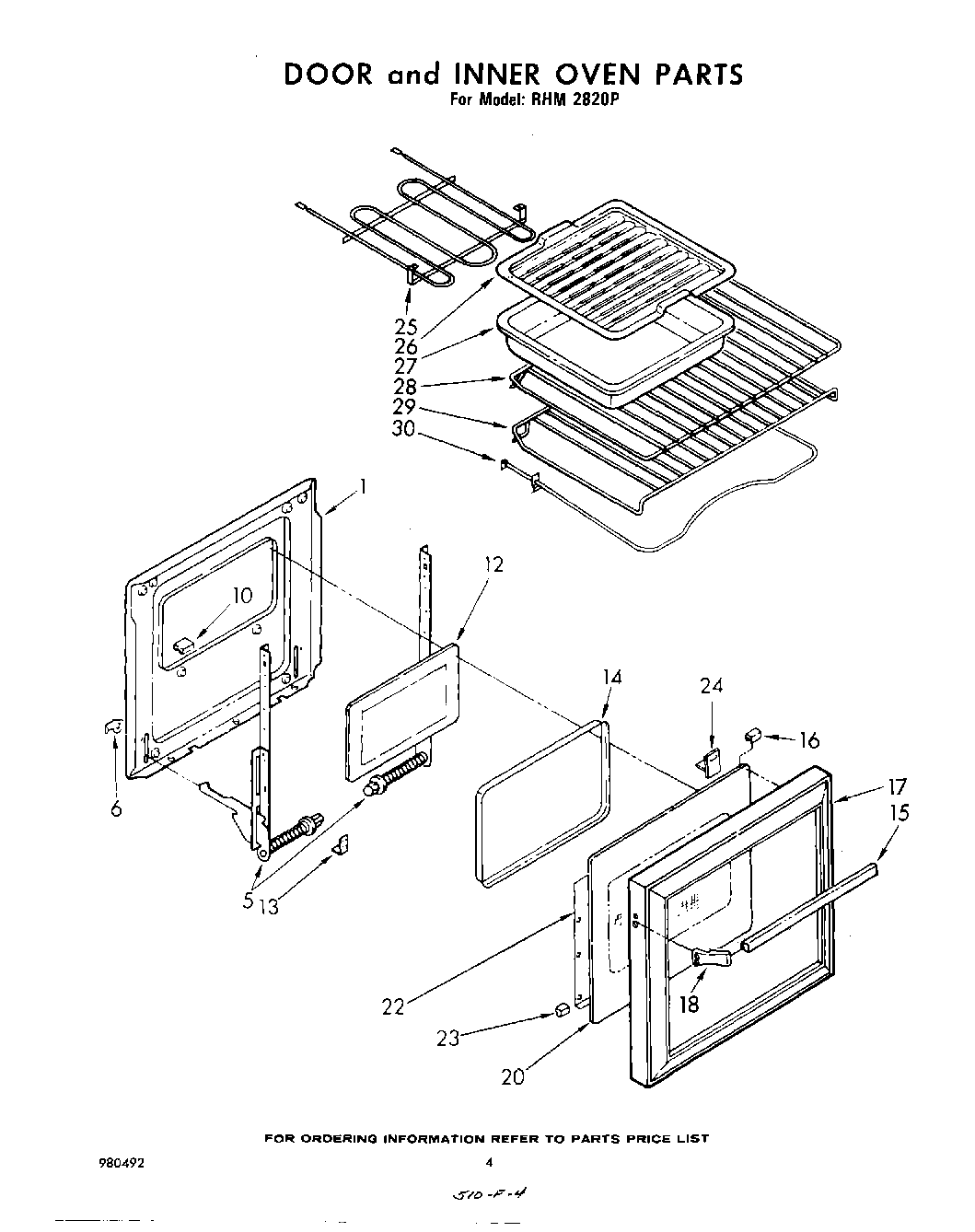

RHM2820P 03 – DOOR AND INNER OVEN

Products

PositionProduct
1Liner, Door
1Washer, Fiber
1panel, top (screw, 10a x 3/8 (3))
5SCREW
5Bar, Torsion (L.H.)
5Bar, Torsion (R.H.)
5Bar, Torsion (Pushnut (2))
6Door Stop Replacement Kit
10spacer, insulation baffle (4)
12glass, inner 30“
13Support, Torsion Bar (2)
14seal, pano glass
15Handle (Includes Illus. 18)
16channel, rubber (4)
17Screw, 10A x 1/2
17Frame, Door Front
18Cap, Handle End (2)
18WP488627 Whirlpool Refrigerator Screw
20Glass, Outer
22WP308685 Whirlpool Microwave Screw
22Baffle
23Cushion (10)
24Brace, Glass (10)
24Nut, Snap-In (2)
25W11656009 Whirlpool Broil Element
264396923 Whirlpool Broil Pan Set Gray Porcelain
28Rack, Flat
29Rack, Offset
30Screw, 10-32 x 5/8 (4)
30326793 Whirlpool Bake Element
