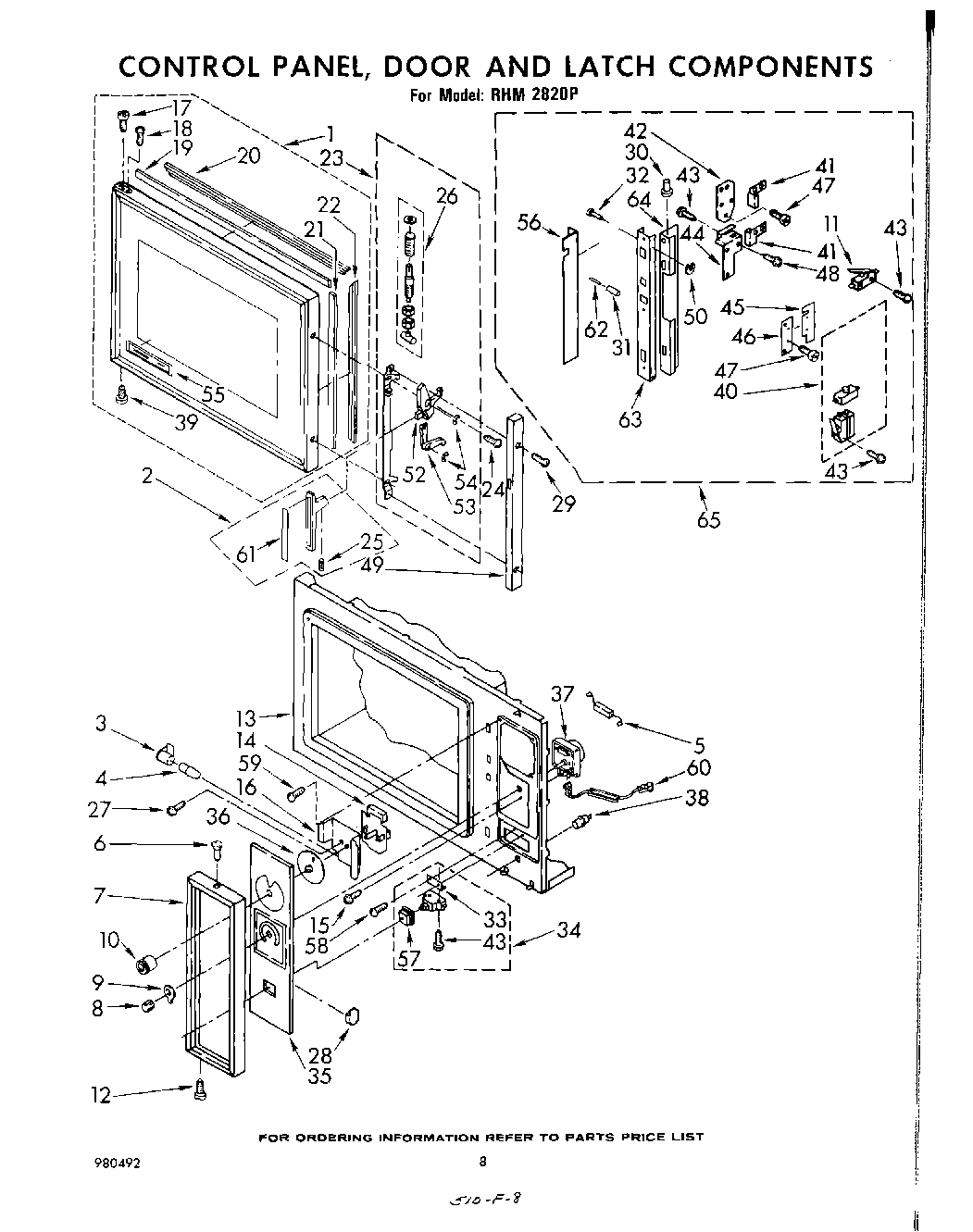

RHM2820P 05 – CONTROL PANEL, DOOR AND LATCH

Products

Position	Product
1	Door, Complete
2	Handle, Door
3	Push Switch – Oven Light
4	Push Switch (Lock-Unlock)
5	Resistor, 10 Ohm
6	WP488627 Whirlpool Refrigerator Screw
7	Clock w/1 Hr. Timer
8	Knob Assembly (2)
9	Skirt, Dial
10	Knob, Meal Timer
11	Switch, Secondary
12	WP965173 Whirlpool Dishwasher Screw
13	Cabinet (Not A Serviceable Part)
14	Timer, Minute
15	WP487353 Whirlpool Refrigerator Screw
16	Bracket, Timer
17	Screw, 8D x .312 (2)
18	Panel, Drawer (Screw, 8-32 (3))
19	Seal, Top & Bottom (2)
20	Retainer, Top & Bottom Seal (2)
21	Seal, Side (2)
22	Retainer, Side Seal (2)
23	2065B0A Models
25	Setscrew, 8-32
26	Plunger, Latch
27	screw, 6-32 x 1/4 (2)
28	Clip, Panel Mounting (12)
29	Screw, 8D x 5/16 (2)
30	Bumper
31	Roller, Latch
32	Pin, Roller (2)
33	Bracket, Switch Mounting
34	Switch, Push-Start
35	Panel, Control
36	Dial, Timer
37	Power Selector (Includes Illus. 5)
38	Light, Pilot (On Light)
39	Pin, Hinge
40	Switch Kit, Door (Kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3
41	Insulator, Switch (Top)
42	Plate, Top Switch Mounting
43	Screw
44	Bracket, Switch
45	Insulator, Switch
46	Plate, Switch Mounting
47	WP250830 Whirlpool Refrigerator Screw
48	WPL 309080
49	End Cap, Door
50	Ring, Retaining (2)
52	Handle, Cam
53	Latch, Concealed
54	Ring, “E“
55	Mounting Panel-Controls
56	Shield, Light
57	WPL 308694
58	Screw
59	WP681249 Whirlpool Screw Assembly
60	Resistor, 30HM
61	Insert, Handle
62	Pin, Straight
63	Guide, Channel (Not A Serviceable Part)
64	Slide, Channel (Not A Serviceable Part)
65	WPL 328743
