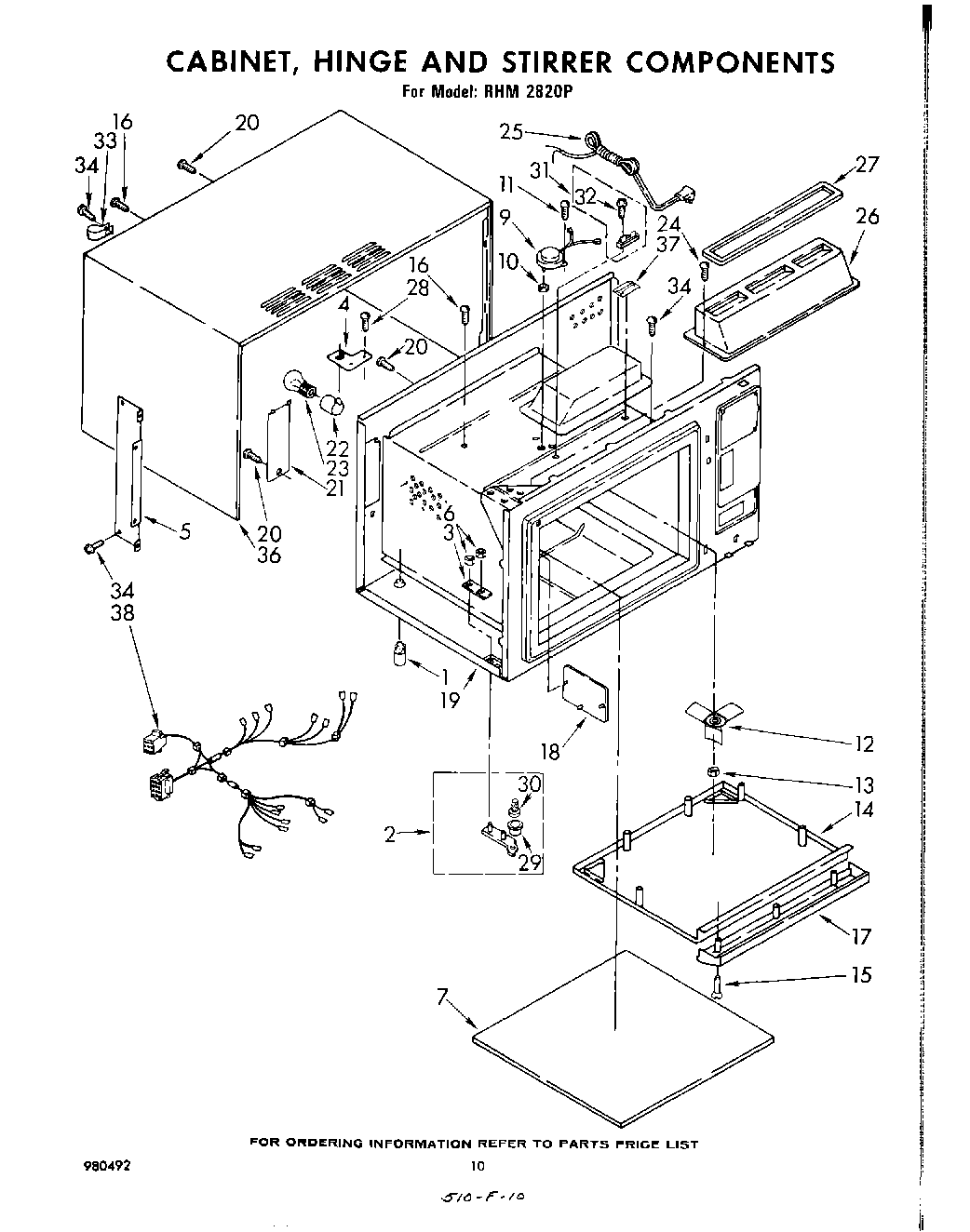

RHM2820P 06 – CABINET, HINGE AND STIRRER

Products

Position	Product
1	Foot, Mounting
2	Hinge, Door (Top)
2	WPL 328127
3	Plate, Hinge
4	Oven Burner Support
5	Bracket, Mounting
7	Base, Ceramic (Install W/Silastic No. 482338)
9	Motor, Stirrer
10	Gasket, Stirrer Motor
11	Screw
12	Stirrer, 3-Blade
13	Nut, Hex (1/4-20)
14	Cover, Stirrer
15	Screw, 10 x 2
17	Cover, Front
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Main Chassis (Screw, 10-32 x 1/2)
21	Cover, Lamp
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
24	WP487353 Whirlpool Refrigerator Screw
25	Cord, Power
26	Baffle, Air Exhaust
27	WP854334 Whirlpool Air Conditioner Sealing Strip
28	Screw, 10-32 x 1/2
29	Bushing
30	Pin, Hinge
31	Fuse, Thermal
32	WP965173 Whirlpool Dishwasher Screw
33	488946 Whirlpool Air Conditioner Clamp
34	WP308685 Whirlpool Microwave Screw
36	Wrapper, Cabinet
37	Fastener, Slide
38	Harness, Wiring (Microwave Main)
