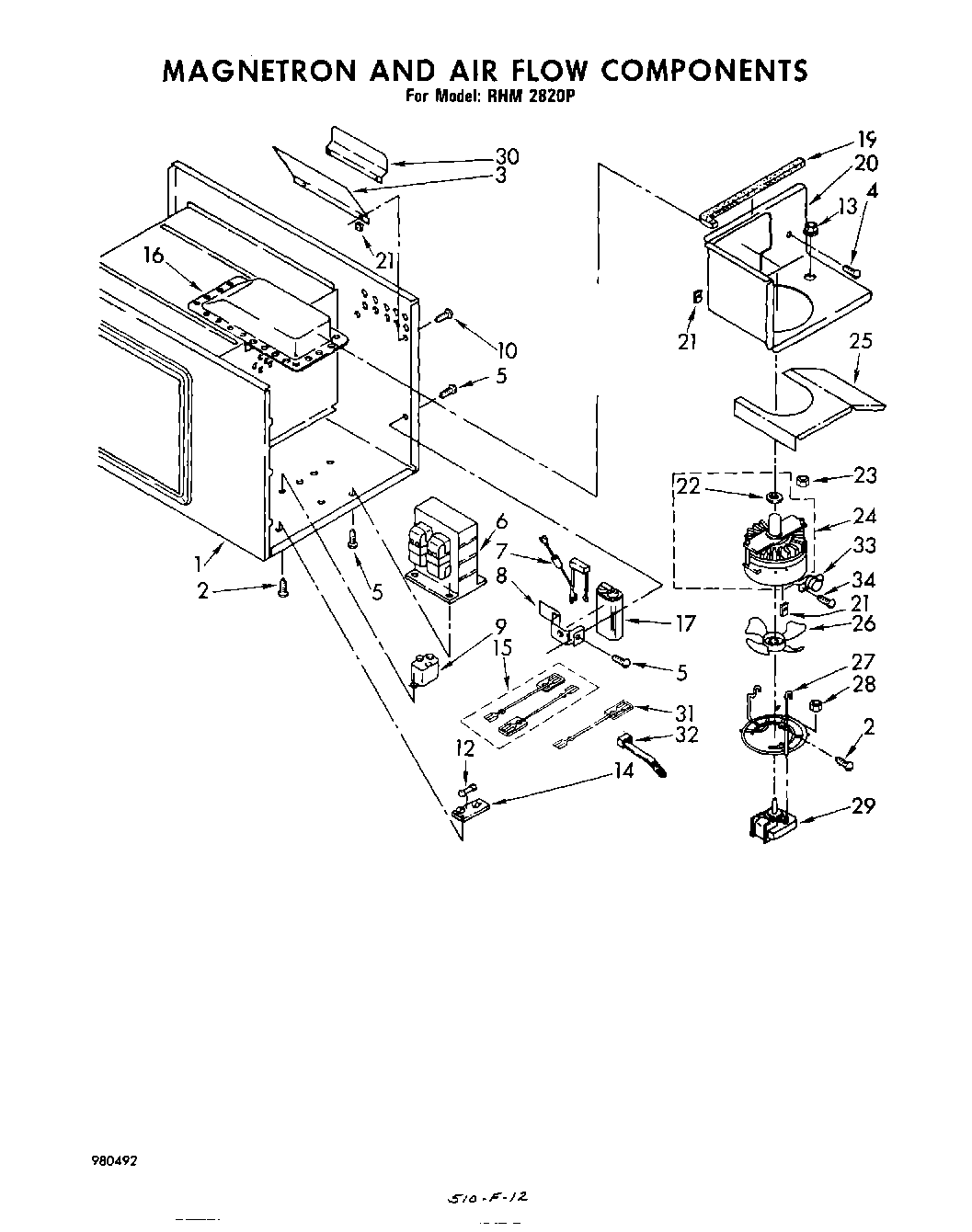

RHM2820P 07 – MAGNETRON AND AIR FLOW , NOT ILLUSTRATED

Products

PositionProduct
FOIL, ALUMINUM OVEN (18“ X 25 )
799344 Whirlpool Refrigerator Paint
Enamel, Black (1 Qt. Uncut)
1Cabinet (Not A Serviceable Part)
2WP308685 Whirlpool Microwave Screw
3Deflector, Air
4panel, top (screw, 10a x 3/8 (3))
5Main Chassis (Screw, 10-32 x 1/2)
6Transformer
7Rectifier, High Voltage (Includes Illus. 15)
8Bracket, Capacitor
9Relay, Latching
10WP965173 Whirlpool Dishwasher Screw
12WPW10017410 Whirlpool Fuse
13Bushing, Wire
14Block, Fuse
15Wire, High Voltage Magnetron (2) (Use W/Panasonic Magnetron)
15Wire Kit, High Voltage (Magnetron)
16Guide, Wave (Riveted At Assembly, Not Serviceable)
17Capacitor
19WP854334 Whirlpool Air Conditioner Sealing Strip
20Duct, Cooling Air
21Clip (2)
22Gasket, Magnetron (Use W/Panasonic Magnetron)
22Gasket, Magnetron (Use W/Litton Magnetron)
23Flange Nut (4)
23WP112432 Whirlpool Nut Assembly
24Magnetron Kit, Panasonic
25Spacer (2 Req)
26Blade, Fan
27Mount, Fan Motor
28Nut, Hex (6-32)
29Motor, Fan
30Deflector, Exhaust
31Wire, High Voltage (Capacitor)
32WPW10339879 Whirlpool Wire Tie
33Thermostat
34WPL 309950
34Screw
34WPW10208653 Whirlpool Insulation
34WPL 310847
34350942 Whirlpool Spray Paint
34WPL 240133
34WPL 308234
3472017 Whirlpool Appliance Touch-Up Paint White
34WPL 253622
34WPL 980492
34WPL 309977
34WPL 253882
34WPL 253889
34WPL 253903
34WPL 253895
34350930 Whirlpool White Spray Paint
34285006 Whirlpool Spray
34WPL 253906
34WPL 253904
34WPL 253901
34Browning Tray (Micro)
34WPL 253897
34WPL 253894
34WPL 253893
34WPL 253886
34Wire, 18 Ga. (White) (25 Ft.)
34Wire, 18 Ga. (Red) (25 Ft.)
34Wire, 14 Ga. (White) (25 Ft.)
3472032 Whirlpool Touch Up Paint Black
34WP482338 Whirlpool Refrigerator Adhesive
34WP261869 Whirlpool Microwave Paint
34WPL 591014
34Leveler (Thinner) (2oz.)
34WPL 253900
34WPL 799351
34Touch-Up C
34WPL 253883
