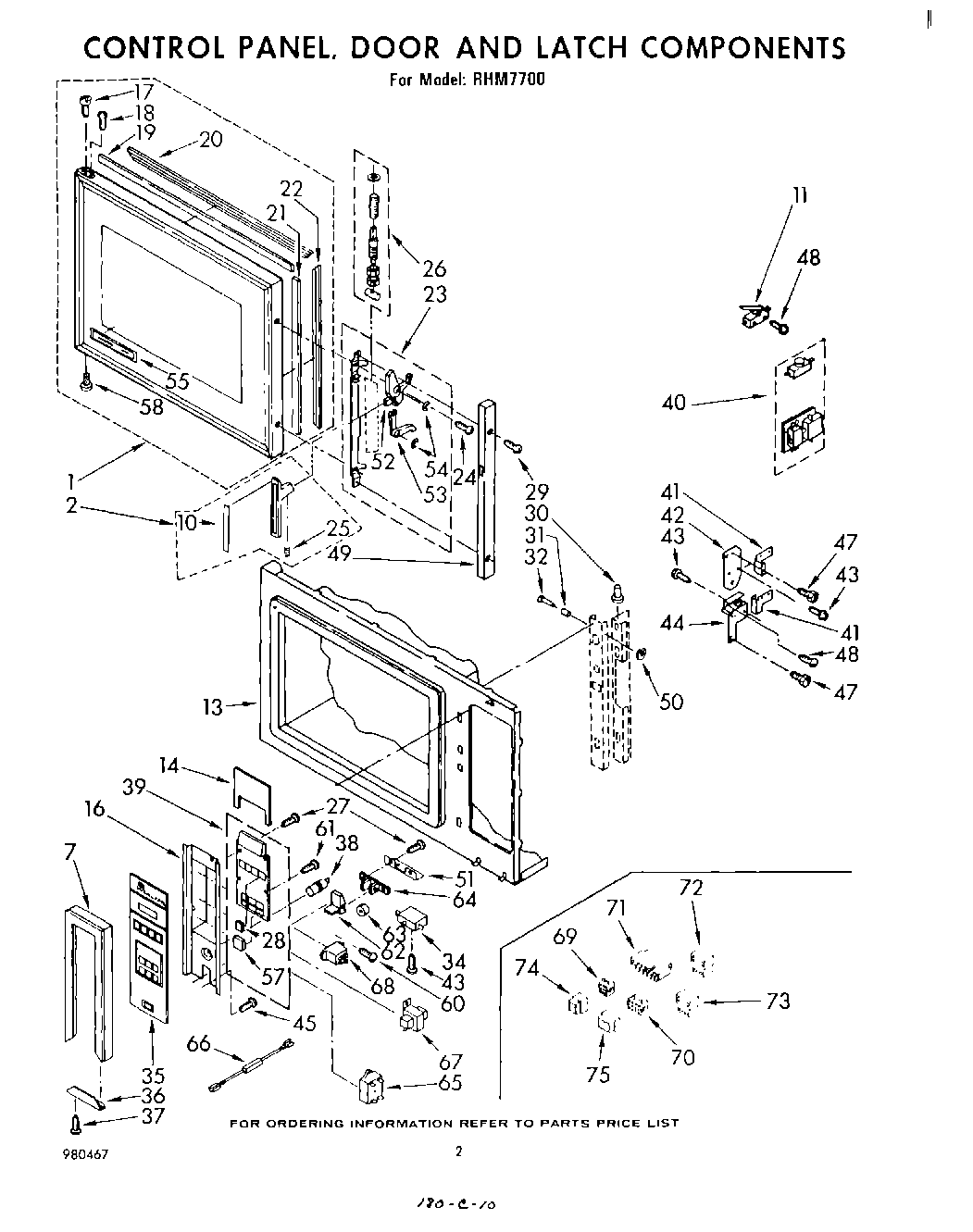

RHM7700 02 – SECTION

Products

Position	Product
1	Door, Complete
2	Handle, Door
7	Frame, Control Panel
10	Insert, Handle
11	Switch, Secondary
13	Cabinet (Not A Serviceable Part)
14	Barrier
16	Bracket, Control
17	Screw, 8D x .312 (2)
18	Panel, Drawer (Screw, 8-32 (3))
19	Seal, Top & Bottom (2)
20	Retainer, Top & Bottom Seal (2)
21	Seal, Side (2)
22	Retainer, Side Seal (2)
23	2065B0A Models
24	WPL 309080
25	Setscrew, 8-32
26	Plunger, Latch
27	Screw, Tapping
28	Button, Small
29	Screw, 8D x 5/16 (2)
30	Bumper
31	Roller, Latch
32	Pin, Roller (2)
34	Switch, Start
35	Panel, Control
36	End Panel
37	Screw, 8-18BT x .88 (2)
38	Light, Pilot (On Light)
39	Control & Button Assembly
40	Switch Kit, Door (Kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails.) (Note: Fuse
41	Insulator, Switch (Top)
42	Plate, Top Switch Mounting
43	Screw
44	Bracket, Switch
45	WP488627 Whirlpool Refrigerator Screw
47	WP250830 Whirlpool Refrigerator Screw
48	Screw, 80 x 5/16
49	End Cap, Door
50	Ring, Retaining (2)
51	Bracket, Switch
52	Handle, Cam
53	Latch, Concealed
54	Ring, “E“
55	Label, Door
57	Button, Large
58	Pin, Hinge
60	WP486754 Whirlpool Compactor Screw
61	Screw
62	Lever
63	Spacer
64	Pivot, Lever
65	Relay, Latching
66	Resistor, 30HM
67	Transformer, Control
68	Relay, Door & Control (2
69	Plug, Male
70	Disconnect Block
71	WPL 309606
72	WPL 309123
73	WPL 308568
74	Cap, Female
75	Disconnect Block
