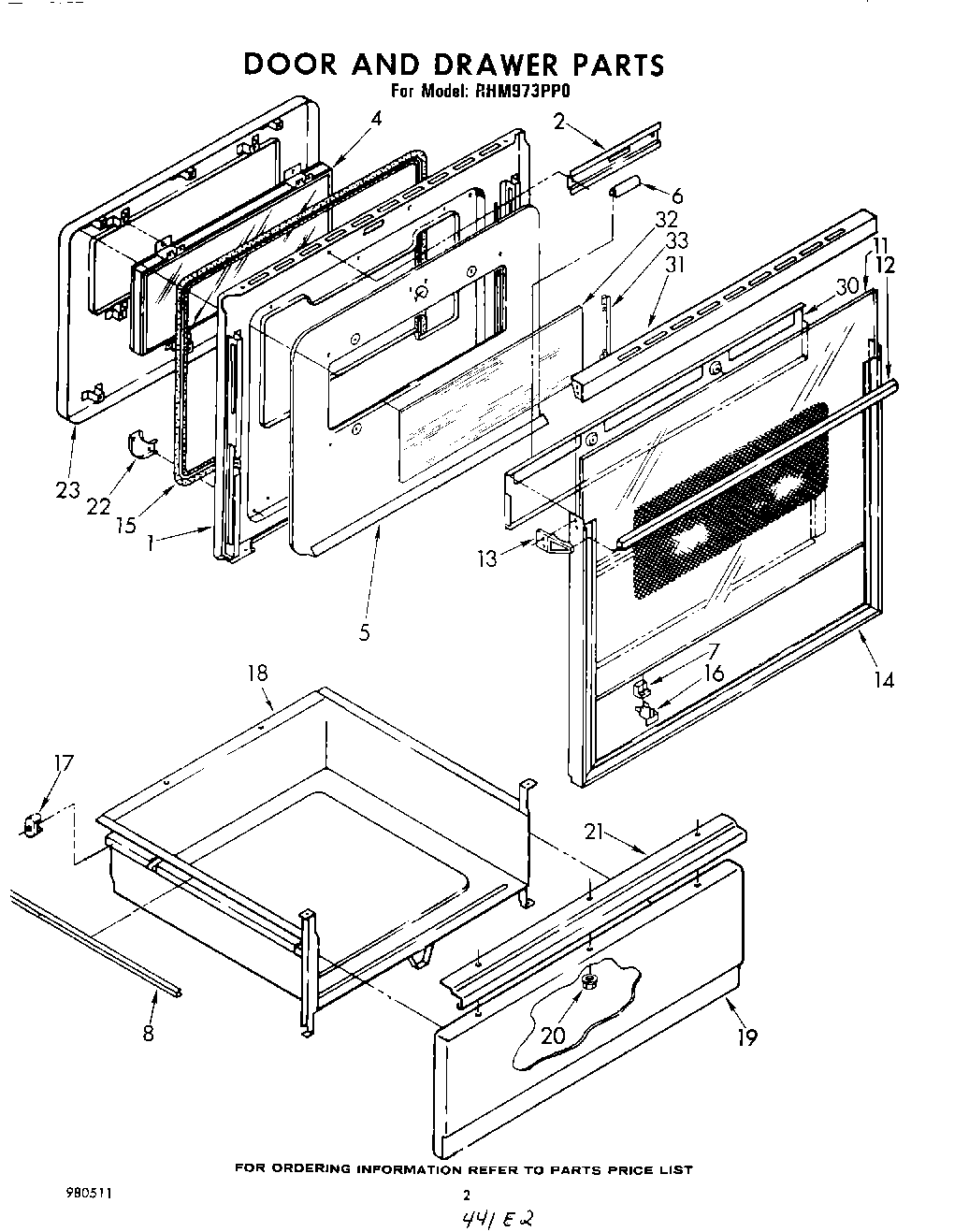

RHM973PP0 02 – DOOR AND DRAWER

Products

Position	Product
1	Clip (2)
1	Griddle Cover (Avocado 1633A1A, A2A)
2	Screw, 10-32T x 3/8
2	Channel, Latch
4	Window Package
5	Retainer, Insulation
6	Cushion, Oven Door (3)
7	Cushion (7)
8	Protector, Drawer (2)
11	Glass, Outer
12	WP355515 Whirlpool Screw
12	Handle, Oven Door (Includes Illus. 13)
13	End Cap, Handle (2)
14	Grill, Bottom (Screw (3))
14	Frame, Door
14	Nut, Speed (4)
15	Seal, Fiberglass
16	Clip, Glass (7)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel Drawer (Black)
19	Screw, 80 x 5/16
20	WP486255 Whirlpool Air Conditioner Nut
21	Handle, Drawer
21	WP912618 Whirlpool Dishwasher Screw
22	WP308685 Whirlpool Microwave Screw
22	Retainer, Seal (4)
23	Panel, Inner
23	SCREW
30	panel, top (screw, 10a x 3/8 (3))
30	Baffle, Heat
30	WP90296 Whirlpool Clip
31	Frame, Top
32	Glass (6.81`` x 18.31``)
33	Retainer, Glass (2)
