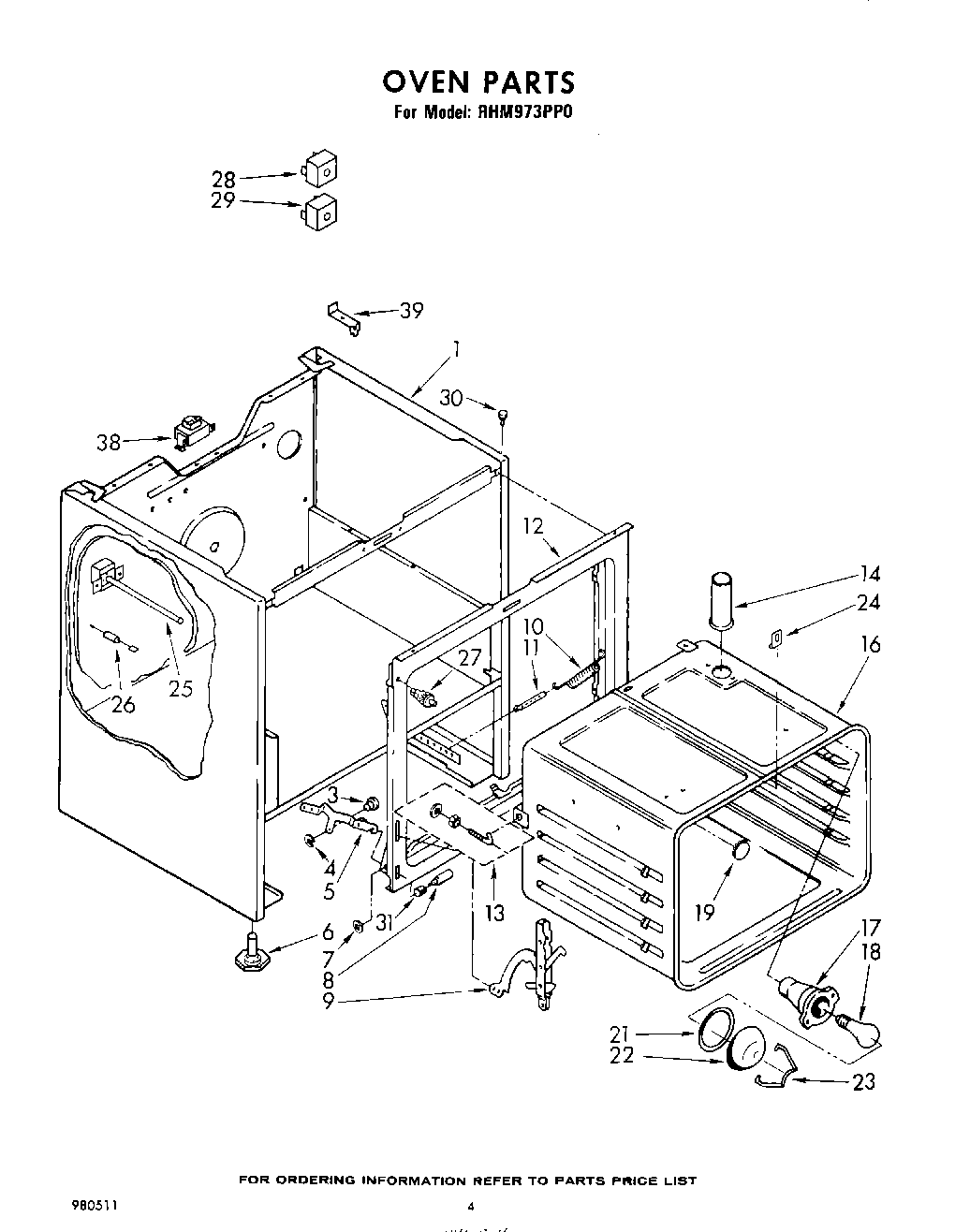

RHM973PP0 03 – OVEN , LIT/OPTIONALadmin2025-04-26T12:07:40+00:00RHM973PP0 03 – OVEN , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Almond (Uncut) |
| Enamel, Black (1 Qt. Uncut) |
| 1 | main chassis (almond) |
| 1 | WP308544 Whirlpool Screw |
| 3 | WP307986 Whirlpool Hinge Pin |
| 4 | Retainer Ring (2) |
| 5 | Hinge (R.H.) |
| 5 | Main Chassis (Screw, 10-32 x 1/2) |
| 5 | Hinge (L.H.) |
| 6 | WP233550 Whirlpool Leveling Feet |
| 7 | Pushnut (2) |
| 8 | Pin, Hinge Ear (2) |
| 9 | Channel, Arm (2) |
| 10 | WP308126 Whirlpool Door Spring |
| 11 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 12 | Frame, Front |
| 13 | Oven Mounting Kit |
| 14 | Vent, Oven |
| 14 | WP308685 Whirlpool Microwave Screw |
| 16 | Insulation-Latch |
| 17 | Socket, Oven Light (Alt.) |
| 17 | Screw (10-12 x .875) |
| 18 | RANGE ONLY 40W 120V APPL BULB |
| 19 | Plug Button |
| 21 | Gasket, Light |
| 22 | Cover, Light |
| 23 | Retainer, Light |
| 24 | Screw, 10A x 1/2 |
| 24 | Clip, Oven |
| 25 | Wire Cover-Thermostat |
| 26 | Resistor & Terminal Assembly |
| 27 | Switch, Plunger |
| 28 | Switch, Broil |
| 29 | Screw, 6A x 1 1/4 (2) |
| 29 | Switch, Bake |
| 30 | 238614 Whirlpool Bumper Hinge |
| 31 | Snubber, Door (2) |
| 38 | Ballast (Alt.) |
| 39 | WPL 308500 |
| 39 | Wire, 18 Ga. (White) (25 Ft.) |
| 39 | WPL 309600 |
| 39 | Wire, 18 Ga. (Red) (25 Ft.) |
| 39 | Wire, 14 Ga. (White) (25 Ft.) |
| 39 | 72032 Whirlpool Touch Up Paint Black |
| 39 | WPW10208653 Whirlpool Insulation |
| 39 | WPL 799832 |
| 39 | WPL 310847 |
| 39 | 511873 Whirlpool Refrigerator Paint |
| 39 | WPL 310053 |
| 39 | 350942 Whirlpool Spray Paint |
| 39 | SCREW |
| 39 | WPL 310220 |
| 39 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 39 | WPL 253882 |
| 39 | WPL 309304 |
| 39 | WP482338 Whirlpool Refrigerator Adhesive |
| 39 | WPL 253901 |
| 39 | WPL 799351 |
| 39 | 261900 Whirlpool Microwave Spray |
| 39 | Grease |
| 39 | WP75614 Whirlpool Connector |
| 39 | Leveler (Thinner) (2oz.) |
| 39 | WPL 591014 |
| 39 | 350956 Whirlpool Spray Assembly |
| 39 | WP261869 Whirlpool Microwave Paint |
| 39 | WPL 309102 |
| 39 | Touch-Up, Oven |
| 39 | WPL 253883 |
| 39 | WPL 253893 |
| 39 | WPL 253894 |
| 39 | WPL 253895 |
| 39 | WPL 253897 |
| 39 | WPL 253900 |
| 39 | WPL 980511 |
