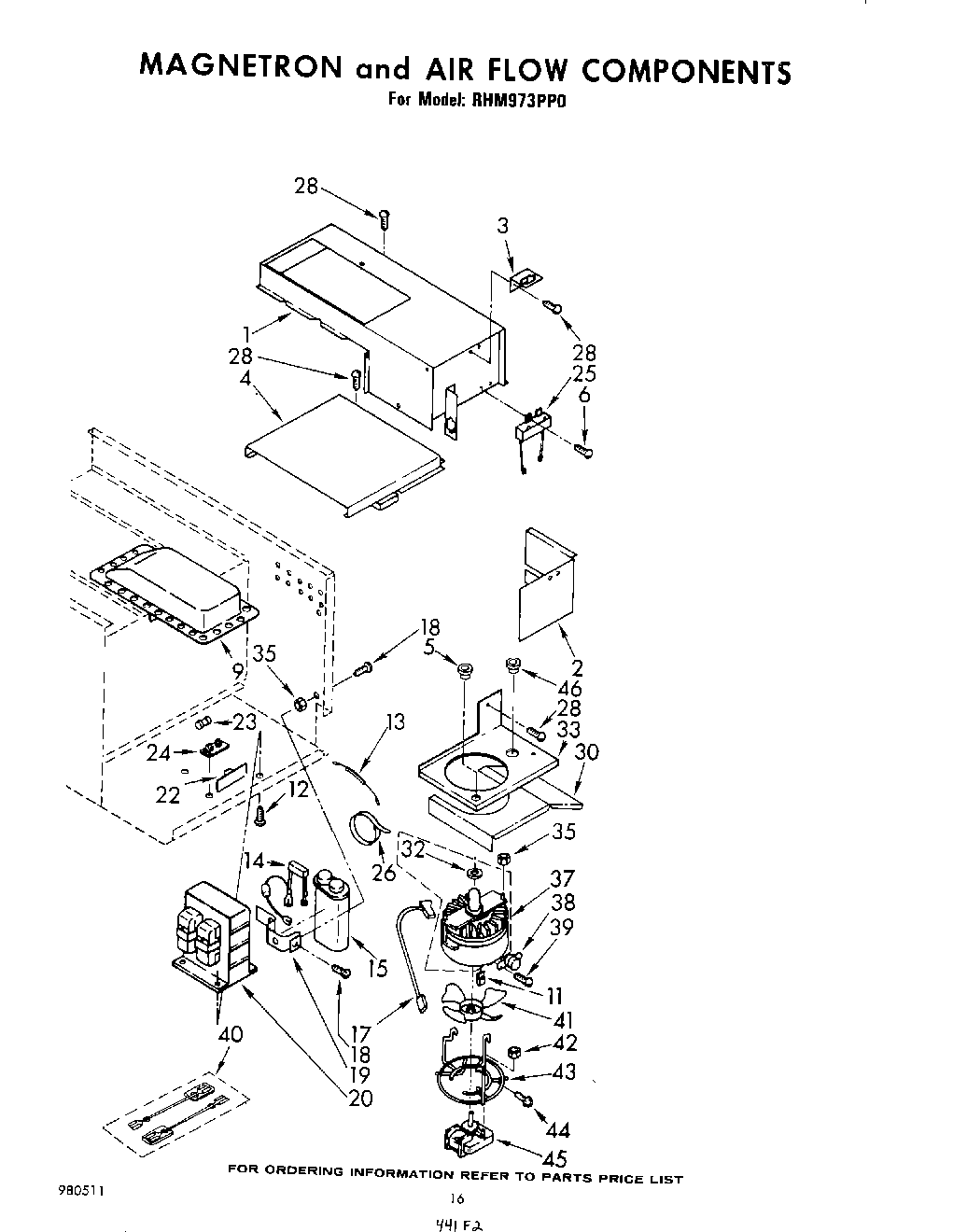

RHM973PP0 09 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Duct, Cooling Air
2	Baffle, Air
3	Bracket, Receptacle
4	Duct, Discharge
5	Bushing, Wire
6	WP965173 Whirlpool Dishwasher Screw
9	Guide, Wave (Riveted At Assembly, Not Serviceable)
11	Clip (2)
13	Varistor Assembly
14	Rectifier, High Voltage (Includes Illus. 15)
15	Capacitor
17	Wire, High Voltage (Capacitor)
18	Main Chassis (Screw, 10-32 x 1/2)
19	Bracket, Capacitor
20	Transformer
22	Shield, Fuse
23	WPW10017410 Whirlpool Fuse
24	Block, Fuse
25	Relay, Reed
26	WPW10339879 Whirlpool Wire Tie
28	panel, top (screw, 10a x 3/8 (3))
30	WPL 311084
32	Gasket, Magnetron (Use W/Litton Magnetron)
32	Gasket, Magnetron (Use W/Panasonic Magnetron)
33	Duct, Bottom Air
35	WP112432 Whirlpool Nut Assembly
35	Flange Nut (4)
37	Magnetron Kit, Panasonic
38	Thermostat
39	Screw
40	Wire, High Voltage Magnetron (2) (Use W/Panasonic Magnetron)
40	Wire Kit, High Voltage (Magnetron)
41	Blade, Fan
42	Nut, Hex (6-32)
43	Mount, Fan Motor
44	WP90767 Whirlpool Screw
45	Motor, Fan
46	Snap Bushing
