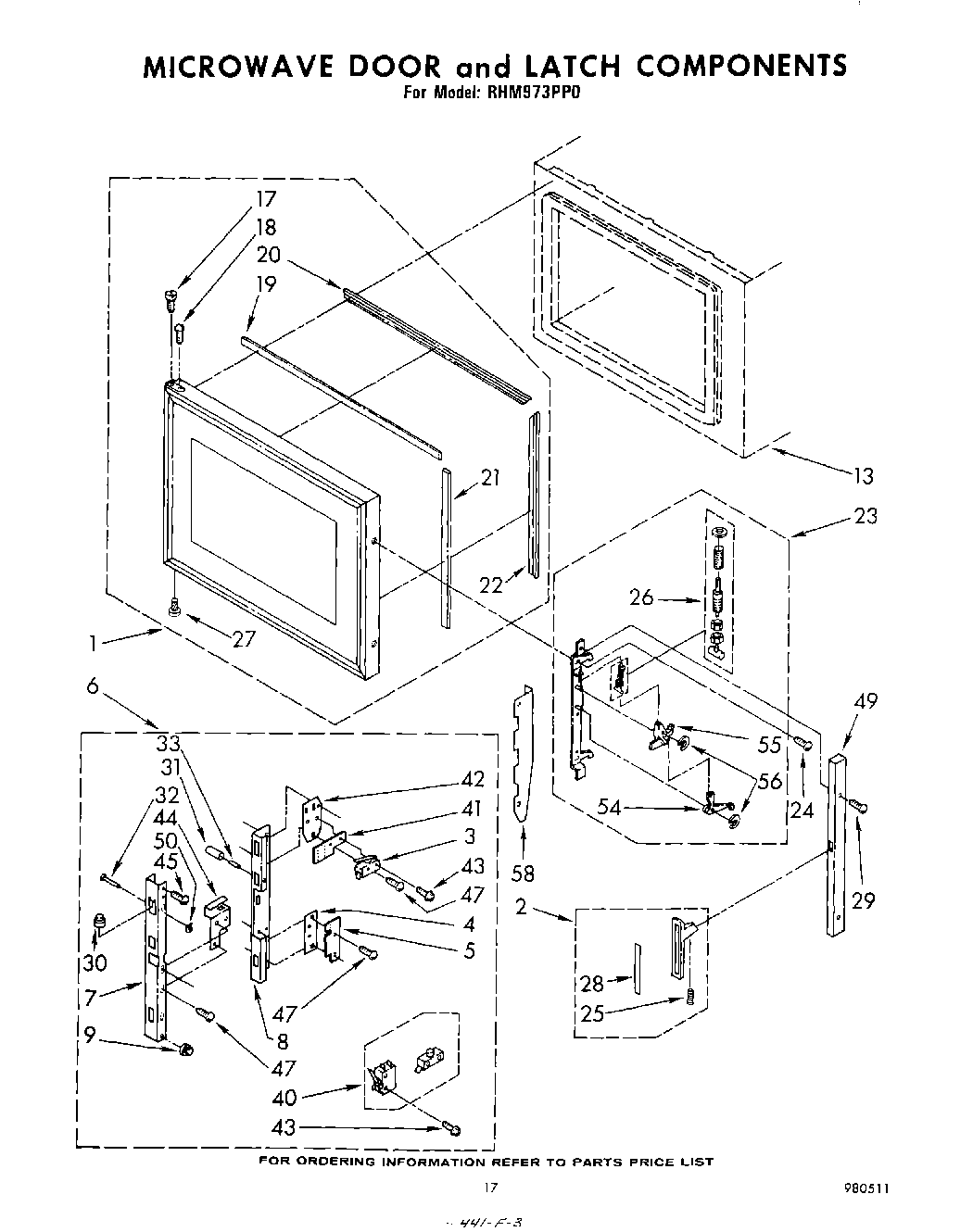

RHM973PP0 10 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Door, Assembly
2	Handle, Door
3	Switch, Secondary
4	Plate, Switch Mounting
5	Insulator, Switch
6	Interlock Assembly
7	Guide, Channel (Not A Serviceable Part)
8	Slide, Channel (Not A Serviceable Part)
9	Spacer (4)
13	Cabinet (Not A Serviceable Part)
17	Screw, 8D x .312 (2)
18	Panel, Drawer (Screw, 8-32 (3))
19	Seal, Top & Bottom (2)
20	Retainer, Top & Bottom Seal (2)
21	Seal, Side (2)
22	Retainer, Side Seal (2)
23	2065B0A Models
25	Setscrew, 8-32
26	Plunger, Latch
27	Pin, Hinge
28	Insert
29	Screw, 8-32 x 5/16 (2)
30	Bumper
31	Roller, Latch
32	Pin, Roller (2)
33	Pin, Straight
40	Switch Kit, Door (Kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3
41	Insulator, Switch (Top)
42	Plate, Top Switch Mounting
43	Screw
44	Bracket, Primary Switch
45	WPL 309080
47	WPL 310629
49	End Cap, Door
50	Ring, Retaining (2)
54	Latch, Concealed
55	Handle, Cam
56	Ring, “E“
58	Shield, Light
