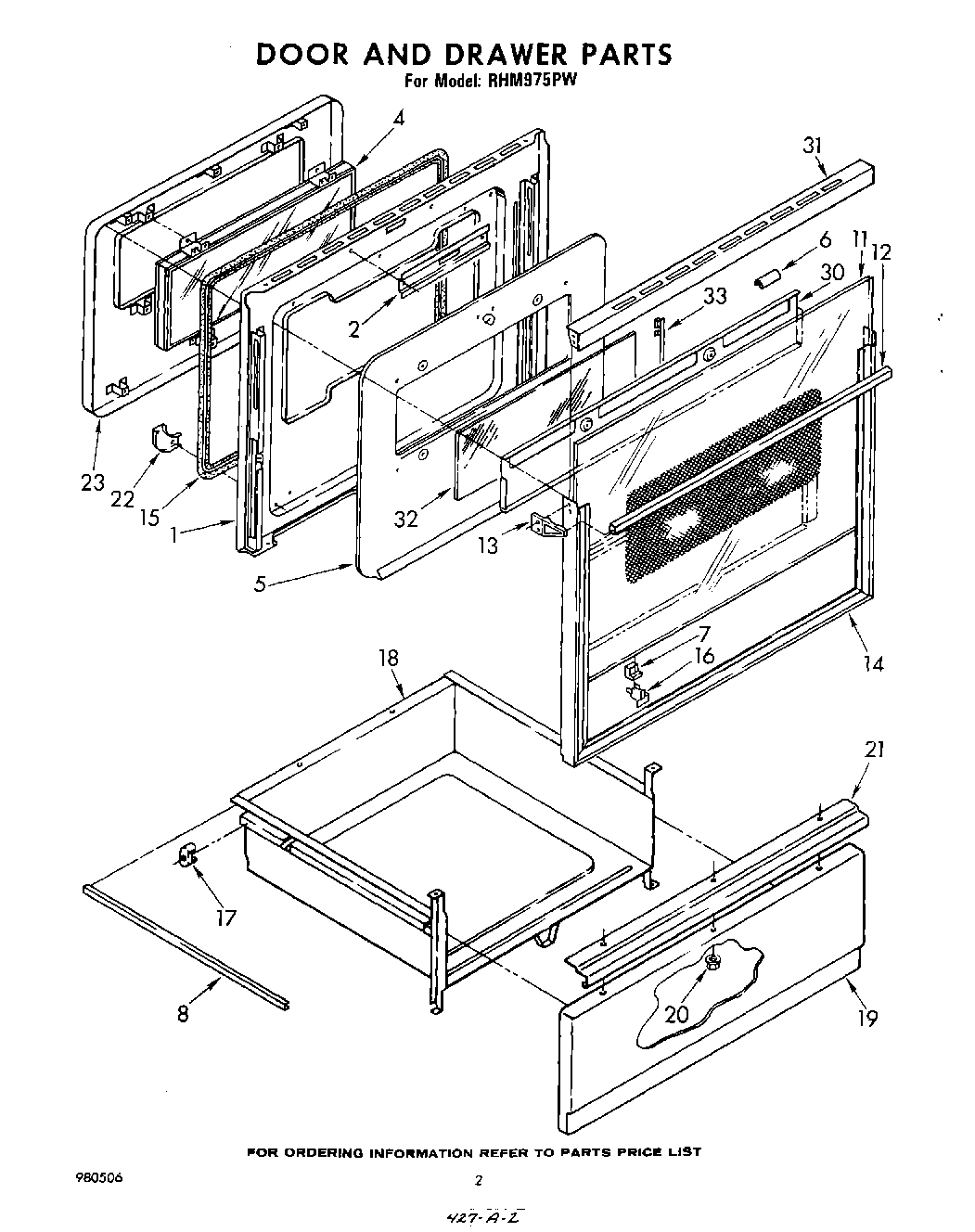

RHM975PW 02 – DOOR AND DRAWER

Products

Position	Product
1	Clip (2)
1	Griddle Cover (Avocado 1633A1A, A2A)
2	Screw, 10-32T x 3/8
2	Channel, Latch
4	Window Package
5	Retainer, Insulation
6	Cushion, Oven Door (3)
7	Cushion (7)
8	Protector, Drawer (2)
11	Glass, Outer
12	Handle, Oven Door (Includes Illus. 13)
12	WP355515 Whirlpool Screw
13	End Cap, Handle (2)
14	Grill, Bottom (Screw (3))
14	Nut, Speed (4)
14	Frame, Door
15	Seal, Fiberglass
16	Clip, Glass (7)
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
19	Panel Drawer (Harvest Gold)
19	Screw, 80 x 5/16
20	WP486255 Whirlpool Air Conditioner Nut
21	Handle, Drawer
21	WP912618 Whirlpool Dishwasher Screw
22	WP308685 Whirlpool Microwave Screw
22	Retainer, Seal (4)
23	SCREW
23	Panel, Inner
30	panel, top (screw, 10a x 3/8 (3))
30	Baffle, Heat
30	WP90296 Whirlpool Clip
31	Frame, Top
32	Glass (6.81`` x 18.31``)
33	Retainer, Glass (2)
