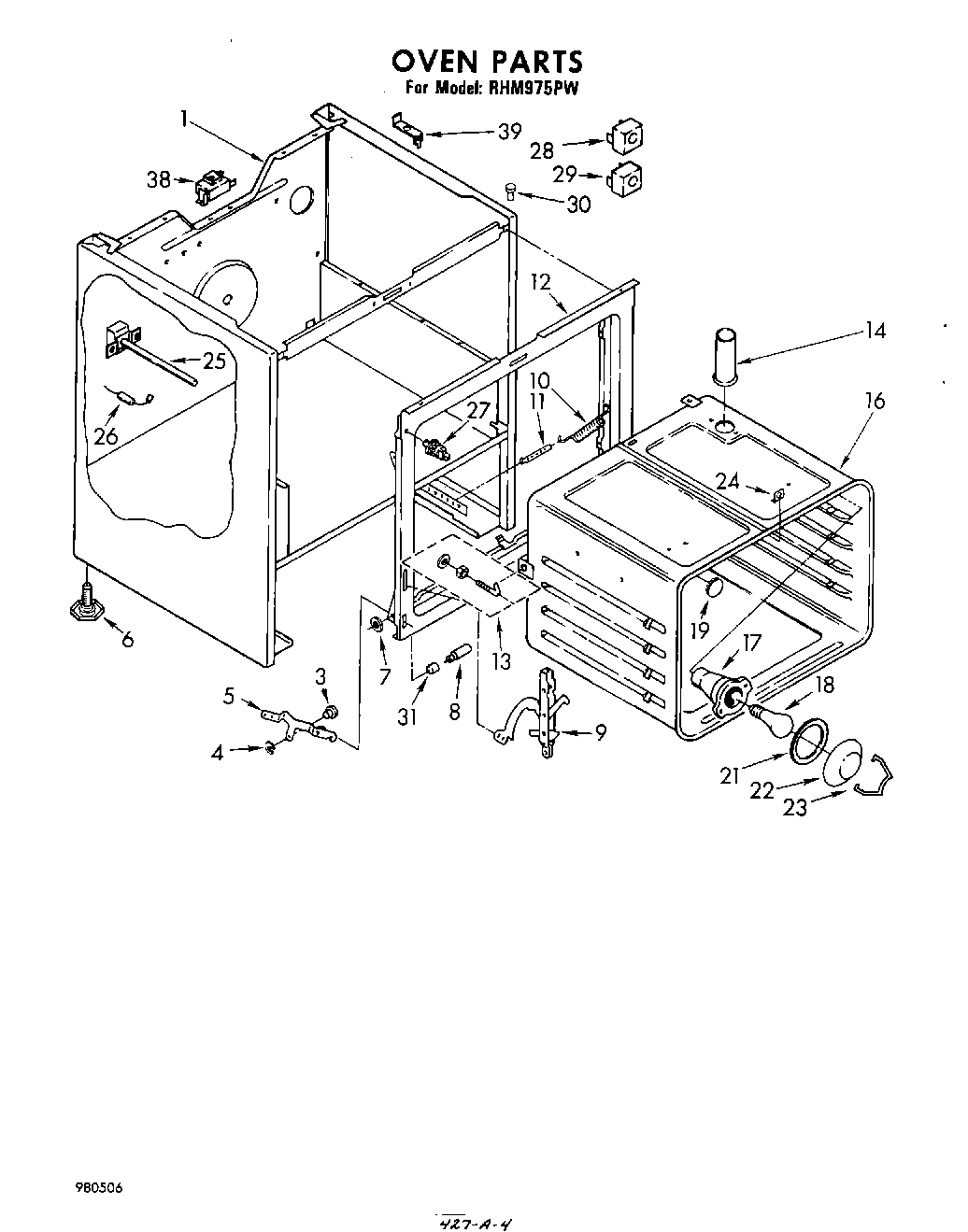

RHM975PW 03 – OVEN

Products

Position	Product
1	main chassis (almond)
1	WP308544 Whirlpool Screw
1	Lining-Compartment Door (16331A,2A
1	Griddle Cover (Almond 1633L1A, L2A)
3	WP307986 Whirlpool Hinge Pin
4	Retainer Ring (2)
5	Main Chassis (Screw, 10-32 x 1/2)
5	Hinge (L.H.)
5	Hinge (R.H.)
6	WP233550 Whirlpool Leveling Feet
7	Pushnut (2)
8	Pin, Hinge Ear (2)
9	Channel, Arm (2)
10	WP308126 Whirlpool Door Spring
11	WP308125 Whirlpool Microwave Range/Cooktop Anchor
12	Frame, Front
13	Oven Mounting Kit
14	WP308685 Whirlpool Microwave Screw
14	Vent, Oven
16	SCREW
16	Insulation-Latch
17	Socket, Oven Light (Alt.)
17	Screw (10-12 x .875)
18	RANGE ONLY 40W 120V APPL BULB
19	Plug Button
21	Gasket, Light
22	Cover, Light
23	Retainer, Light
24	Clip, Oven
24	Screw, 10A x 1/2
25	Wire Cover-Thermostat
26	Resistor & Terminal Assembly
27	Switch, Plunger
28	Switch, Broil
29	Screw, 6A x 1 1/4 (2)
29	Switch, Bake
30	238614 Whirlpool Bumper Hinge
31	Snubber, Door (2)
38	Ballast (Alt.)
39	WPL 309102
