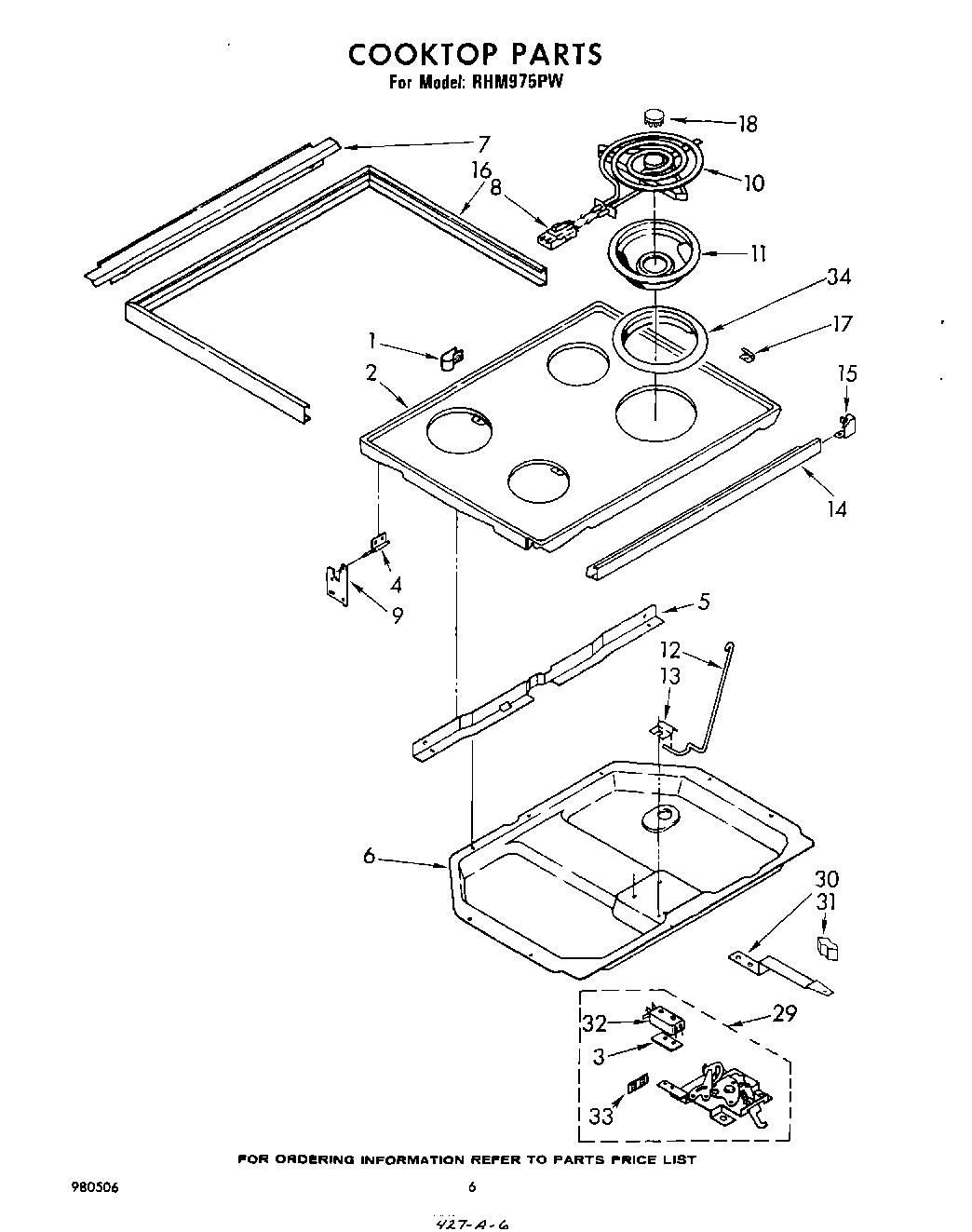

RHM975PW 05 – COOKTOP

Products

Position	Product
1	WP308605 Whirlpool Refrigerator Clamp
2	Cooktop (Golden Harvest)
2	Cooktop (Almond)
2	Cooktop (White)
2	Clip (2)
3	Insulator, Switch
4	Hinge, Leaf Cooktop R.H.
4	Hinge, Leaf Cooktop L.H.
5	Shield, Wiring
6	burner box
6	Screw, 10 x .5HH
7	trim, rear
8	BURNER RECEPTACLE KIT
8	WP486754 Whirlpool Compactor Screw
9	hinge (2)
9	WP308544 Whirlpool Screw
10	WPY04100165 Whirlpool Surface Element
10	WP660533 Whirlpool Oven 8" Surface Element
11	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
12	Rod, Cooktop
13	WP3390631 Whirlpool Screw
13	Retainer, Cooktop
14	Trim, Front
15	end cap trim r.h.
15	end cap trim l.h.
15	Clip (4)
15	Screw, 8A x 3/8 (2)
16	trim, cooktop side & rear
16	W11693756 Whirlpool Screw Assembly
17	bracket, cooktop (6)
17	WP308685 Whirlpool Microwave Screw
18	medallion
29	SCREW
29	Screw
29	Latch Assembly
30	Screw
30	Handle, Latch
31	Knob, Latch
31	WP488627 Whirlpool Refrigerator Screw
32	Screw
32	Safety Switch
33	Terminal
34	W10858781 Whirlpool Trim Ring
34	W10854470 Whirlpool Trim Ring
