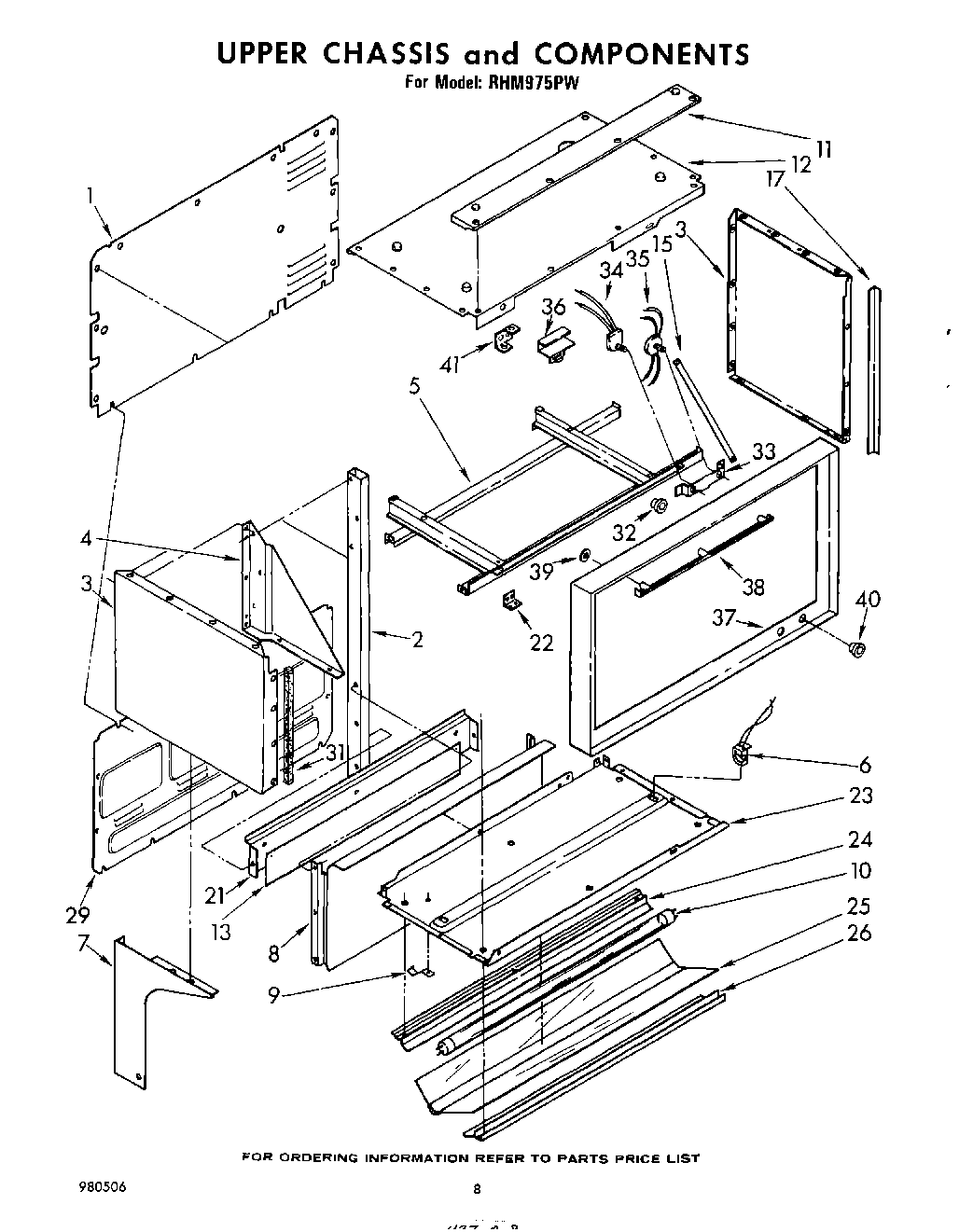

RHM975PW 06 – UPPER CHASSIS AND COMPONENTSadmin2025-04-26T12:07:17+00:00RHM975PW 06 – UPPER CHASSIS AND COMPONENTS
Products
| Position | Product |
|---|
| 1 | WPL 309507 |
| 2 | Support, Tubing R.H. |
| 2 | Tubing, Support L.H. |
| 3 | Panel, Side R.S. (Almond) |
| 3 | Panel, Side R.S. (White) |
| 3 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 3 | Panel, Side R.S. (White) |
| 3 | Panel, Side R.S. (Golden Harvest) |
| 3 | Panel, Side L.H. (Almond) |
| 3 | Panel, Side R.S. (Golden Harvest) |
| 4 | Clip ``J`` (2) |
| 4 | Gusset, L.H. |
| 4 | gusset, r.h. |
| 5 | Frame, Oven Support |
| 6 | Socket Assembly, R.H. |
| 6 | Knob-Thermostat |
| 6 | Screw |
| 7 | WPL 246134 |
| 7 | Bracket-Insulation Retainer (Lt. or Rt.) |
| 7 | Trim, End R.H. (Golden Harvest) |
| 7 | WPL 308980 |
| 7 | Trim, End R.H. (White) |
| 7 | WPL 328154 |
| 7 | Trim, End R.H. (Golden Harvest) |
| 7 | WPL 328150 |
| 7 | WPL 310304 |
| 8 | Pan |
| 9 | spring, glass (4) |
| 10 | WP95292 Whirlpool Fluorescent Light Bulb |
| 11 | Screw, 8A x 3/8 (2) |
| 11 | WPL 309501 |
| 12 | WPL 309512 |
| 12 | WPL 309513 |
| 12 | WPL 309509 |
| 13 | WPL 309211 |
| 13 | WPL 309144 |
| 13 | panel, top (screw, 10a x 3/8 (3)) |
| 15 | WPL 309483 |
| 17 | WPL 309629 |
| 17 | WP965173 Whirlpool Dishwasher Screw |
| 21 | WPL 308776 |
| 22 | WPL 309454 |
| 23 | WPL 309506 |
| 24 | WPL 308896 |
| 25 | WPL 328306 |
| 26 | WPL 308897 |
| 29 | SCREW |
| 29 | WPL 308112 |
| 31 | Support-Top Burner |
| 32 | Snap Bushing |
| 33 | WP308544 Whirlpool Screw |
| 33 | WPL 309455 |
| 34 | nut, 3/8 x 27 |
| 34 | WPL 309549 |
| 35 | WPL 309550 |
| 36 | WPL 309452 |
| 37 | WP488627 Whirlpool Refrigerator Screw |
| 37 | WPL 309500 |
| 38 | WPL 309499 |
| 39 | WP90296 Whirlpool Clip |
| 40 | bezel, switch (2) |
| 41 | WPL 309453 |
