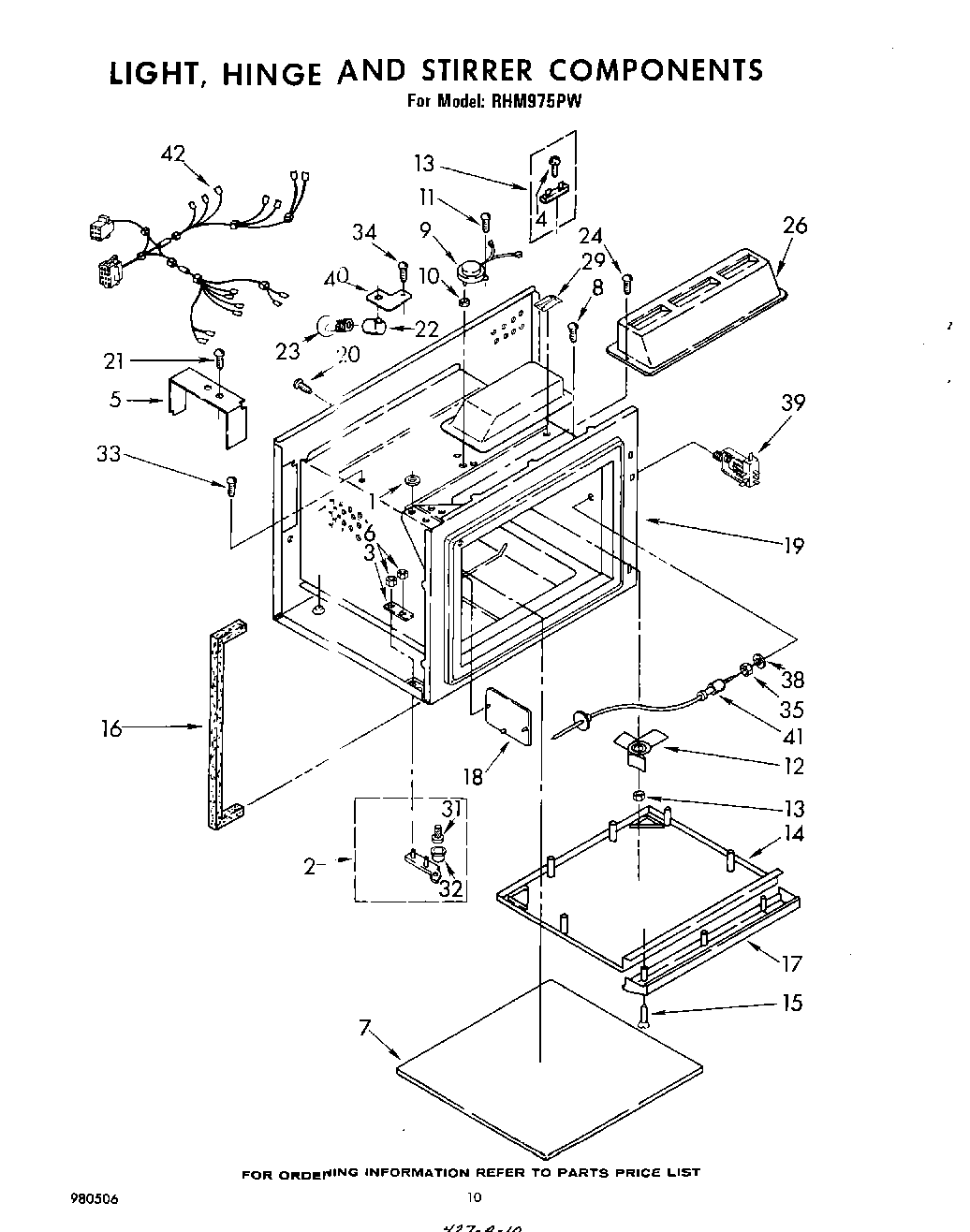

RHM975PW 07 – LIGHT, HINGE AND STIRRER

Products

Position	Product
1	Washer
2	Hinge, Door (Top)
2	WPL 328127
3	Plate, Hinge
4	WP965173 Whirlpool Dishwasher Screw
5	Shield, Lamp
6	Nut, Hex (1/4-20)
7	Base, Ceramic (Install W/Silastic No. 482338)
8	SCREW
9	Motor, Stirrer
10	Gasket, Stirrer Motor
11	Screw
12	Stirrer, 3-Blade
13	Fuse, Thermal
14	Cover, Stirrer
15	Screw, 10 x 2
16	Seal, Light
17	Cover, Front
18	Shield, Exhaust Probe
19	Base & Cavity Assembly (Not Serviceable)
20	Main Chassis (Screw, 10-32 x 1/2)
21	panel, top (screw, 10a x 3/8 (3))
22	Socket, Snap-In
23	RANGE ONLY 40W 120V APPL BULB
24	WP487353 Whirlpool Refrigerator Screw
26	Baffle, Air Exhaust
29	Fastener, Slide
31	Pin, Hinge
32	Bushing
33	WP308685 Whirlpool Microwave Screw
34	Screw, 10-32 x 1/2
35	Nut
38	Washer
39	Jack, Probe
40	Oven Burner Support
41	Meat Probe & Plug Assembly
42	Harness, Wiring (Main) (Microwave)
