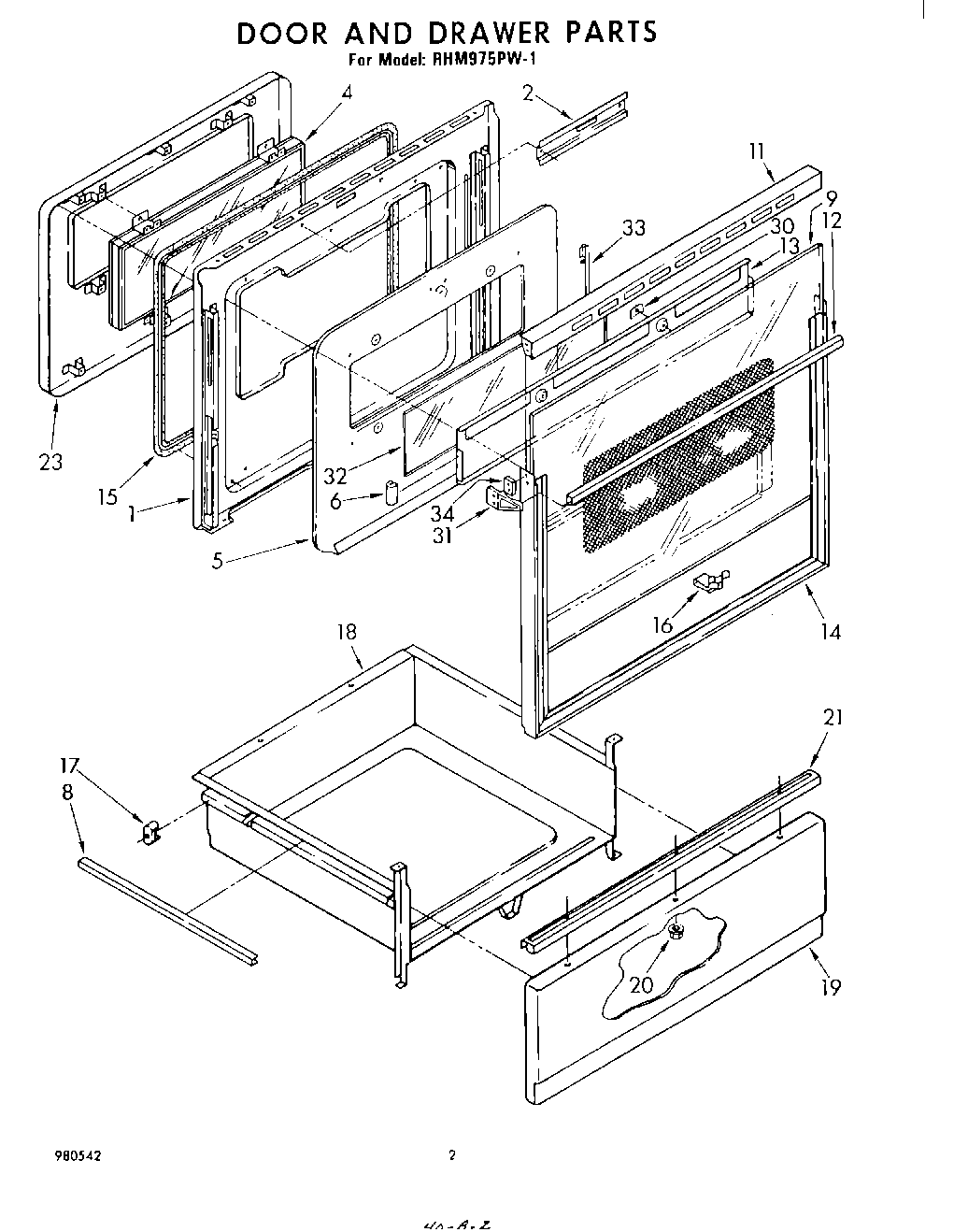

RHM975PW1 02 – DOOR AND DRAWER

Products

Position	Product
1	Clip (2)
1	panel, top (screw, 10a x 3/8 (3))
1	Griddle Cover (Avocado 1633A1A, A2A)
2	Channel, Latch
2	Screw (2)
2	Screw, 10A x 1/2
4	Window Package
5	Retainer, Insulation
6	Cushion, Oven Door (3)
8	Protector, Drawer (2)
9	Glass, Outer
11	Top, Door Frame
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
13	WP90296 Whirlpool Clip
13	Baffle, Heat
14	Grill, Bottom (Screw (3))
14	frame, door 30“
15	Seal, Fiberglass
16	clip, glass (10)
17	Glide, Rear (2)
17	WP308685 Whirlpool Microwave Screw
18	Drawer, Utility
19	Panel, Lower (Coffee)
19	Panel, Drawer (New Avocado)
19	Panel, Drawer (Almond)
19	Panel Drawer (Harvest Gold)
19	Panel Drawer (Black)
19	Panel Drawer (White)
19	Panel, Drawer (Screw, 8-32 (3))
20	WP486255 Whirlpool Air Conditioner Nut
21	WP912618 Whirlpool Dishwasher Screw
21	Handle, Drawer
23	Panel, Inner
30	Nut, Speed (4)
31	End Cap, Handle (2)
32	Glass (6.81“ x 18.31“)
33	Retainer, Glass (2)
34	Spacer, Door Handle (2)
