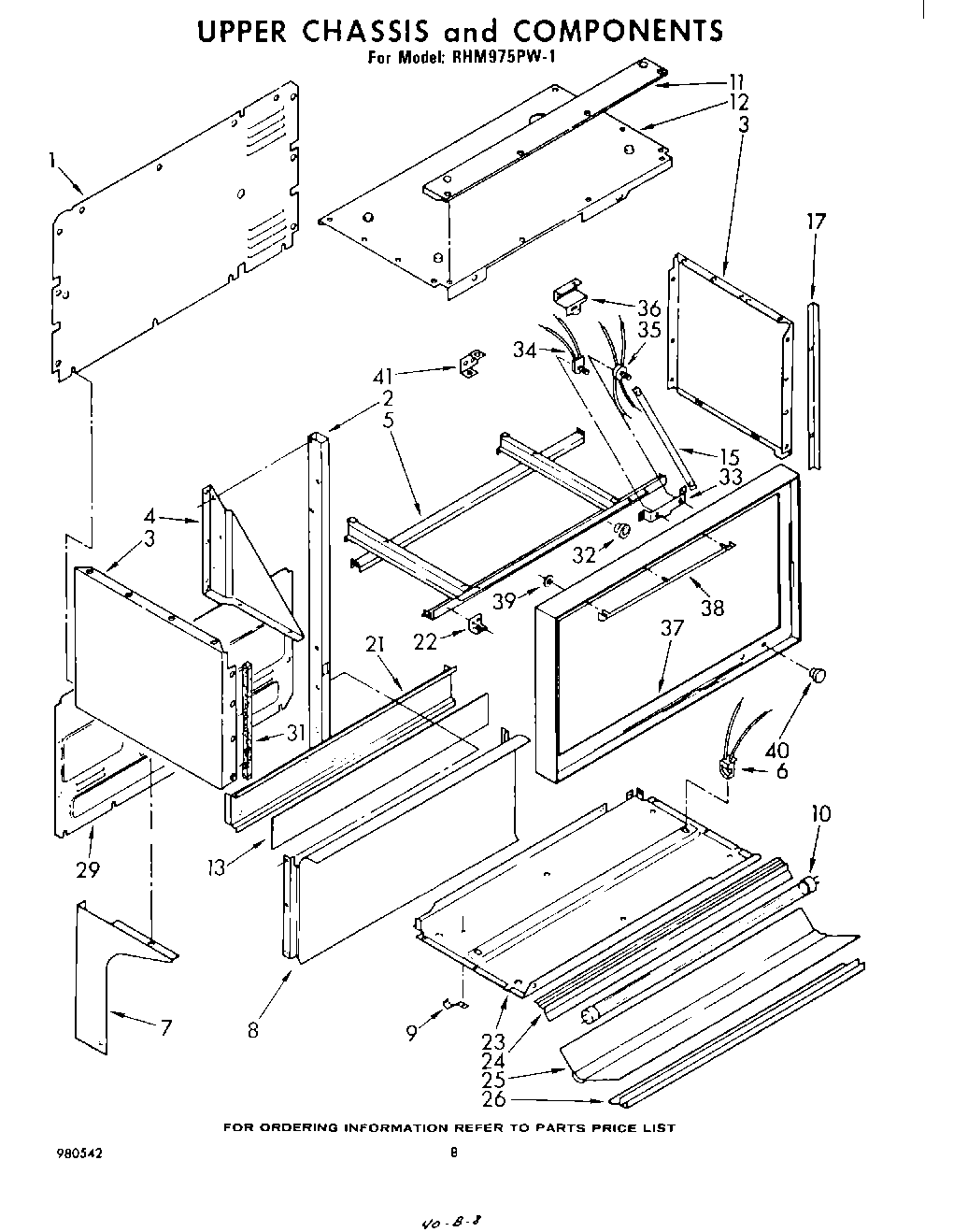

RHM975PW1 06 – UPPER CHASSIS

Products

Position	Product
1	WPL 309507
2	Tubing, Support L.H.
2	Support, Tubing R.H.
3	Panel, Side R.S. (New Avocado)
3	Panel, Side R.S. (Almond)
3	Panel, Side R.S. (Golden Harvest)
3	Panel, Side L.H. (Almond)
3	Panel, Side L.H. (Screw, 10A x 1/2 (2))
3	Panel, Side R.S. (White)
3	Pane, Side R.S. (New Avocado)
3	Panel, Side R.S. (White)
3	Panel, Side R.S. (Golden Harvest)
3	Panel, Side R.S. (Coffee)
3	Panel, Side R.S. (Coffee)
4	Clip “J“ (2)
4	gusset, r.h.
4	Gusset, L.H.
5	Frame, Oven Support
6	Screw
6	Socket Assembly, R.H.
6	Socket Assembly, L. H.
7	Screw (10-12 x .875)
7	Insulation-Oven Back
7	WPL 310304
7	WPL 328154
7	Rear Oven Vent Box
7	Trim, End R.H. (New Avocado)
7	Trim, End R.H. (White)
7	Trim, End R.H. (Golden Harvest)
7	WPL 308980
7	Trim, End R.H. (Golden Harvest)
7	WPL 328150
7	Trim, End R.H. (Coffee)
7	Bracket-Insulation Retainer (Lt. or Rt.)
8	Pan
9	spring, glass (4)
10	WP95292 Whirlpool Fluorescent Light Bulb
11	Screw, 8A x 3/8 (2)
11	WPL 309501
12	WPL 309511
12	WPL 309510
12	WPL 309512
12	WPL 309513
12	WPL 309509
13	WPL 309144
13	panel, top (screw, 10a x 3/8 (3))
13	WPL 309211
15	WPL 309483
17	WP965173 Whirlpool Dishwasher Screw
17	WPL 309629
21	WPL 308776
22	WPL 309454
23	WPL 309506
24	WPL 308896
25	WPL 328306
26	WPL 308897
29	SCREW
29	WPL 308112
31	Support-Top Burner
32	Snap Bushing
33	WP308544 Whirlpool Screw
33	WPL 309455
34	nut, 3/8 x 27
34	WPL 309549
35	WPL 309550
36	WPL 309452
37	WP488627 Whirlpool Refrigerator Screw
37	WPL 309500
38	WPL 309499
39	WP90296 Whirlpool Clip
40	bezel, switch (2)
41	WPL 309453
