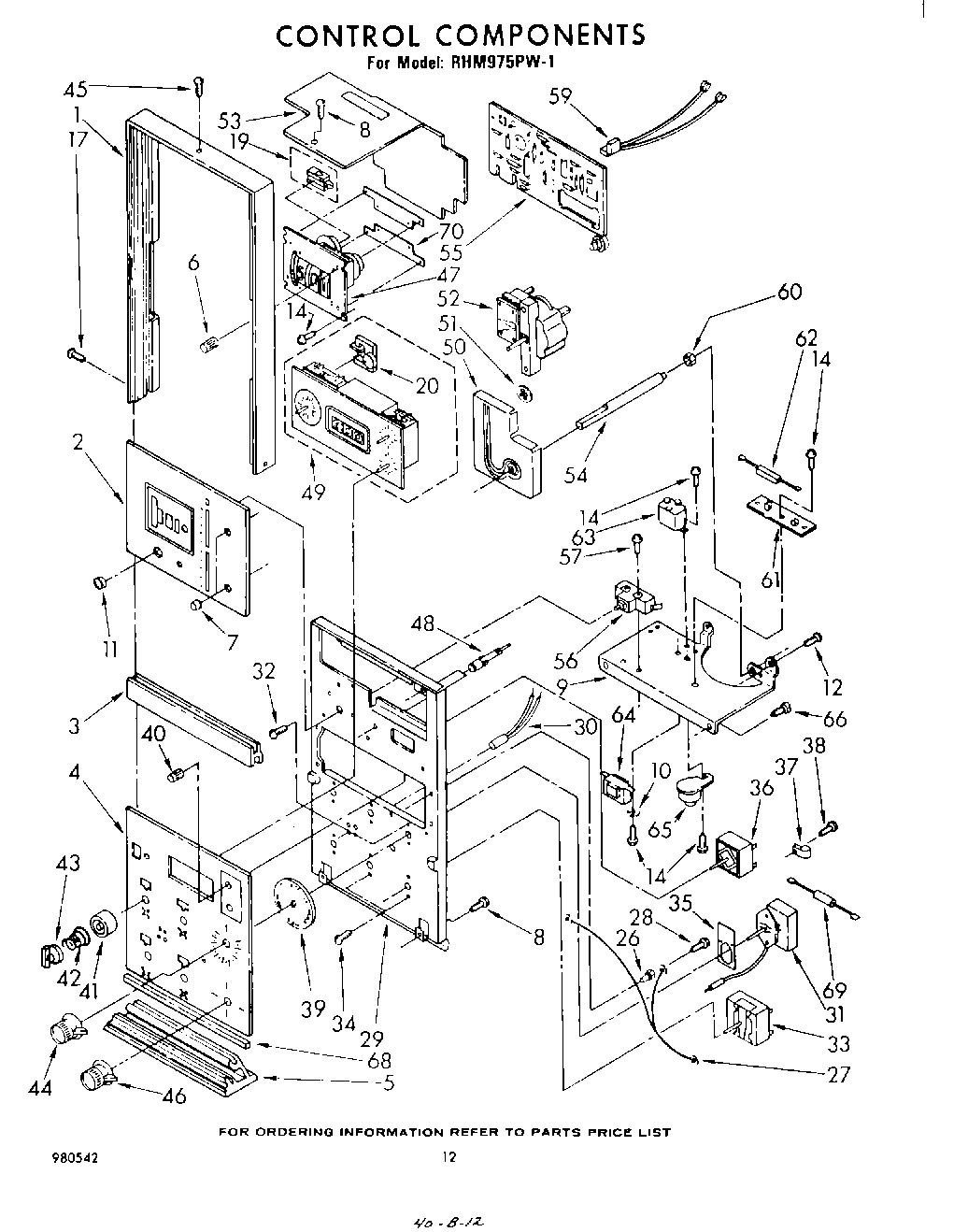

RHM975PW1 08 – CONTROLS

Products

Position	Product
1	Frame, Control Panel
2	Panel, Control (Upper)
3	Splice, Panel
4	Panel, Glass (Lower)
5	Cap, Control Panel
6	Knob, Digital
7	Knob Assembly (2)
8	WP486754 Whirlpool Compactor Screw
9	Bracket, P.C. Board
10	Lockwasher
11	Button, Push-to-Start
12	WPL 309080
14	Screw
17	NAMEPLATE
19	Switch Kit For Timer
20	Motor, Timer
26	Nut, Aluminum (4)
27	Cable, Support
28	Screw
29	Bracket, Control Mounting
30	Light, Indicator 250V (7)
31	Thermostat (Lower Oven)
32	screw, 6-32 x 1/4 (2)
33	Switch, Selector (Pyro)
35	Insulator
36	switch, infinite (4)
36	Screw, 8-32 x 3/16 (2)
37	WP308605 Whirlpool Refrigerator Clamp
38	W11693756 Whirlpool Screw Assembly
39	Dial, Surface Units (4)
40	knob, timer
41	Bezel, Knob (4)
42	spring, bezel (4)
43	knob, control
44	Knob, Thermostat
45	WP488627 Whirlpool Refrigerator Screw
46	Knob, Selector
47	Timer, Digital (Microwave)
48	Light, Indicator 125V (2)
49	Timer, Digital (Includes Illus. 29)
50	Indicator, Information Control
51	Clip, Push-On (3)
52	Indicator, Temperature
53	Shield Assembly
54	Shaft, Potentiometer
55	Control, Variable Power
56	Switch, Push-Start (Includes Illus. 11)
57	Screw
59	Harness, Variable Power Control
60	Palnut
61	Bo
62	Resistor, 30HM
63	WPL 308243
64	WPL 308308
65	WPL 310351
66	Screw,
68	Support-Top Burner
69	Resistor & Terminal Assembly
70	WPL 311224
70	WP3390631 Whirlpool Screw
70	Screw (2)
