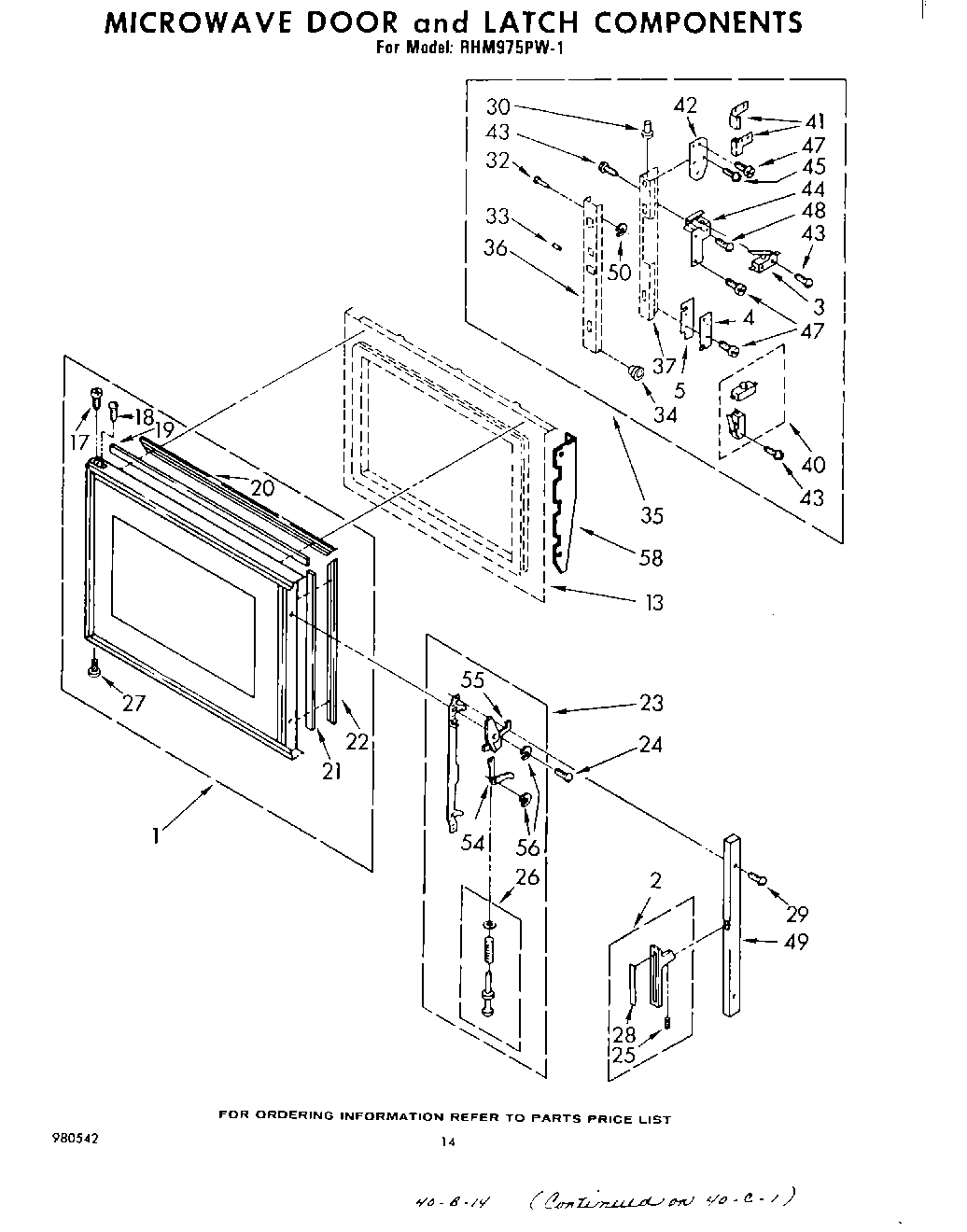

RHM975PW1 09 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Door, Assembly
2	Handle, Door
3	Switch, Secondary
4	Plate, Switch Mounting
5	Insulator, Switch
13	Cabinet (Not A Serviceable Part)
17	Screw, 8D x .312 (2)
18	Panel, Drawer (Screw, 8-32 (3))
19	Seal, Top & Bottom (2)
20	Retainer, Top & Bottom Seal (2)
21	Seal, Side (2)
22	Retainer, Side Seal (2)
23	Latch, Door
25	Setscrew, 8-32
26	plunger, latch
27	Pin, Hinge
28	Insert
29	Screw, 8-32 x 5/16 (2)
30	Bumper
32	Pin, Roller (2)
33	Pin, Straight
34	Spacer (4)
35	Interlock Assembly
36	Guide, Channel (Not a Serviceable Part)
37	Slide, Channel (Not a Serviceable Part)
40	Switch Kit, Door (Kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3
41	Insulator, Switch (Top)
42	Plate, Top Switch Mounting
43	Screw
44	Bracket, Primary Switch
45	WPL 309080
47	WPL 310629
48	Screw, 80 x 5/16
49	End Cap, Door
50	Ring, Retaining (2)
54	Latch, Concealed
55	Handle, Cam
56	Ring, ``E``
58	Shield, Light
